11.12
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

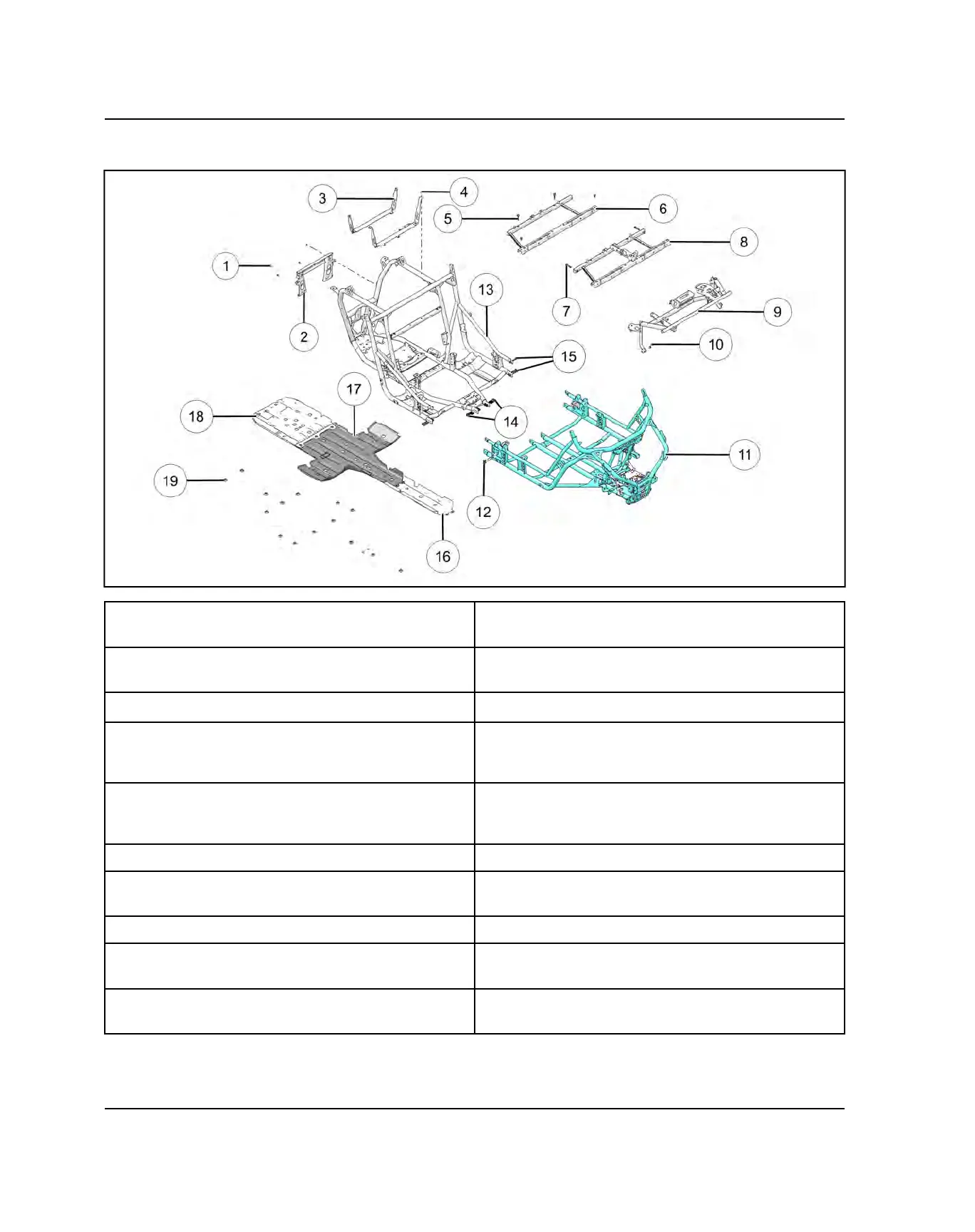

CHASSIS / MAIN FRAME (4 SEAT)
q
Rear Support Fastener
8 ft-lb (11 Nm)
s
Front Frame
w
Rear Support
d
Seat Support Bracket Fastener
30 ft-lbs (41 Nm)
e
Box Support
f
Rear Frame
r
Box Support Fastener
14 ft-lbs (19 Nm)
g
Frame Center Joint Fastener
Step 1: 60 ft-lbs (82 Nm)
Step 2: 100 ft-lbs (149 Nm)
t
Seat Base Fastener
14 ft-lbs (19 Nm)
h
Frame Outer Joint Fastener
Step 1: 35 ft-lbs (47 Nm)
Step 2: 40 ft-lbs (54 Nm)
y
Rear Seat Base
j
Front Skid Plate
u
Front Seat Support Fastener
30 ft-lbs (41 Nm)
k
Middle Skid Plate
i
Front Seat Base
l
Rear Skid Plate
o
Dash Support
1(
Skid Plate Fastener
8 ft-lbs (11 Nm)
a
Dash Support Fastener
14 ft-lbs (19 Nm)
BODY / FRAME
