9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
12.47
WIRING HARNESS REPLACEMENT
1. Remove the seat and disconnect the battery.
2. Remove the front bumper. Refer to Front Fascia page
11.18.
3. Remove the rear bumper. Refer to Rear Fascia page
11.19.

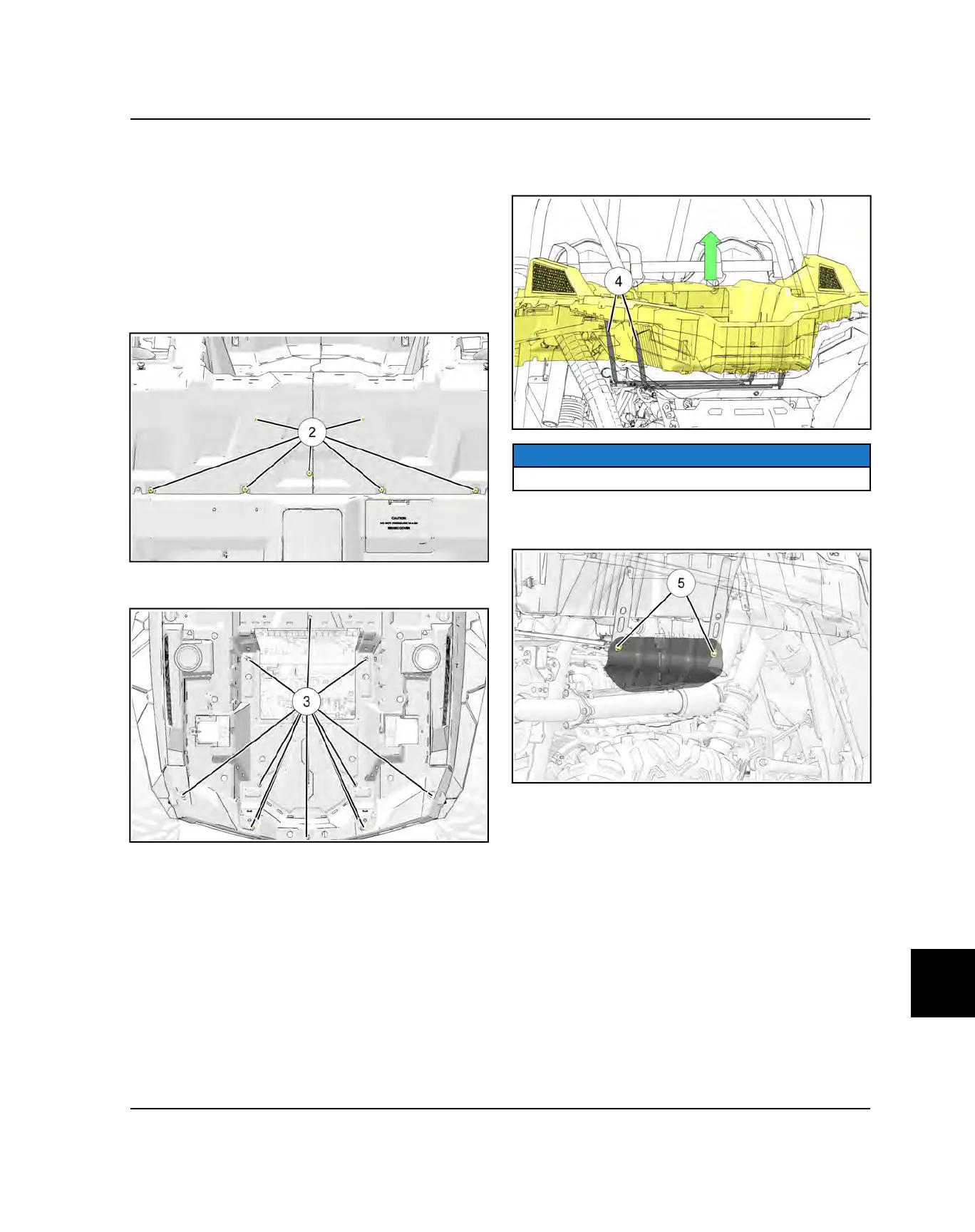

4. Remove the fasteners retaining the rear cargo box.
a. Remove the seven T-40 Torx screws
w
on the
cab side of cargo box.
b. Remove the 15 Torx fasteners
e
and 2 plastic
rivets in the bed of the cargo box.
5. Elevate the cargo box and place a 4x4″ block of wood
between the cargo box and the two support brackets
r
.
NOTE
ROPS does NOT need to be removed or loosened.
6. Remove the fasteners retaining the engine heat
shield on the right rear side. Remove the shield.
7. Remove the upper and lower dash. Refer to Hood /
Front Body page 11.19.
8. Remove the Ride Command display and the SCM.
9. Remove driver seat belt base.
10.Remove the throttle pedal and brake pedal assembly.
11. Remove the center console and floor. Refer to Rocker
Panels, Console, and Floor page 11.23.
12.Remove the seats and seat frames.
13.Remove the ECU cover and disconnect the harness
from the ECU.
ELECTRICAL
