9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
11.11

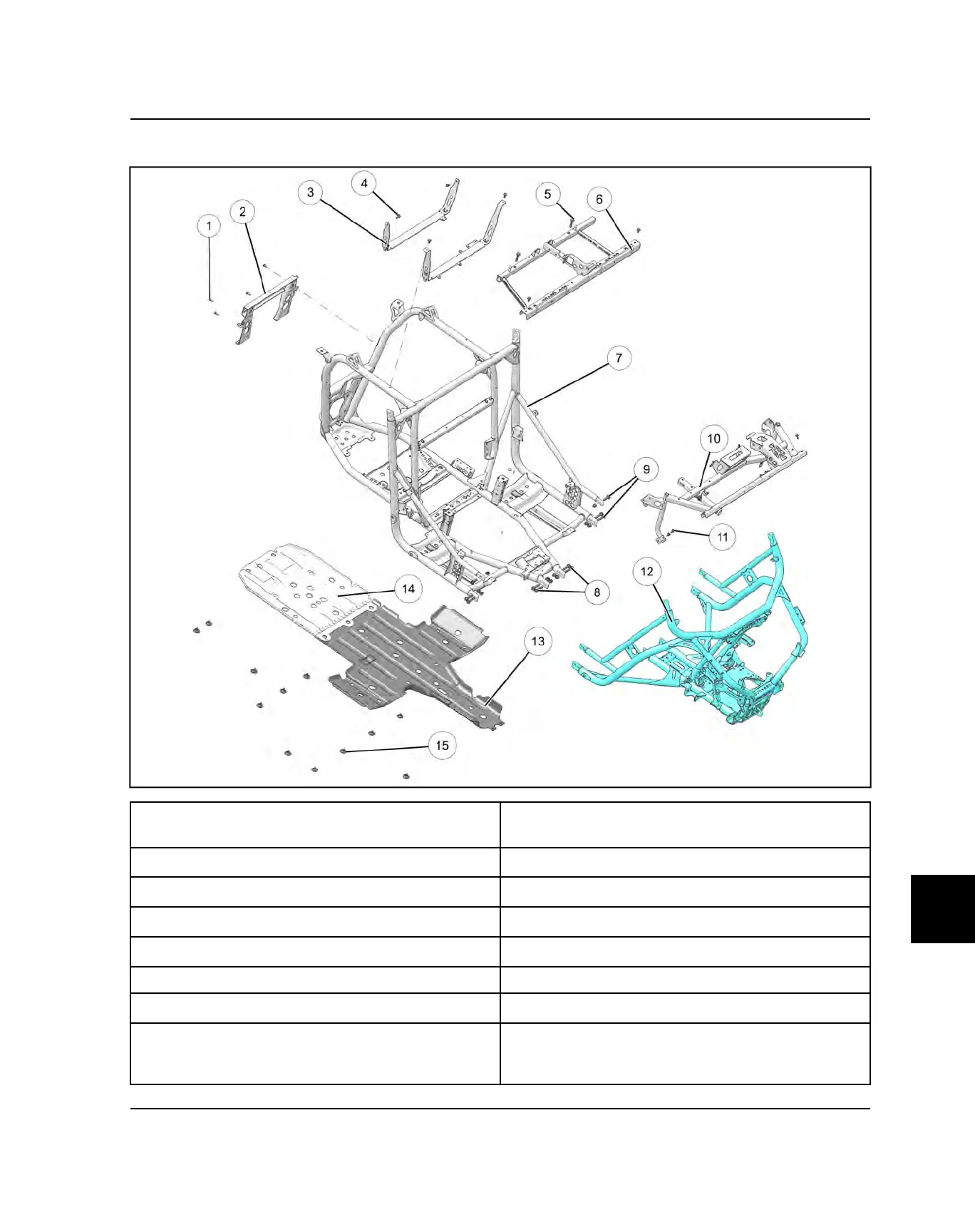

CHASSIS / MAIN FRAME
q
Rear Support Fastener 8 ft-lb (11 Nm)
o
Frame Outer Joint Fastener Step 1: 35 ft-lbs (47 Nm)
Step 2: 40 ft-lbs (54 Nm)
w
Rear Support
a
Dash Support
e
Box Support
s
Dash Support Fastener 14 ft-lbs (19 Nm)
r
Box Support Fastener 14 ft-lbs (19 Nm)
d
Front Frame
t
Seat Base Fastener 14 ft-lbs (19 Nm)
f
Front Skid Plate
y
Seat Base
g
Rear Skid Plate
u
Rear Frame
h
Skid Plate Fastener 8 ft-lbs (11 Nm)
i
Frame Center Joint Fastener Step 1: 60 ft-lbs (82
Nm)
Step 2: 100 ft-lbs (149 Nm)
