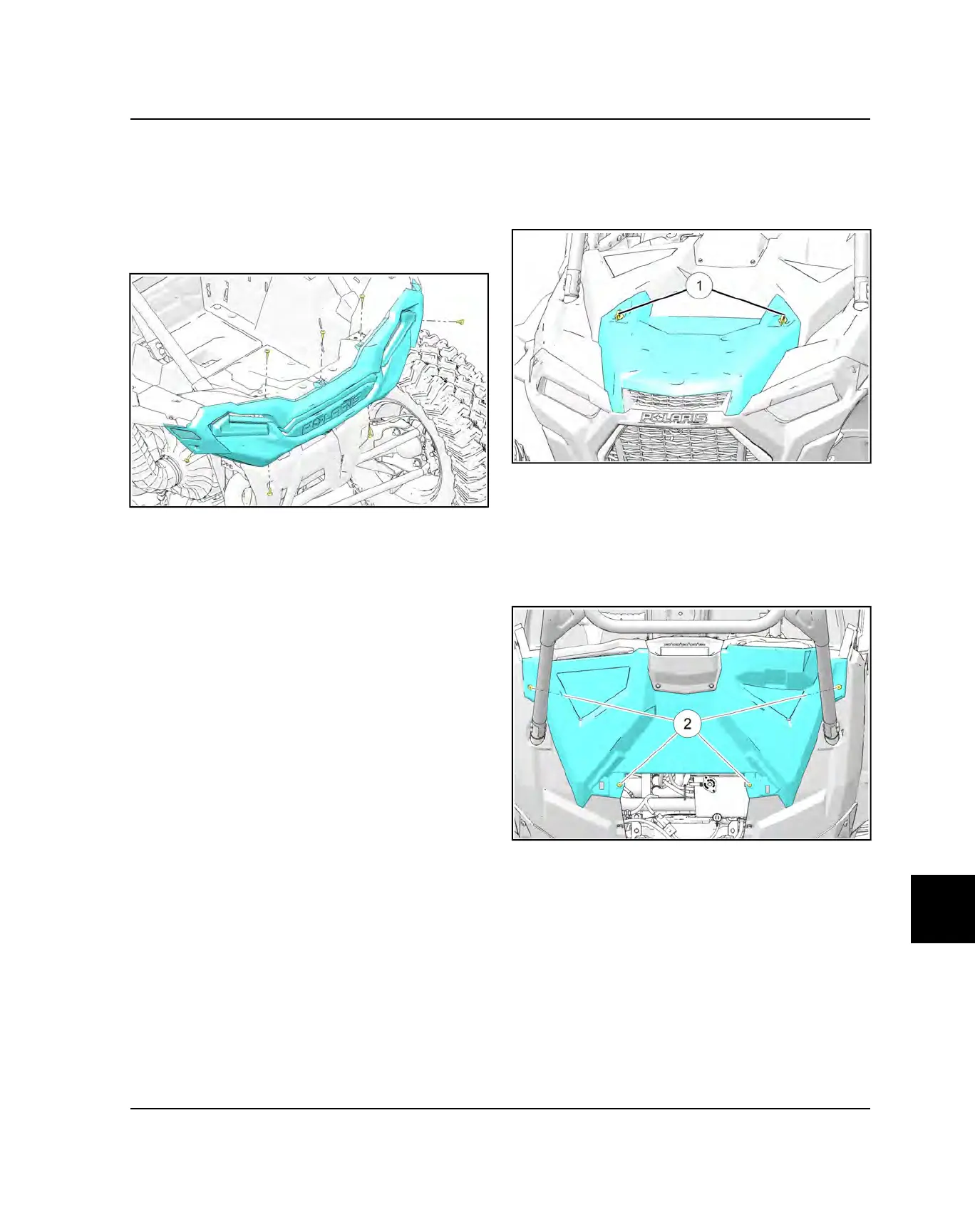

REAR FASCIA
1. Disconnect the harness connectors at the tail lights.
2. Remove the zip ties retaining the harness to the rear
bumper.
3. Remove the seven (four lower and three upper) T-40
Torx screws retaining rear bumper to the cargo box.
4. Remove rear bumper from vehicle.
HOOD / FRONT BODY
HOOD REMOVAL
1. To remove the hood, turn both 1/4 turn latches
q
to
disengage the rear portion of the hood.
2. Lift rear of hood and slide forward to disengage the
front tabs and remove the hood from the vehicle.
DASH REMOVAL
1. Remove the hood as previously described.
2. Remove the four T-40 Torx screws
w
retaining the
upper dash cover between the front fenders
w
.
