11
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
11.23
ROCKER PANELS, CONSOLE AND FLOOR
ROCKER PANEL REMOVAL
1. Remove the push rivets and Torx screws retaining the
rocker panel and remove panel from the vehicle.

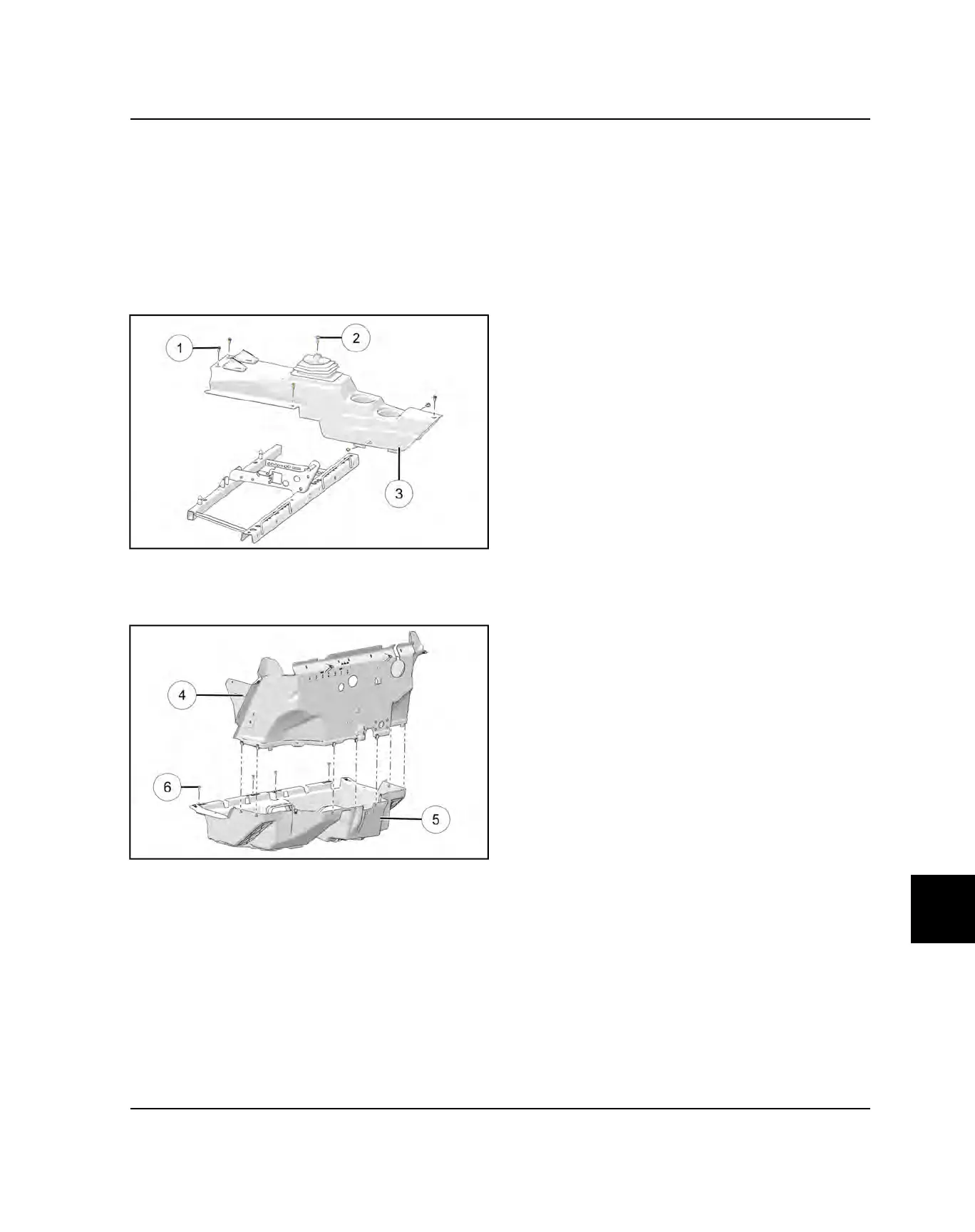

CONSOLE AND LOWER FLOOR REMOVAL
1. Remove both seats and rocker panels.
2. Remove plastic rivets
q
and Torx screws
w
retaining
the console
e
to the floor.
3. Remove shift handle knob and remove the console.
4. Remove Torx screws retaining upper floor
r
to lower
floor
t
.
5. Remove Torx screws
y
retaining rear portion of the
floor and remove lower floor from the vehicle.
