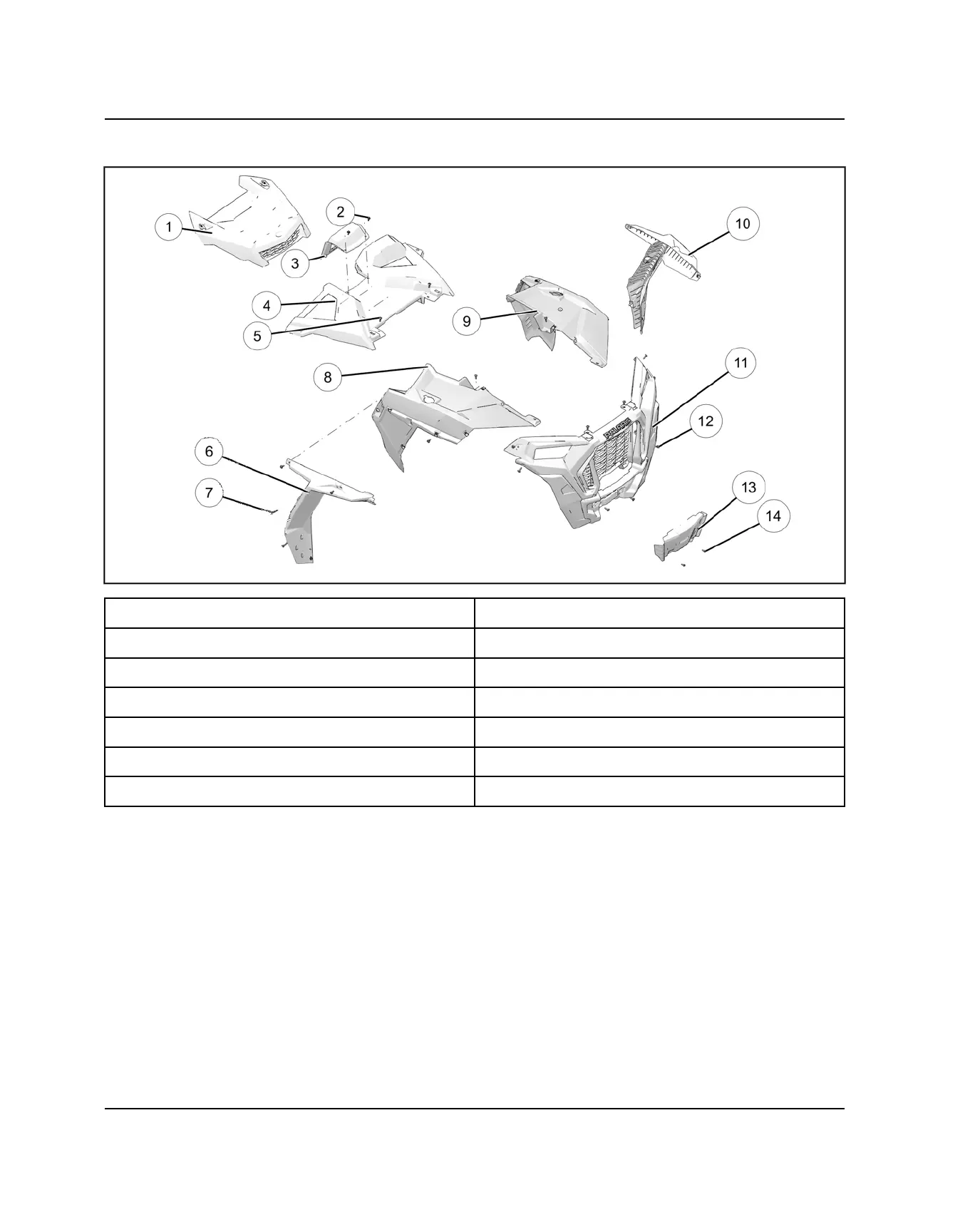

HOOD / FRONT BODY
q
Hood
i
Fender (Right)
w
Push Pin
o
Fender (Left)
e
7” Display Bezel
a
Front Fender Flair (Left)
r
Upper Instrument Panel
s
Front Fascia
t
Instrument Panel Fastener8 ft-lb (11 Nm)
d
Front Fascia Fastener8 ft-lbs (11 Nm)
y
Front Fender Flair (Right)
f
Winch Cover
u
Fender Flair Fastener8 ft-lb (11 Nm)
g
Winch Cover Fasteners22 in-lb ( 3 Nm)
