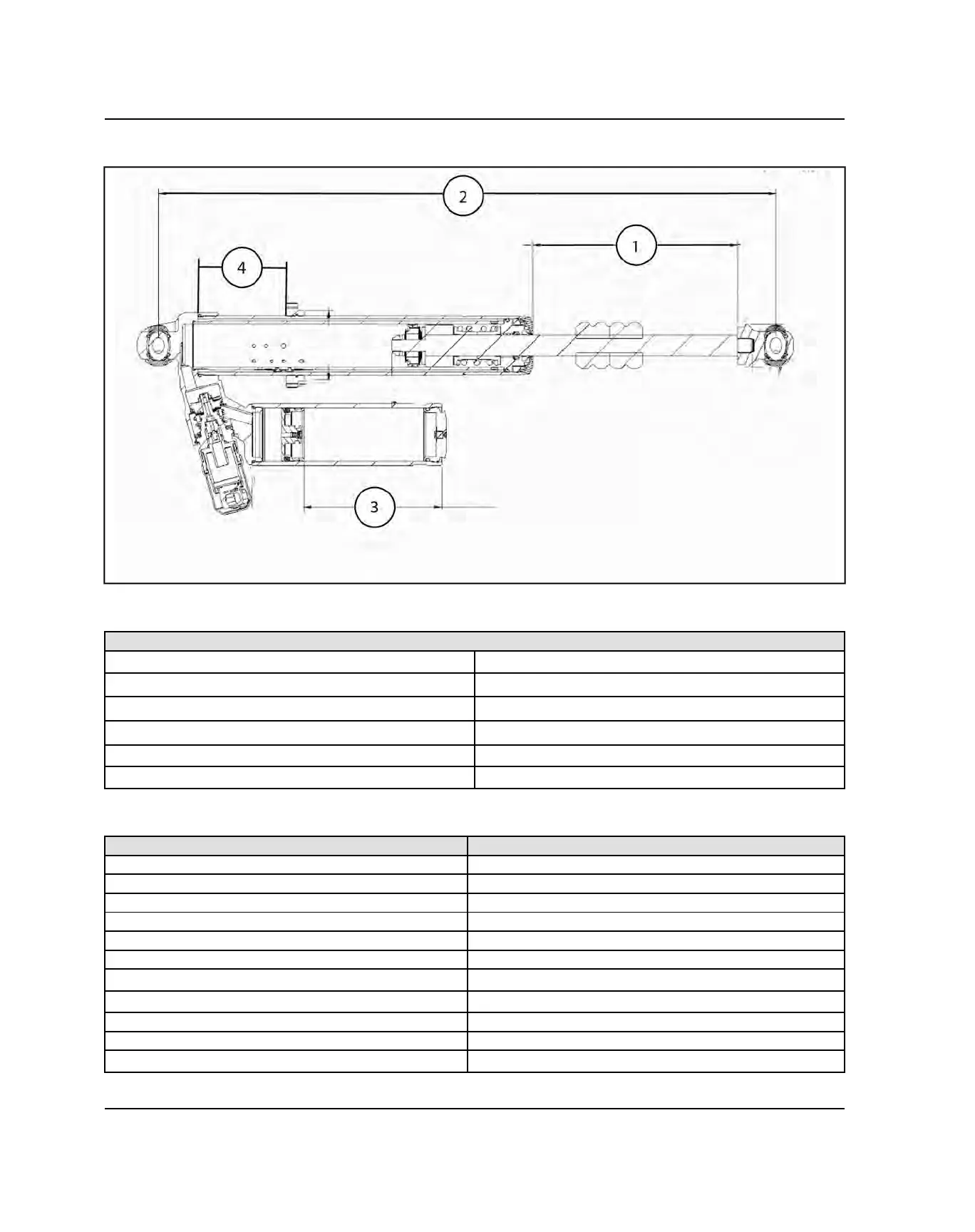

FOX 2.5" SHOCK INFORMATION
Shock Specifications
RZR XP TURBO S
Shock Travel
q
8.64″ (21.95 cm)
Extended Length
w
25.99″ (66.01 cm)
IFP Depth
e
5.80″ (14.73 cm)
Spring Adjustment Setting
r
2.88″ (7.32 cm)
Nitrogen Pressure 100 psi (690 kPa) +/- 5%
Gas Shock Oil
2874124 (qt.)
Shock Valving
COMPRESSION REBOUND
1.600 x 0.006 SB 1.425 x 0.010
1.600 x 0.015 1.350 x 0.010
1.600 x 0.015 1.250 x 0.010
1.600 x 0.015 1.100 x 0.010
1.425 x 0.015 0.950 x 0.010
1.350 x 0.015 0.800 x 0.010
1.250 x 0.015
0.875 x 0.100 (Back Up)
1.100 x 0.015
0.875 x 0.100 (Back Up)
0.950 x 0.015
0.0800 x 0.015
1.570 x 0.128 Top Out
