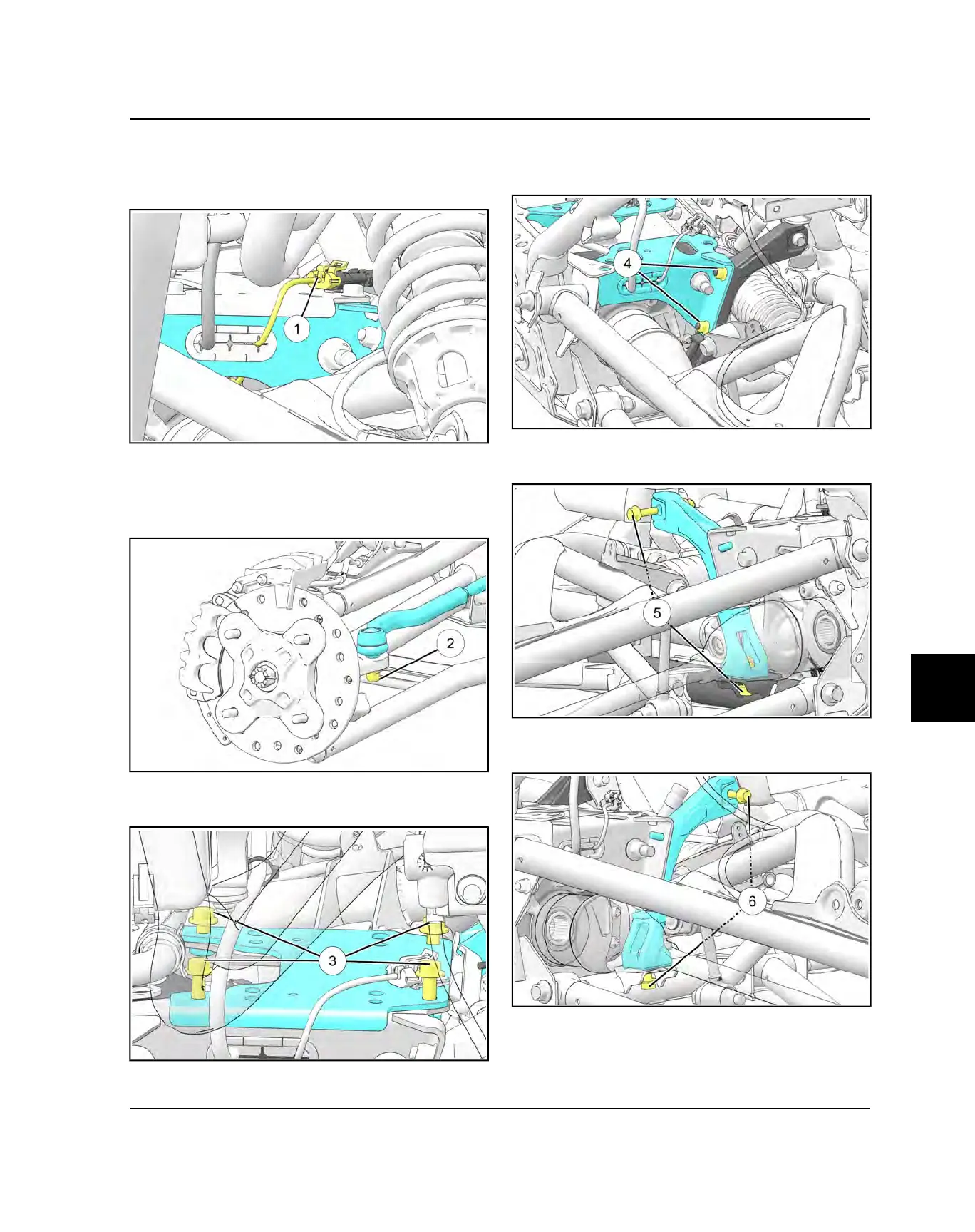

STEERING RACK REMOVAL
1. From the left front wheel well, disconnect front
gearcase wiring harness
q
.
2. Remove both front wheels.
3. Remove left tie rod end nut
w
, and remove tie rod
end joint with a proper pulling tool. Repeat the
procedure for the opposite side of the vehicle.
4. Remove four fasteners
e
securing winch plate to
gearcase bracket.
5. Remove two fasteners
r
securing gearcase bracket
to steering rack mounting cast. Repeat the procedure
for the opposite side of the vehicle.
6. Remove two mounting fasteners
t
from right side
steering rack mount. Remove the mount.
7. Remove two mounting fasteners
y
from left side
steering rack mount. Leave the mount in its position.
