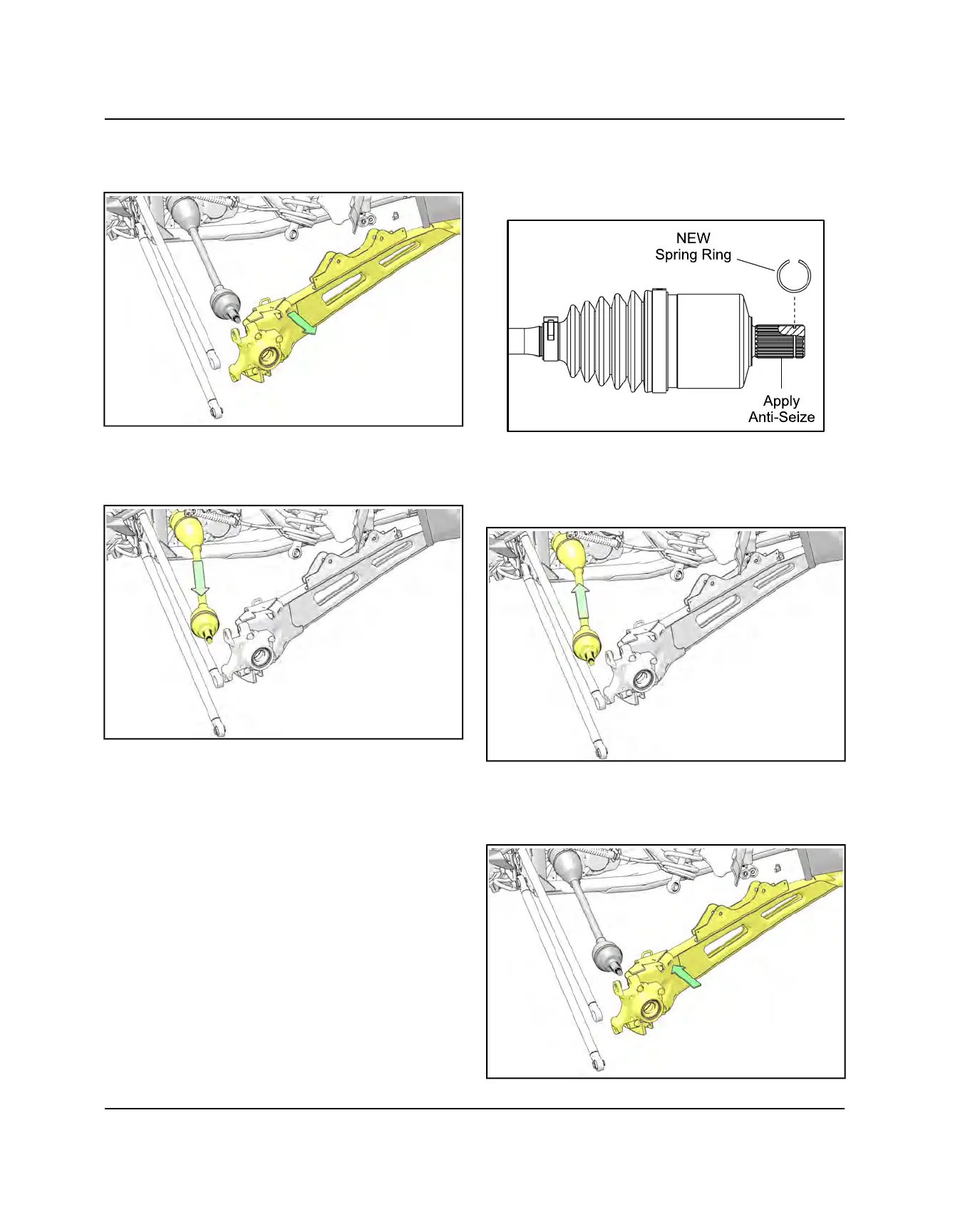

11. Leaving the drive shaft in the transmission, swing the
rear trailing arm assembly outward until it is free from
the rear drive shaft.
12.Lower the trailing arm.
13.With a short, sharp jerk, remove drive shaft from the
transmission splines.
REAR DRIVE SHAFT INSTALLATION
1. Install new spring ring
q
on drive shaft. Apply an
anti-seize compound to the splines
w
.
2. Align splines of drive shaft with transmission splines
and reinstall the drive shaft. Use a rubber mallet to
tap on the outboard end of the drive shaft if
necessary.
3. Swing the rear trailing arm assembly outward and
upward until the rear axle can be inserted into the
bearing carrier. Support the trailing arm from
underneath.
