7
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
7.15

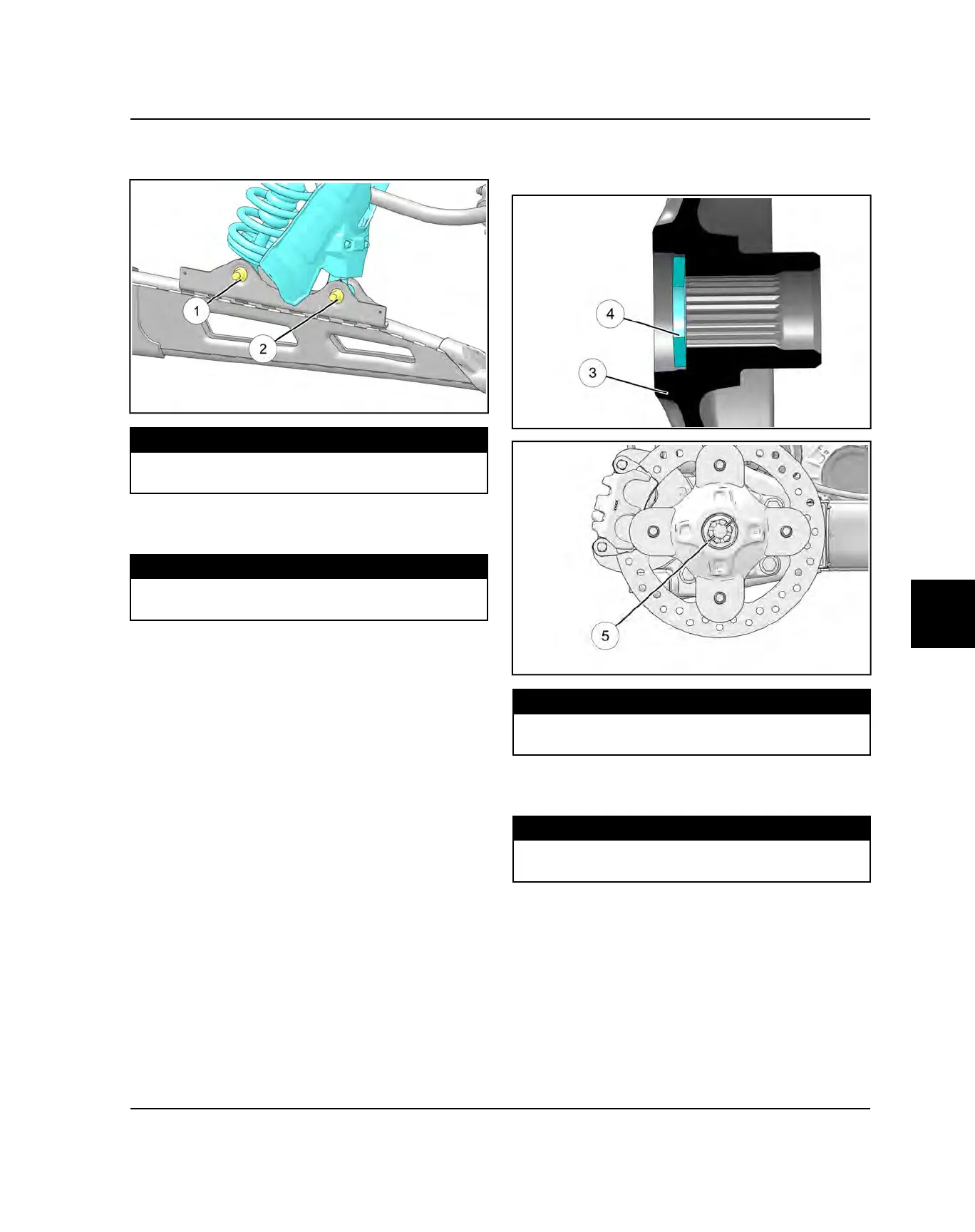

4. Install the stabilizer bar mounting bolt, washer and
new nut
q
. Torque fastener to specification.
TORQUE
Lower Shock Bolt to Trailing Arm:
70 ft-lbs (95 Nm)
5. Install the stabilizer bar mounting bolt, washer and
new nut
w
. Torque fastener to specification.
TORQUE
Stabilizer Bar Linkage:
42 ft-lbs (57 Nm)
6. Apply Anti-Seize to drive shaft axle splines.
7. Install rear wheel hub assembly
e
. Install the cone
washer
r
and castle nut. Torque castle nut to
specification. Install new cotter pin
t
.
TORQUE
Rear Hub Castle Nut:
180 ft-lbs (244 Nm)
8. Install the radius rod bolts, washers and new nuts.
Torque fasteners to specification.
TORQUE
Radius Rods to Bearing Carrier:
50 ft-lb (68 Nm) + 45°
FINAL DRIVE
