9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
7.27

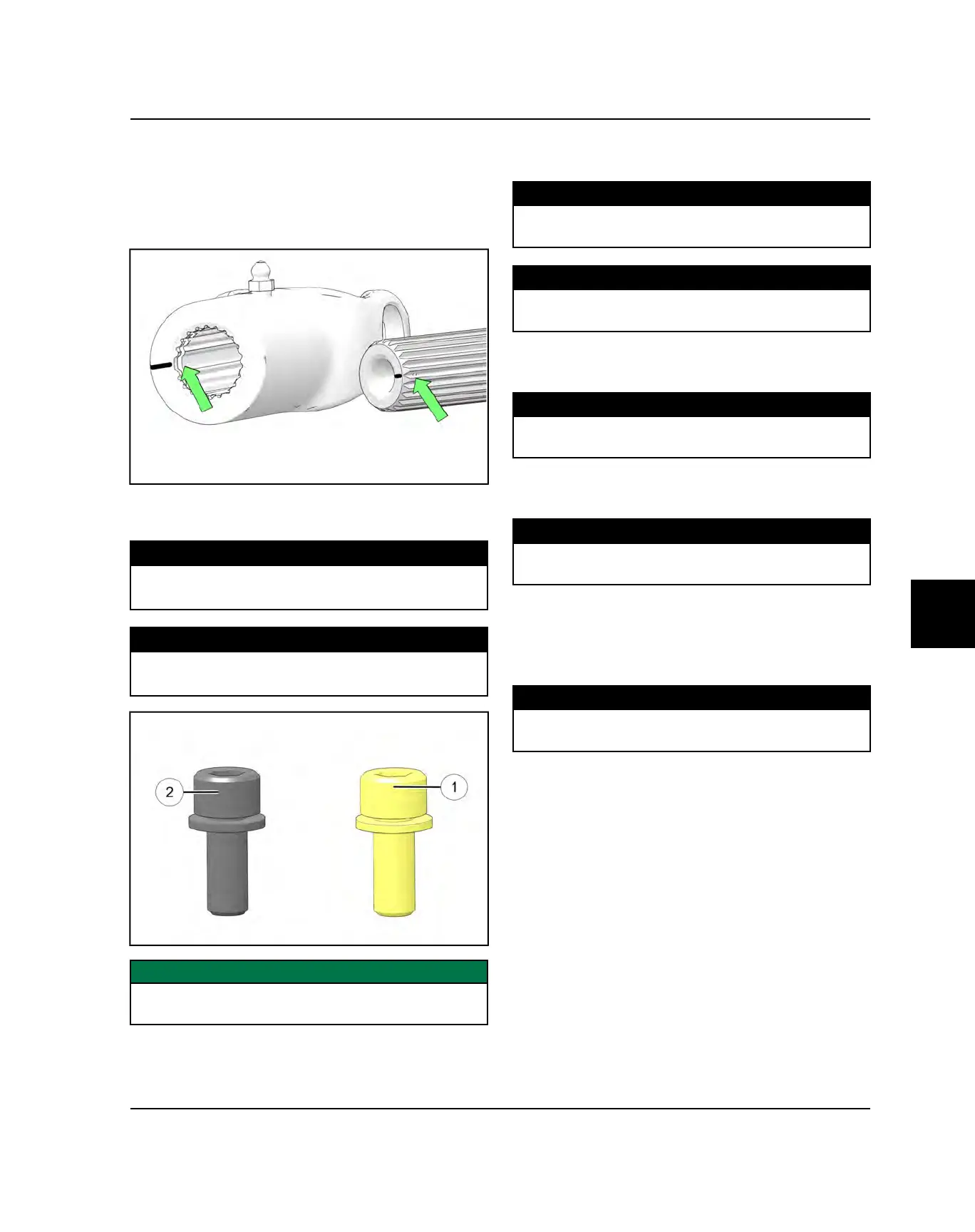

PROP SHAFT INSTALLATION
1. Install front prop shaft first and properly align the hole
in the front yoke with the input shaft hole.
2. Install the rear prop shaft from the bottom. Line up the
master spline on the front prop shaft to the rear shaft.
3. Install the rear prop shaft coupler on the transmission
output shaft. Torque new fasteners to specification.
TORQUE
Rear Prop Shaft Coupler Fasteners (Gold in Color)
q
:
22 ft-lb (30 ft-lb)
TORQUE
Rear Prop Shaft Coupler Fasteners (Black in Color)
w
:
19 ft-lbs (26 Nm)
IMPORTANT
The coupler fasteners have patch lock on the threads
and must be replaced any time they are removed.
4. Install the isolator mounting fasteners. Torque
fasteners to specification.
TORQUE
Prop Shaft Isolator Bracket Fasteners (Front):
33 ft-lbs (45 Nm)
TORQUE
Prop Shaft Isolator Bracket Fasteners (Rear):
8 ft-lbs (11 Nm)
5. Install roll hoop fasteners. Torque fasteners to
specification.
TORQUE
Roll Hoop Fasteners:
13 ft-lbs (18 Nm)
6. Install front and rear skid plates. Torque fasteners to
specification.
TORQUE
Skid Plate Fasteners:
8 ft-lbs (11 Nm)
7. Install new spring pin in prop shaft to the front
gearcase.
8. Install the center console. Torque fasteners to
specification.
TORQUE
Center Console Torx Fasteners:
8 ft-lb (11 Nm)
FINAL DRIVE
