FRONT GEARCASE VENT LINE ROUTING

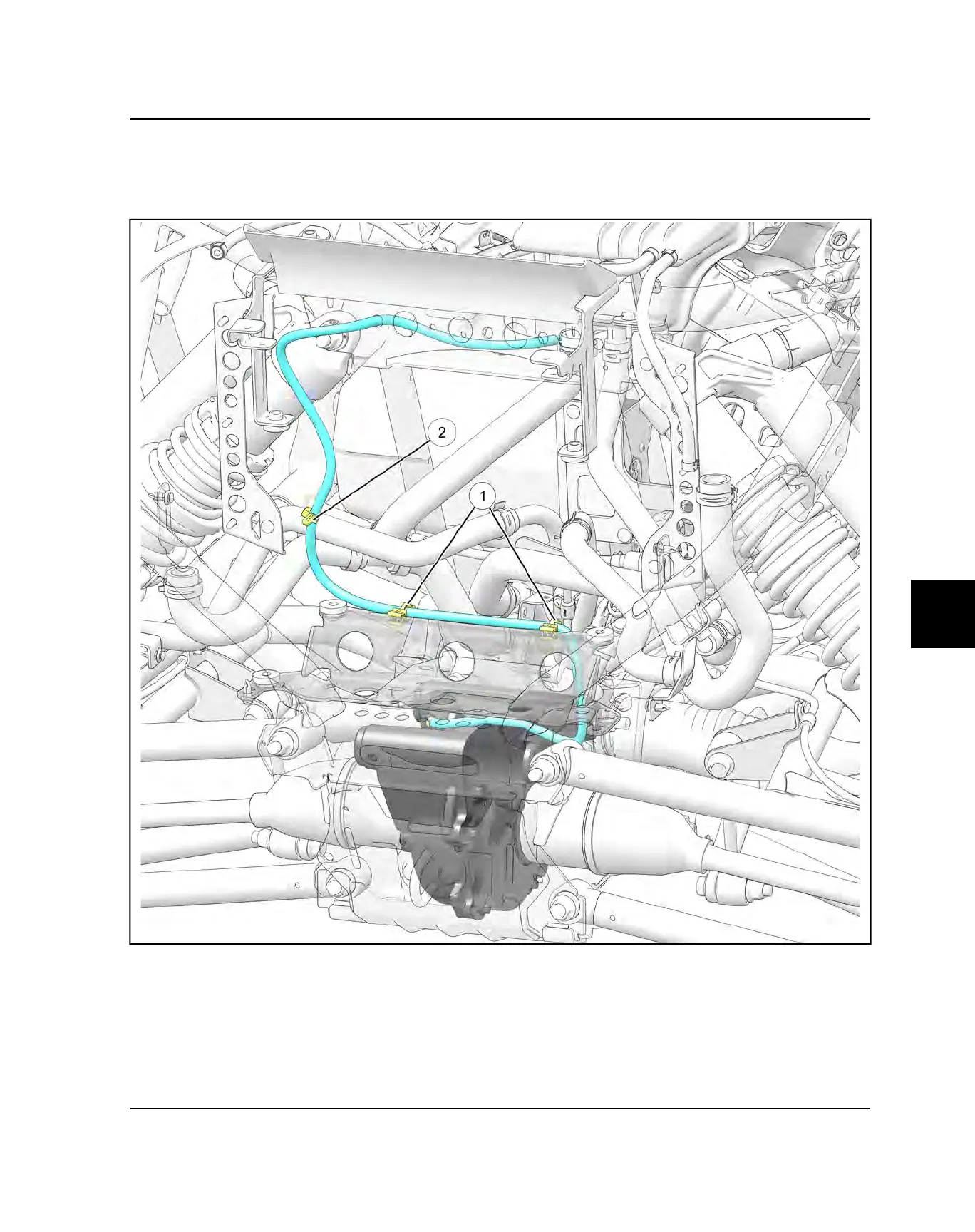

The front gearcase vent line routes to the right side of the vehicle through a grommet on the front gearcase bracket. It
is then retained with two cable tie edge clips
q
. The vent line continues upward where it is retained with a routing clip
that is attached to the radiator fan shroud. The line then terminates into and open section of the frame.
