8.18
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

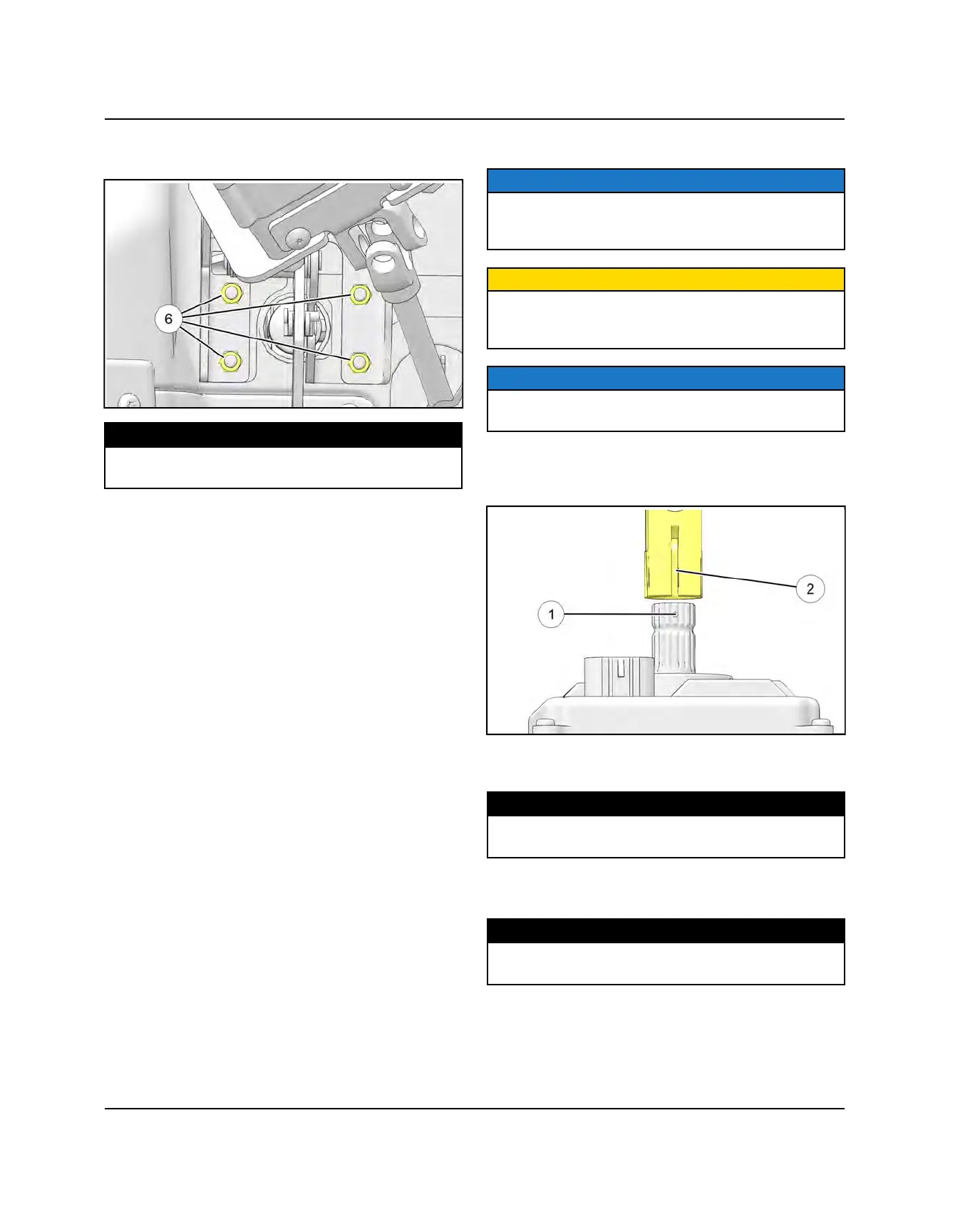

5. Torque the four mount bracket nuts
y
to
specification.
TORQUE
Power Steering Unit Mount Bracket Nuts:
18 ft-lb (24 Nm)
6. Proceed to Upper Steering Shaft Installation page .
7. Vehicles equipped with Dynamix suspension having a
steering shaft, EPS unit, steering rack, or tie rod
removed/adjusted/disconnected MUST have Steering
Angle Sensor Centering procedure performed once
everything is reinstalled. Refer to Steering Angle
Sensor Centering (Dynamix) page 12.18.
UPPER STEERING SHAFT INSTALLATION
NOTE
If steering wheel was removed, follow this procedure to
ensure the upper steering shaft is properly positioned
on the power steering stub shaft.
CAUTION
Striking the steering wheel or steering shaft while
installed in the vehicle can permanently damage the
EPS unit and cause a Power Steering Fault.
NOTE
Be sure upper steering shaft hardware is positioned
correctly.
1. Install the upper steering shaft and align the skip-
tooth spline
q
on the power steering stub shaft with
the opening
w
in the upper steering shaft.
2. Install the steering column asm and torque fasteners
to specification.
TORQUE
Steering Column Asm Fasteners:
40 ft-lb (54 Nm)
3. Install the tilt shock and torque fastener to
specification.
TORQUE
Tilt Shock Fastener:
7 ft-lb (10 Nm)
STEERING / SUSPENSION
