8
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
8.17

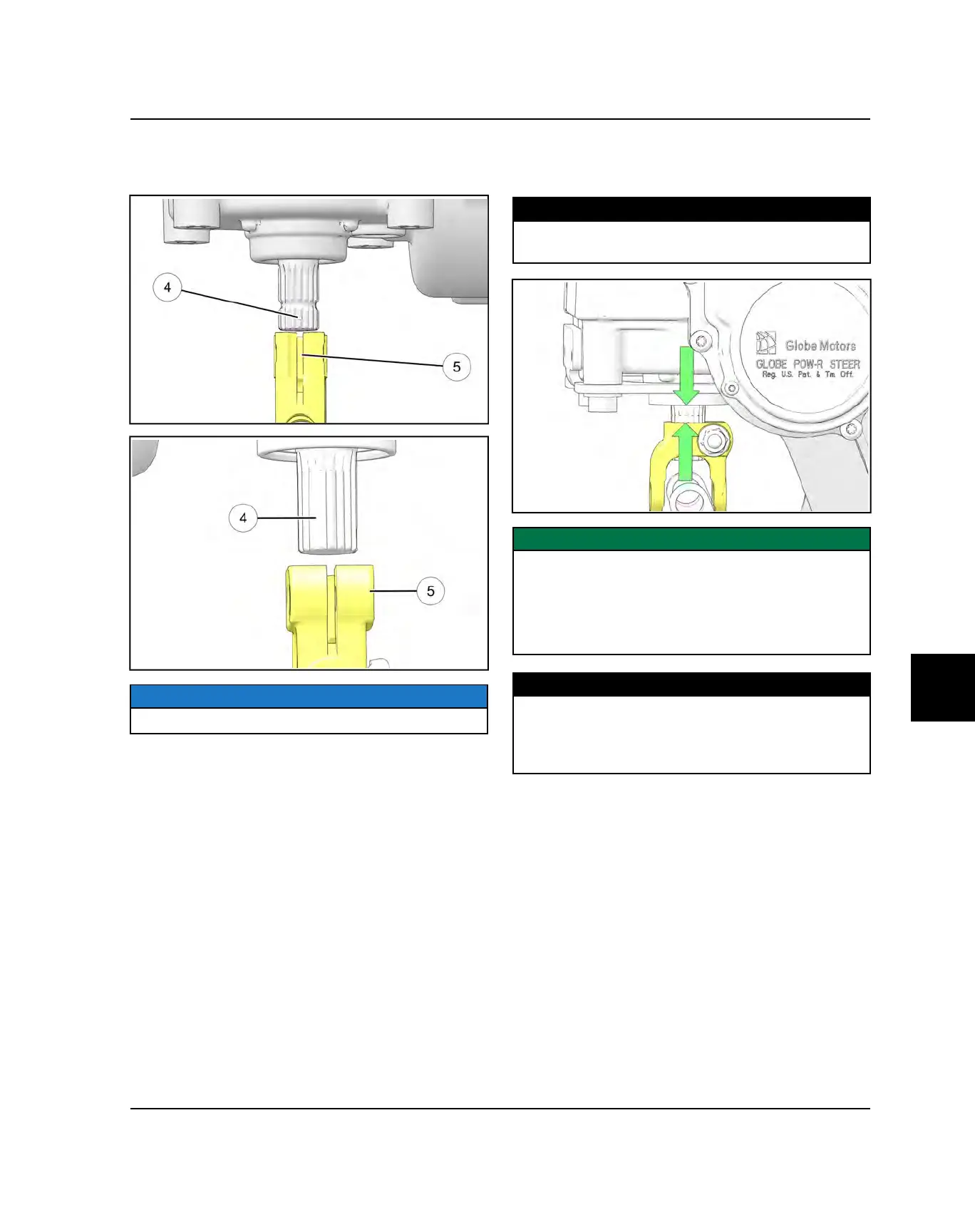

2. Install the power steering unit into the vehicle and
align the skip-tooth spline on the power steering stub
shaft with the opening in the lower steering shaft.
NOTICE
Stub shafts with and without groove shown.
3. Place the power steering mount bracket over the top
of the brake pedal mount studs and finger tighten the
four nuts.
4. Position the lower steering shaft on the power
steering unit stub shaft and install new fasteners.
Torque to specification.
TORQUE
Steering Shaft to EPS Unit Pinch Bolt:
25 ft-lb (34 Nm)
IMPORTANT
To ensure the steering shaft splines are fully engaged
to the EPS unit, inspect the opening using a no-go
gauge. The gauge must not pass between the EPS unit
and steering shaft. If the steering shaft fails this test,
loosen pinch bolt, re-adjust steering shaft, re-torque
pinch bolt, and repeat inspection.
MEASUREMENT
Shaft w/groove:
0.55” (14 mm)
Shaft w/o groove:
0.63” (16 mm)
STEERING / SUSPENSION
