11.4
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

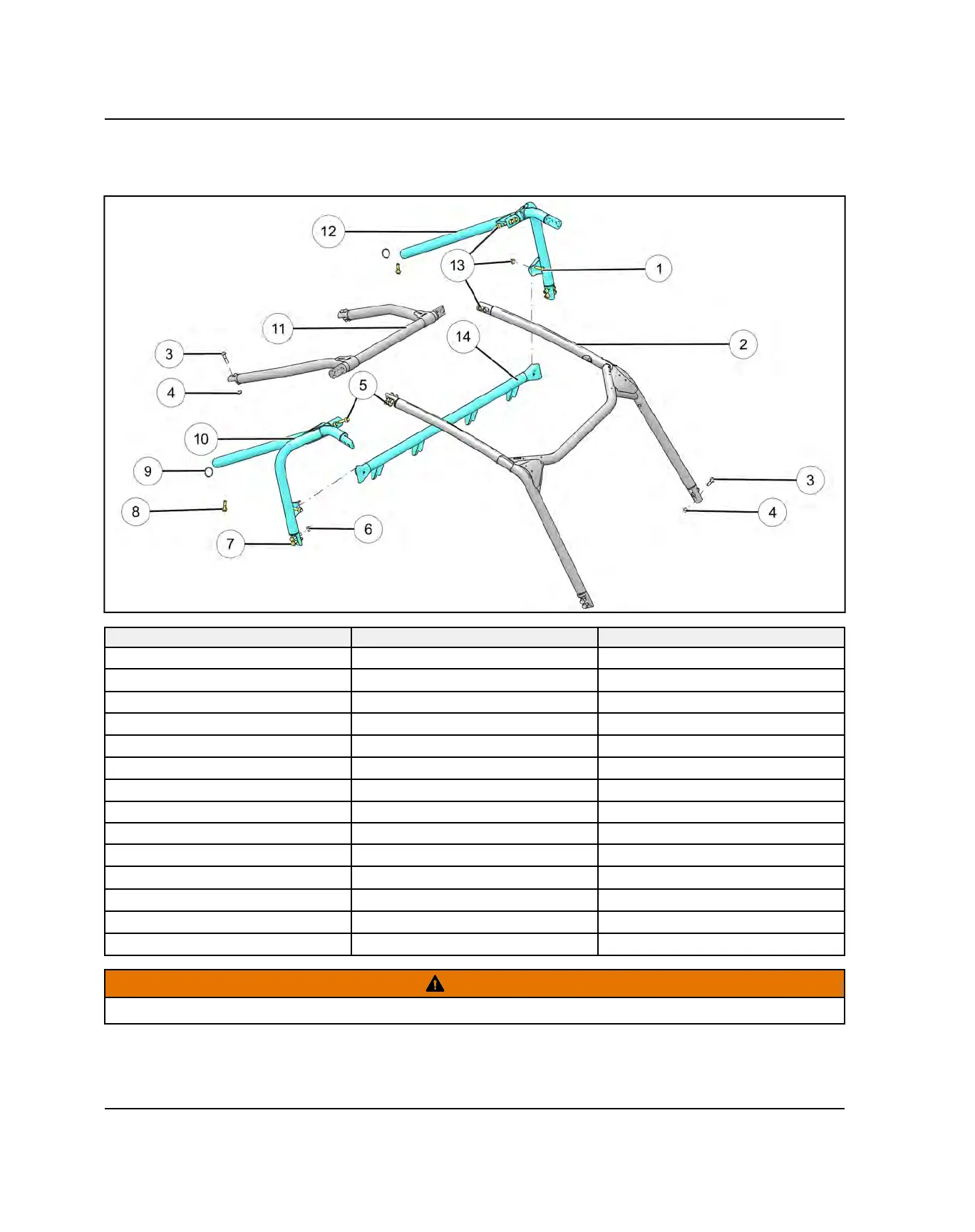

BODY ASSEMBLY VIEWS
CAB FRAME ASSEMBLY
REF
DESCRIPTION TORQUE
q
SCR-HXFL-M10X1.5X75 40 ft-lbs (54 Nm)
w
WELD-ROPS, FRONT
NA
e
SCR-HXFL-M10X1.5X45 40 ft-lbs (54 Nm)
r
NUT-HEX-M10X1.5
40 ft-lbs (54 Nm)
t
SCR-HXFL-M10X1.5X55 40 ft-lbs (54 Nm)
y
NUT-M10X1.25, FLG, NYLOC 40 ft-lbs (54 Nm)
u
SCR-HXFL-M10X1.25X55 40 ft-lbs (54 Nm)
i
SCR-HXFL-M10X1.5X45 35 ft-lbs (47 Nm)
o
O-RING
NA
a
WELD-ROPS, REAR, RH
NA
s
WELD-ROPS, REAR, C
NA
d
WELD-ROPS, REAR, LH
NA
f
NUT-HXFL-M10X1.5 40 ft-lbs (54 Nm)
g
WELD-ROPS, MNT, SEATBELT
NA
WARNING
The ROPS/roof should only be serviced by a certified Polaris dealer.
BODY / FRAME
