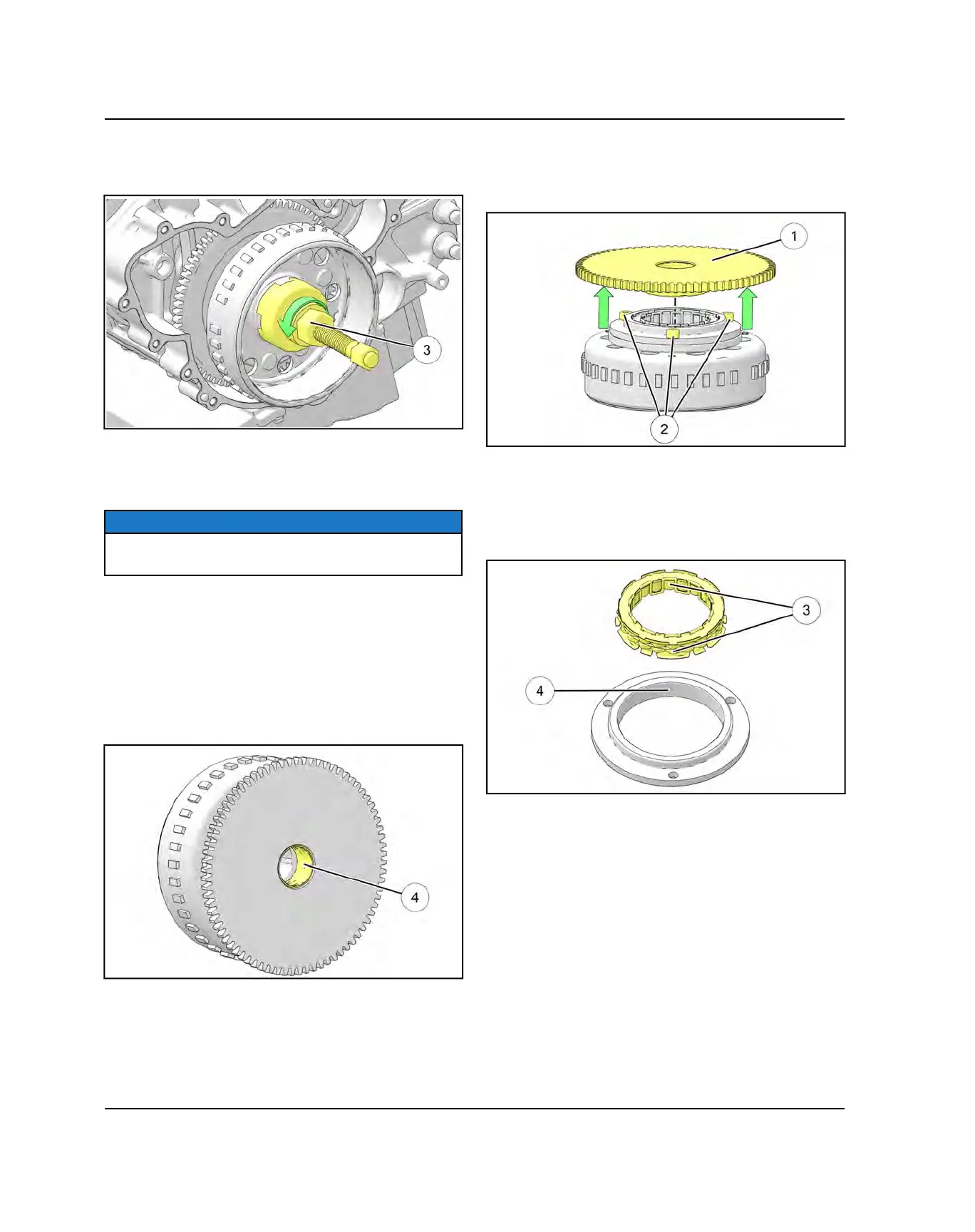

5. Fully install Flywheel Puller PA-49316
e
on the
threads of the flywheel (left hand thread - turn
flywheel puller counterclockwise to install).
6. Hold puller body and tighten the center bolt
w
to
remove the flywheel.
Starter One-Way Clutch Inspection
NOTE
The starter one-way clutch can be serviced with the
engine installed in the chassis.
7. Place flywheel on a work bench with the one-way
clutch facing up. Grasp clutch gear and rotate
clockwise. It should turn smoothly without binding.
8. Rotate one-way gear counterclockwise. The gear
should immediately lock in position and not slip.
9. Inspect the one-way gear bushing
r
for wear or
galling. If service is required, refer to Starter One-way
Clutch Disassembly page 3.70.
STARTER ONE-WAY CLUTCH
DISASSEMBLY
1. Lift up to remove starter one-way gear
q
.
2. Remove the three one-way clutch retaining screws
w
.
3. Remove the one-way clutch and inspect both sides of
drive rollers
e
. Inspect the roller contact surface
r
inside the hub for wear, damage or uneven surface.
