3.16
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

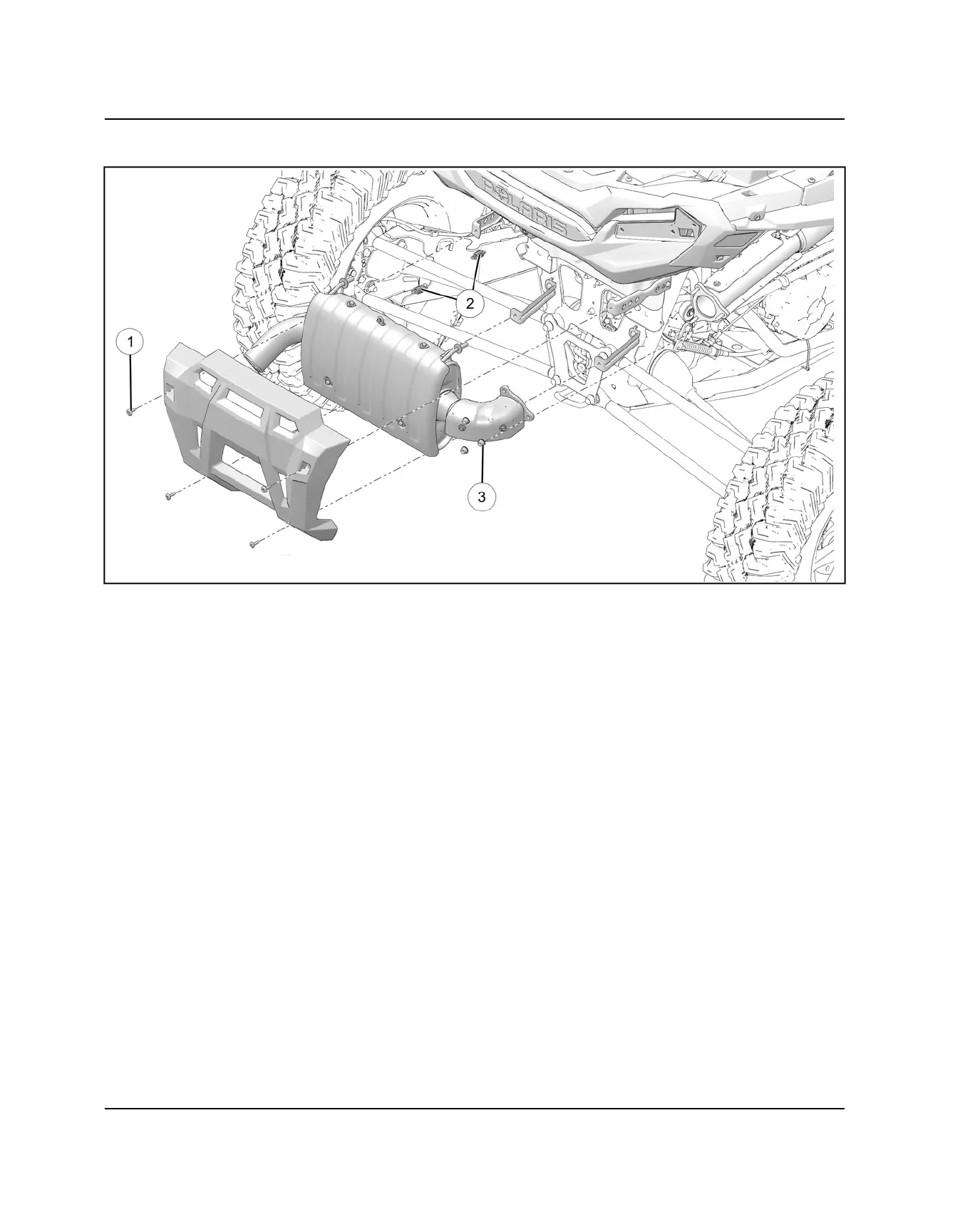

MUFFLER REMOVAL
1. Remove the four fasteners
q
retaining the muffler cover / rear fascia .
2. Remove the two muffler springs
w
.
3. Remove the three fasteners
e
retaining the muffler to the exhaust pipe.
4. Pull muffler towards the rear of the vehicle to remove it from the mounting grommets.
ENGINE / COOLING SYSTEM
