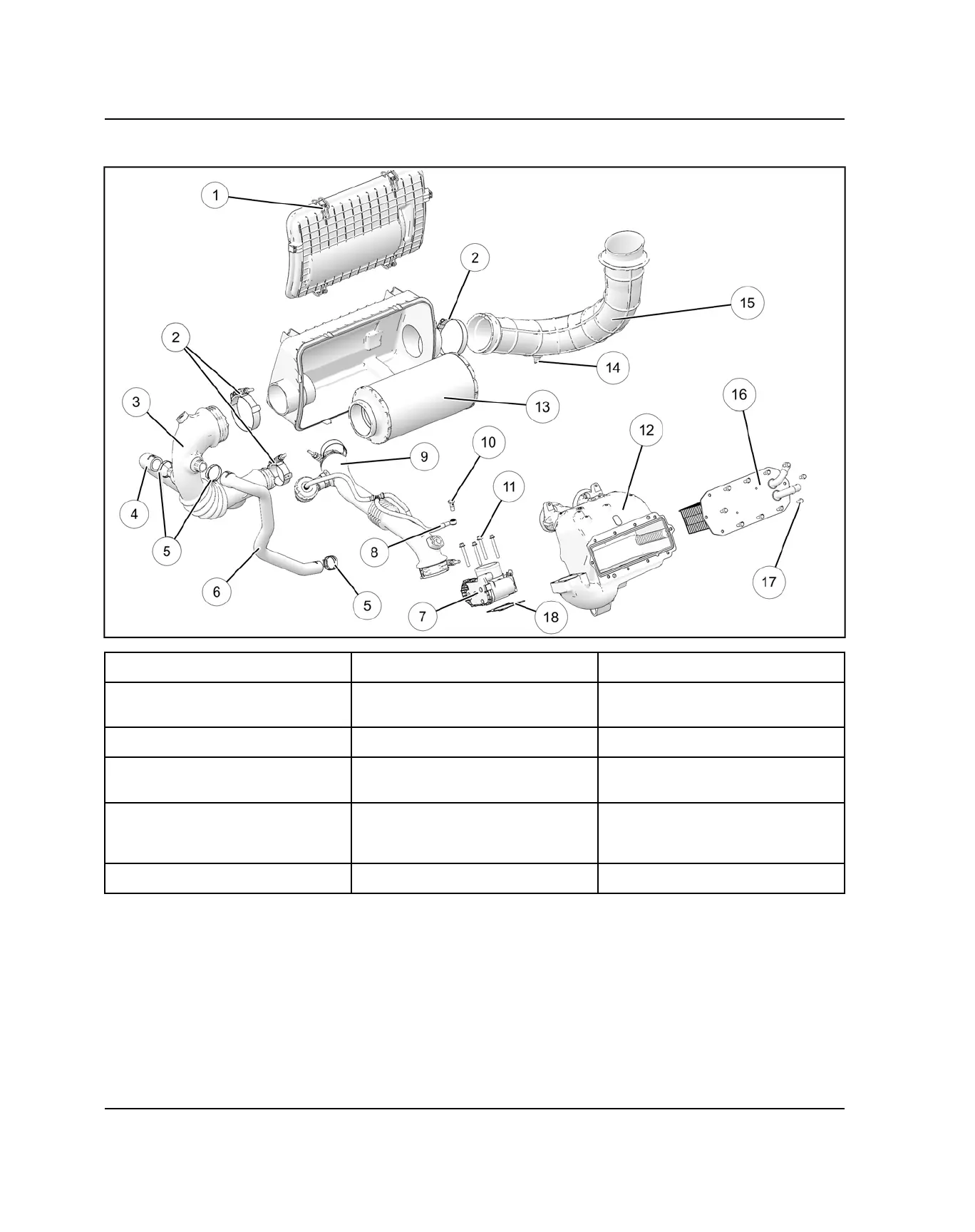

ENGINE AIR INTAKE ASSEMBLY VIEW
q
Air Box Latch
u
Throttle Body
f
Air Filter
w
Intake Clamp
35 in-lb (4 Nm)
i
Manifold Pressure Reference
Hose
g
Intake Drain
e
Intake Air Duct o
Charge Air Duct
h
Air Box Inlet Hose
r
Blow Off Valve Vent Hose
a
Banjo Bolt
7 ft-lb (10 Nm)
j
Charge Air Cooler Cover
t
Oetiker Clamp
s
Throttle Body Bolts
7 ft-lb (10 Nm)
k
Cover Bolts
Torque in sequence to 7 ft-lb (10
Nm)
y
Engine Breather Hose
d
Intake Manifold
l
Throttle Body Gasket
