BRAKE PEDAL
BRAKE PEDAL REMOVAL

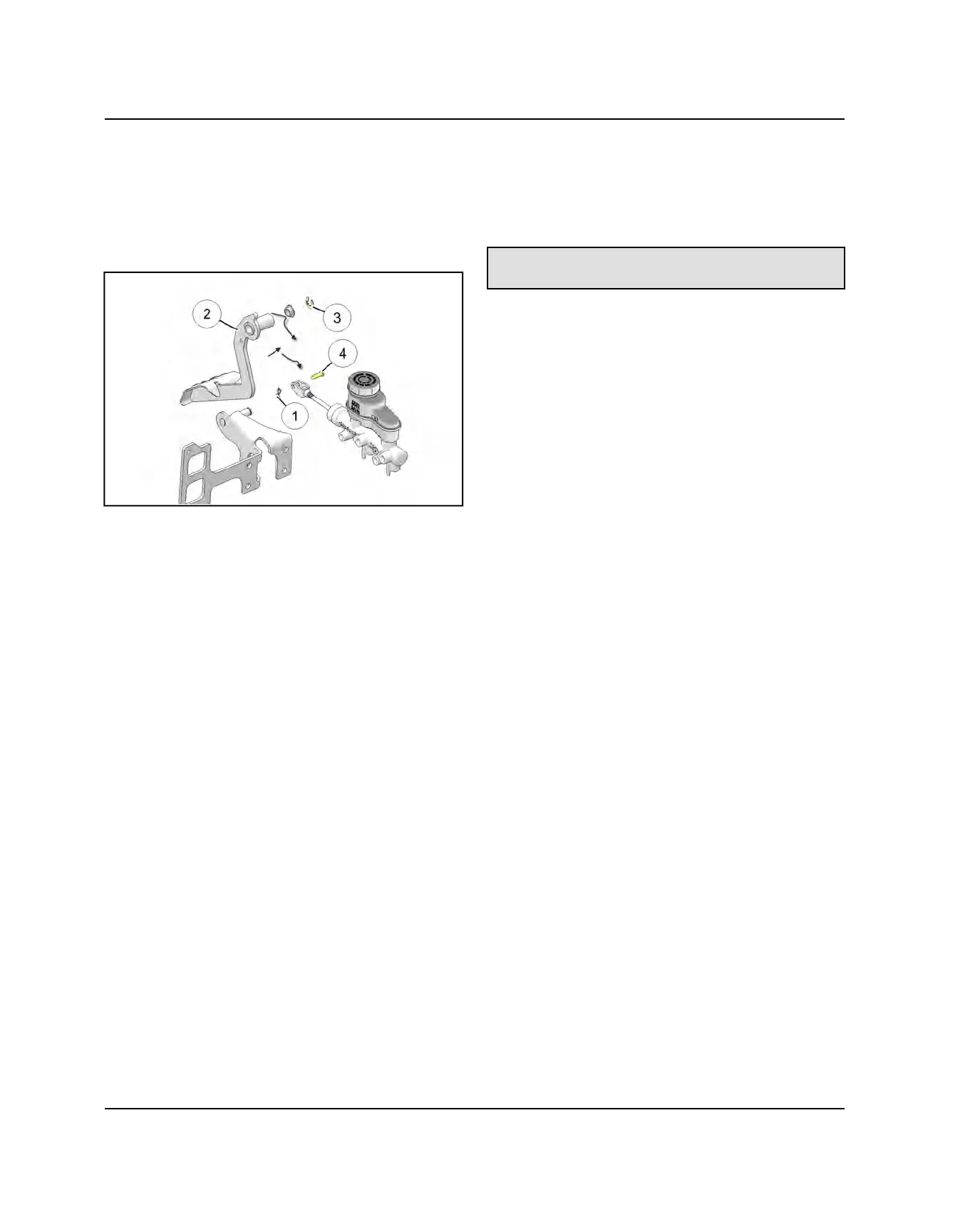

1. Locate the brake pedal lever
w
and remove the clip
q
and master cylinder clevis pin
r
.
2. Remove the E-clip
e
from the pedal mount and
remove the brake pedal lever
w
from the vehicle.
BRAKE PEDAL INSTALLATION
1. Reverse the “Removal” steps to install brake pedal
lever. Compare brake pedal free-play to
specification.
Brake Pedal Free-play:
0.090″ (2.28 mm)
