9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
12.29

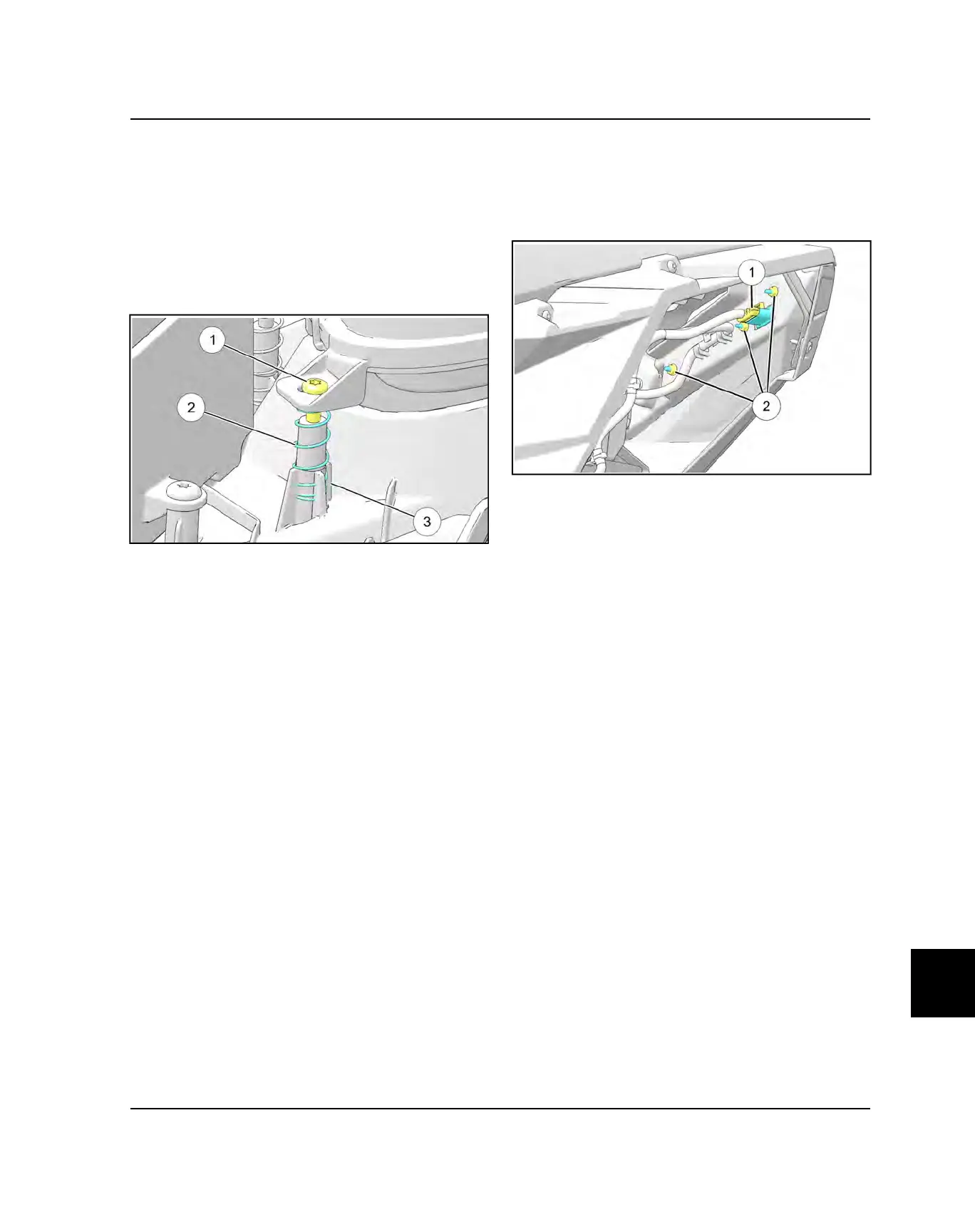

HEADLAMP INSTALLATION
1. Install the headlamp adjustment springs onto the
front bumper mounting bosses.
2. Insert the three T-25 headlamp mounting screws into
the headlamp assembly mounting holes.
3. Maneuver the headlamp assembly into position. Be
sure all three headlamp springs
w
and mounting
screws
q
are properly aligned with mounting bosses
e
on the front bumper.
4. Fully tighten all three headlamp screws until the
headlamp assembly is fully seated. Back headlamp
mounting screws off 1/8” to 1/4” (2-3 turns).
5. Install the front bumper as shown in Chapter 5 if
previously removed.
6. Connect headlamp electrical connector to the
headlamp assembly.
7. Perform the “Headlight Adjustment” procedure as
shown in this chapter.
TAILLIGHT REPLACEMENT
Before replacing the taillight(s), use a digital multi-meter
to test the harness to ensure the lamp is receiving 12
volts and that a ground path is present.
1. Disconnect the wire harness
q
.
2. While holding the taillight assembly, remove the three
nuts
w
retaining the taillight assembly and remove it
from the rear fascia.
DASH LIGHT
The LED light will remain ON for approximately 30
seconds after key has been switched to the OFF
position.
ELECTRICAL
