9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
9.15

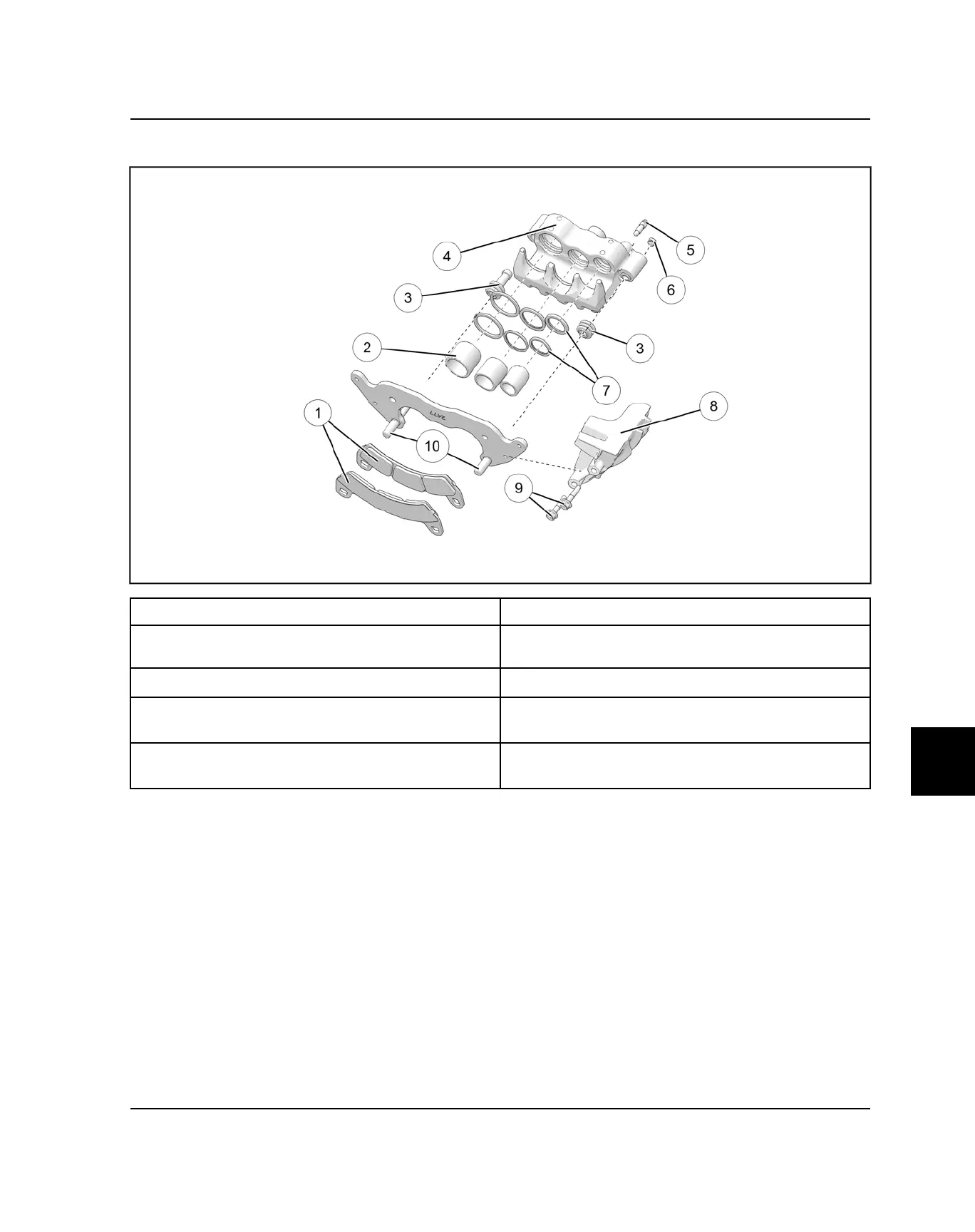

FRONT CALIPER ASSEMBLY VIEW
q
Brake Pads
y
Set Screw
w
Pistons
lubricate with DOT 4 Brake Fluid
u
Piston O-Rings
lubricate with DOT 4 Brake Fluid
e
Boots
i
Brake Scraper
r
Caliper Assembly
o
Scraper Bolts
48 in-lb (5 Nm)
t
Bleeder Screw
48 in-lb (5 Nm)
a
Mount Pins
apply Silicone Grease on install
BRAKE SYSTEM
