9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
3.19

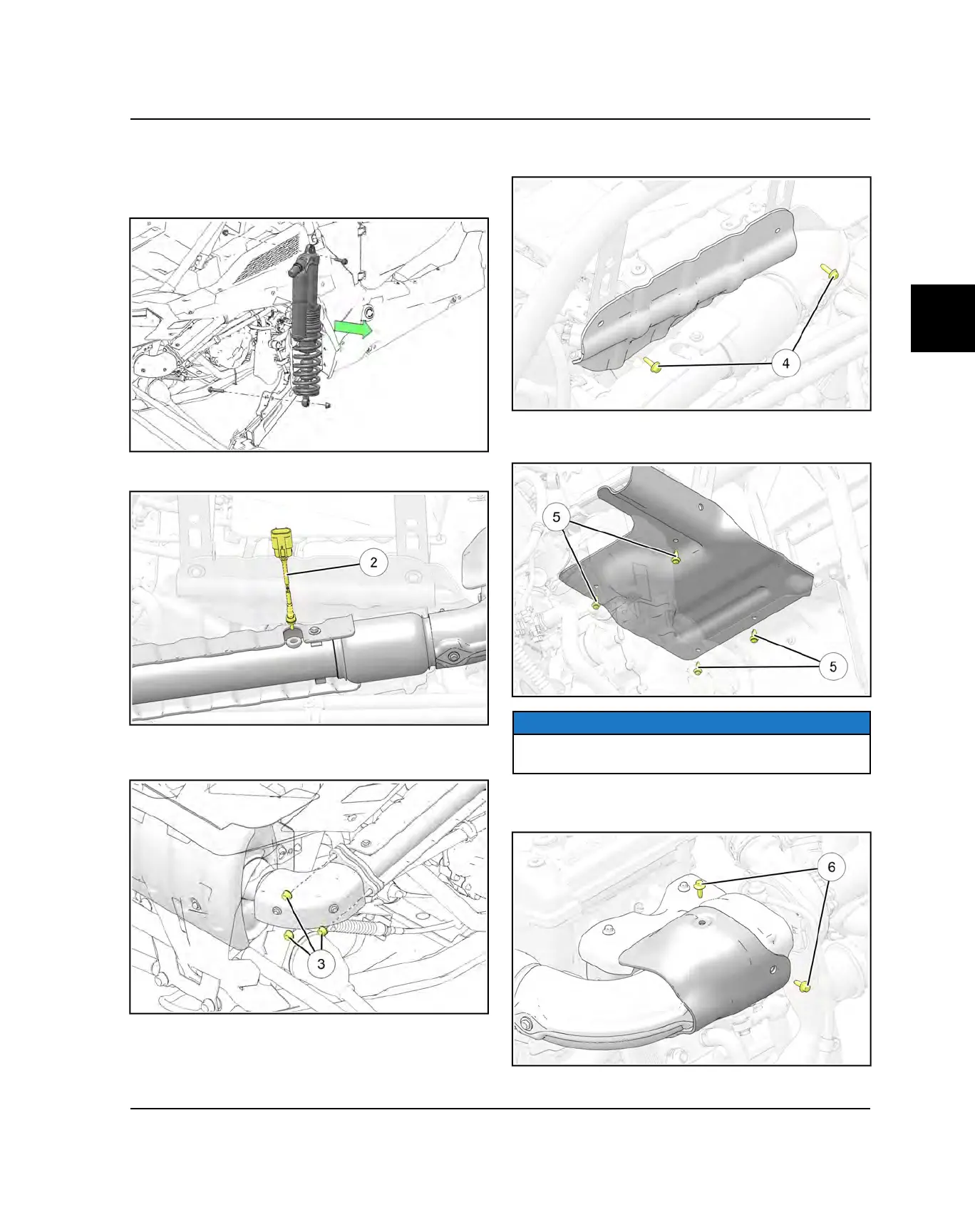

HEAD PIPE / TURBO REMOVAL
1. Lift and secure the vehicle.
2. Remove the right rear shock assembly.
3. Disconnect and remove the oxygen sensor
w
.
4. Remove the three fasteners
e
retaining the muffler to
the exhaust pipe.
5. Remove two fasteners
r
retaining the engine heat
shield above O2 sensor.
6. Remove the four fasteners
t
retaining the heat
shield above the valve cover.
NOTE
Front fasteners are plastic rivets and rear fasteners are
bolt/washer/nut.
7. Remove the two fasteners
y
retaining the heat shield
to the exhaust pipe / turbo joint.
ENGINE / COOLING SYSTEM
