40.Lift engine out of the chassis, be careful not to snag
any hoses or wiring.
41.If replacing engine: remove applicable coolant
hoses, stator/flywheel, starter and engine sensors.
ENGINE INSTALLATION
1. If removed from engine: install applicable coolant
hoses, stator/flywheel, starter and engine sensors.
2. Install engine in the chassis, be careful not to snag
any hoses or wiring.
3. Install fasteners retaining engine to the engine mount
bracket. Torque fasteners to specification.
TORQUE
Engine Mounting Bracket Fasteners:
42 ft-lb (57 Nm)
4. Loosely install fasteners retaining inner cover to the
transmission and engine/trans joint.

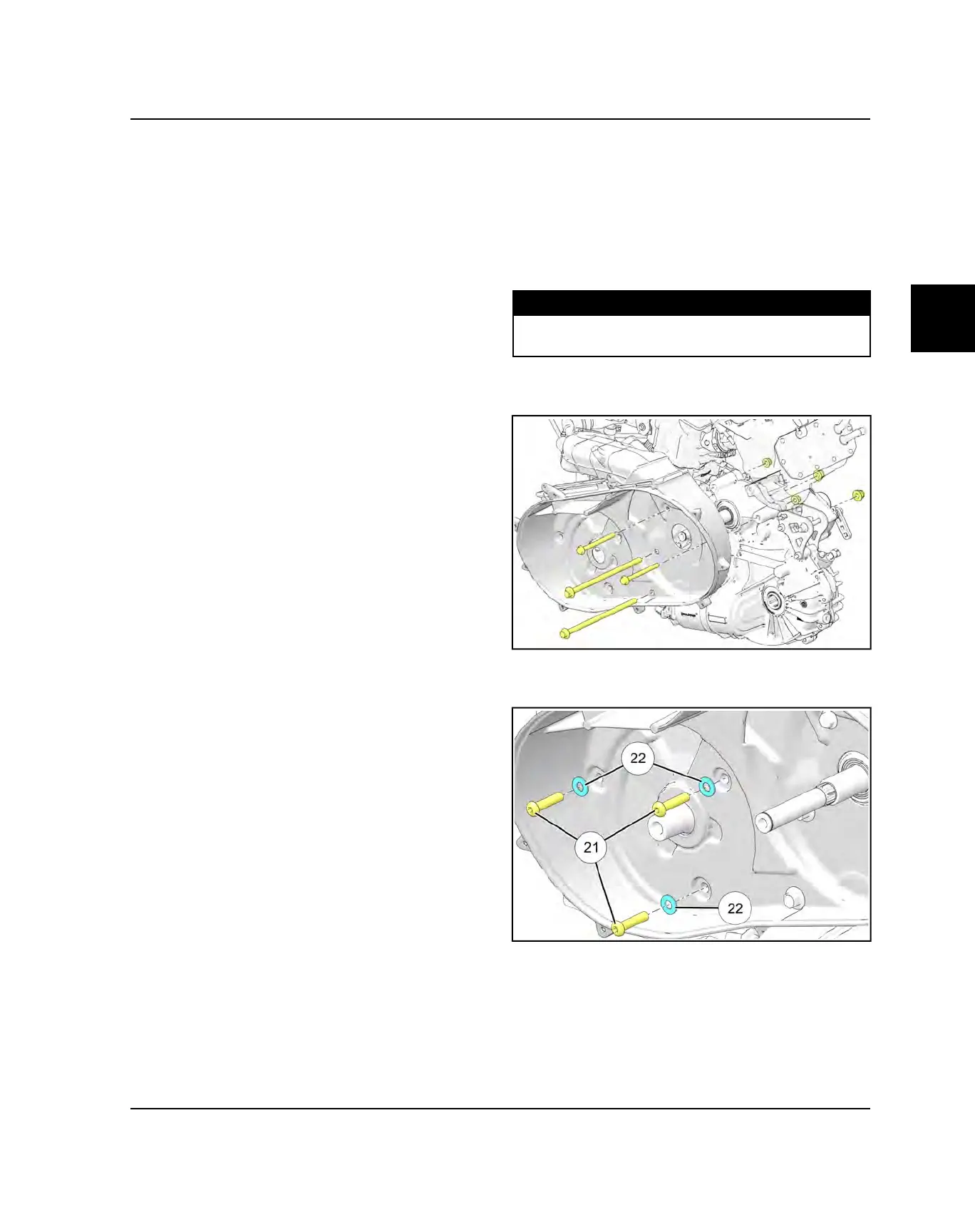

5. Loosely install the three allen screws
2!
and washers
2@
retaining inner cover to engine.
