3.52
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

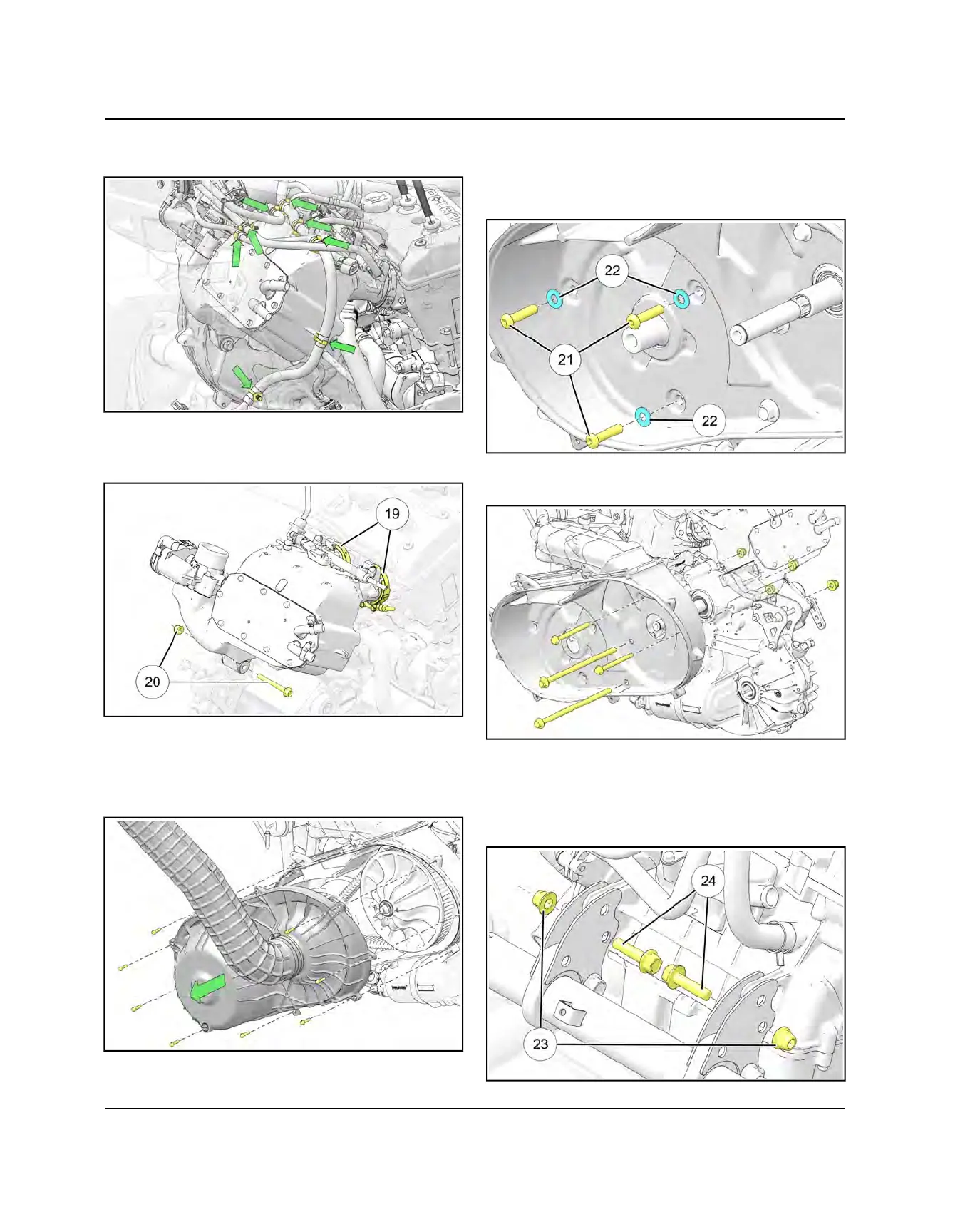

29.Remove zip ties retaining fuel lines and harnesses to
intake manifold.
30.Loosen and remove clamps
1 (
retaining intake
manifold to engine. Remove lower manifold mounting
bolt
2)
(to trans mount bracket).
31.Remove intake manifold and throttle body as
assembly.
32.Disconnect the starter wiring.
33.Remove PVT hoses and outer cover.
34.Remove secondary clutch, belt, and primary clutch.
35.Support the bottom side of the engine with wood
blocks or from the top side with an engine lift.
36.Remove the three allen screws
2!
and washers
2@
retaining inner cover to engine.
37.Remove fasteners retaining inner cover to
transmission.
38.Remove fasteners retaining inner cover to engine/
trans joint. Discard PVT inner cover o-ring around the
crankshaft snout.
39.Remove fasteners
2#2$
retaining engine to the engine
mount bracket.
ENGINE / COOLING SYSTEM
