9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual

3.51

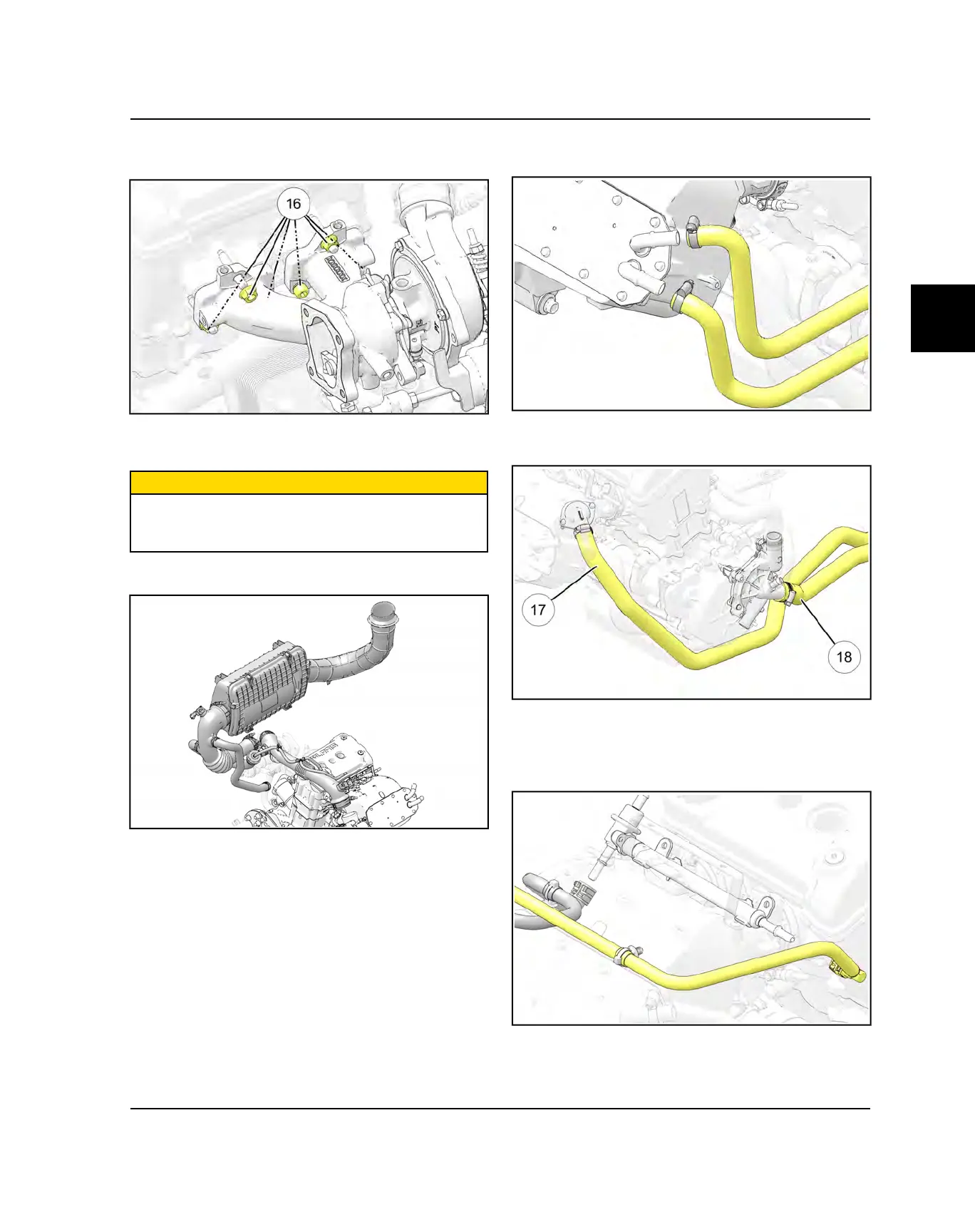

21.Remove the six fasteners

retaining the head pipe

to the cylinder head.

22.Slide the head pipe off the studs and remove the

head pipe/turbo from the vehicle.

CAUTION

Do not handle the turbo/head pipe assembly by the

actuator rod. The rod will become damaged and the

turbo will not function properly.

23.Remove air box and engine air intake.

24.Remove two hoses going to the charge air cooler and

move the hoses towards the front of the vehicle.

25.Remove the thermostat housing hose

and the

water pump hose

26.Disconnect stator harness and disconnect the

harness retainer from the engine mount.

27.Disconnect the fuel supply and return hoses at the

fuel rail.

28.Disconnect TBAP, both TMAP sensors, CPS, coolant

temp sensor, Trans switch, speed sensor, injectors,

ETC.

ENGINE / COOLING SYSTEM
