9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
SHOCK SERVICE
FOX SHOCK SERVICE

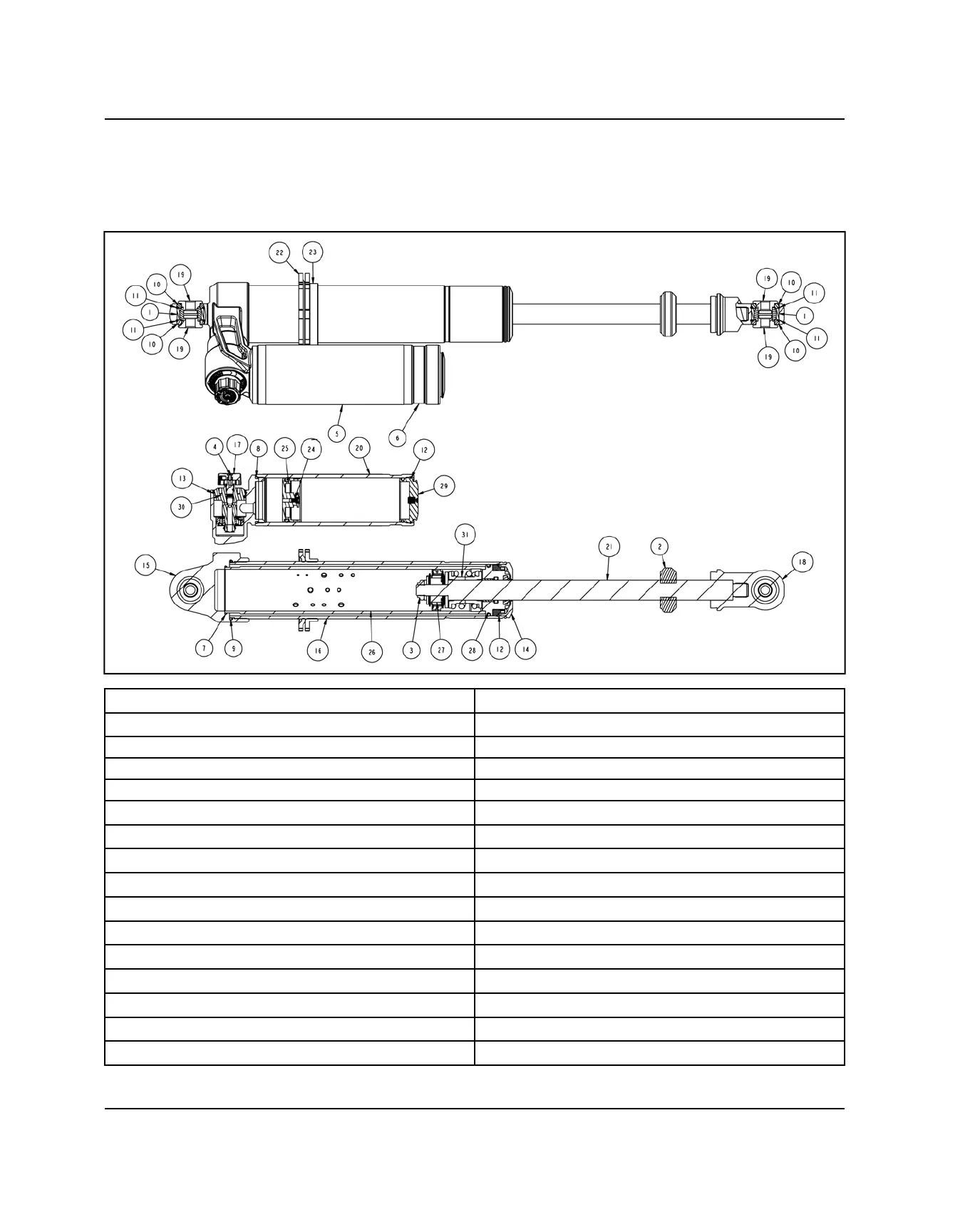

FOX 2.5” / 3.0” O.E. PODIUM BYPASS
q
Spherical Bearing
k
Low Speed Adjuster Knob
w
Bumper
l
Eyelet
e
Lock Nut
1(
Reducer
r
Screw
2)
Reservoir
t
Reservoir Decal
2!
Shaft
y
Band Decal
2@
Spring Adjuster Ring
u
O-ring
2#
Spring Adjuster Ring Backup
i
O-ring
2$
Screw Assembly
o
O-ring
2%
Piston Assembly
a
O-ring
2^
Internal Bypass Body Assembly
s
Retaining Ring
2&
Valving Assembly
d
Retaining Ring
2*
Bearing Assembly
f
Retaining Ring
2(
Reservoir End Cap Assembly
g
Bearing Cap
3)
Damping Adjust Assembly
h
Body Cap
3!
Sparing Hardware Assembly
j
Body
STEERING / SUSPENSION
