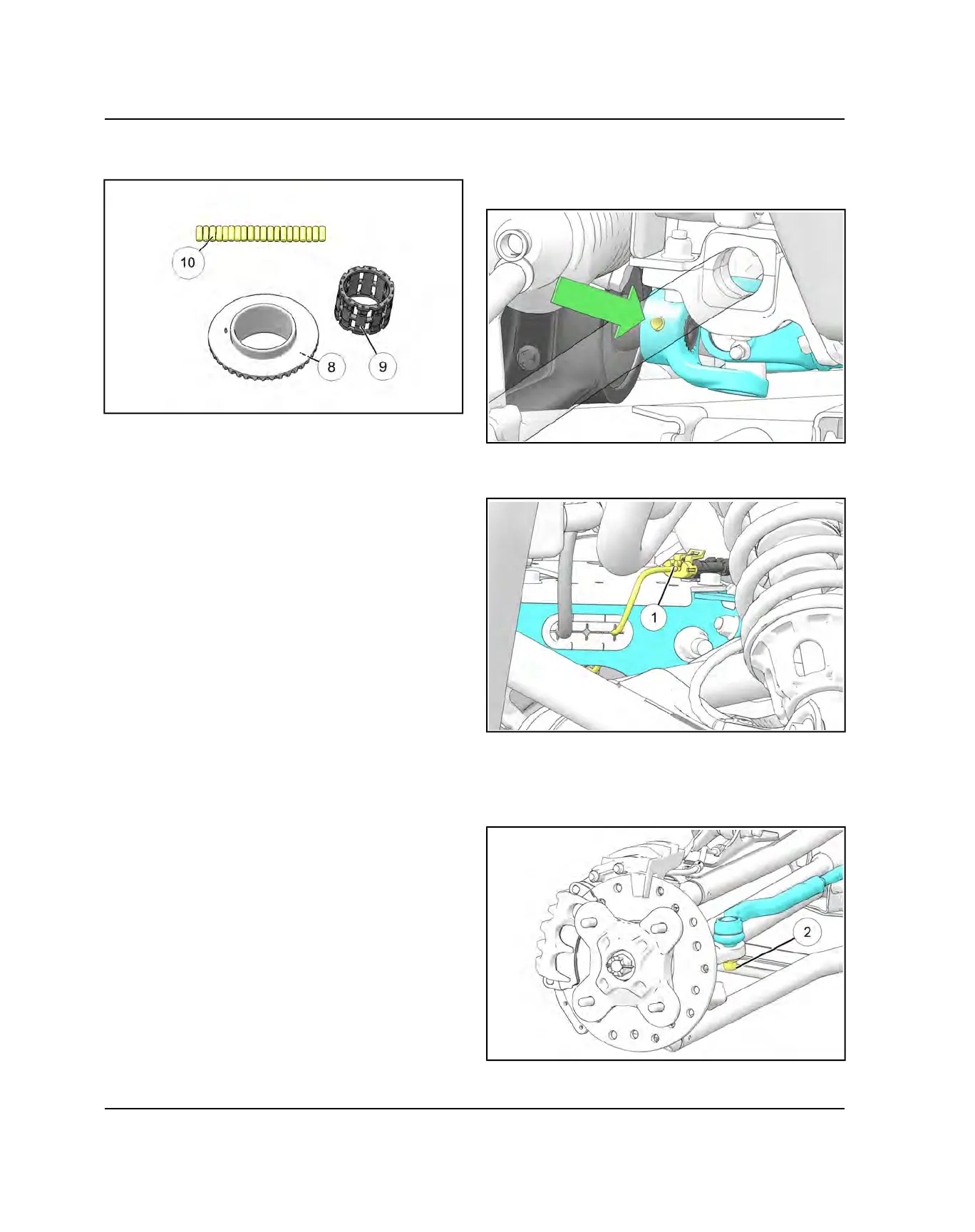

6. Inspect the roller surface on the inside of the ring gear
for gouging/rough spots.
7. Inspect the roll cage
o
assembly for cracks or
excessive wear. If damaged, replace the roll cage
assembly.
8. Inspect the rollers
a
for nicks and scratches. The
rollers must slide up, down, in and out freely within
the roll cage sliding surfaces and H-springs.
FRONT GEARCASE REMOVAL
1. Locate front propshaft roll pin and use roll pin removal
tool to remove. Discard roll pin.
2. From the left front wheel well, disconnect front
gearcase wiring harness
q
.
3. Remove both front wheels.
4. Remove left tie rod end nut
w
, and remove tie rod
end joint with a proper pulling tool. Repeat the
procedure for the opposite side of the vehicle.
FINAL DRIVE
