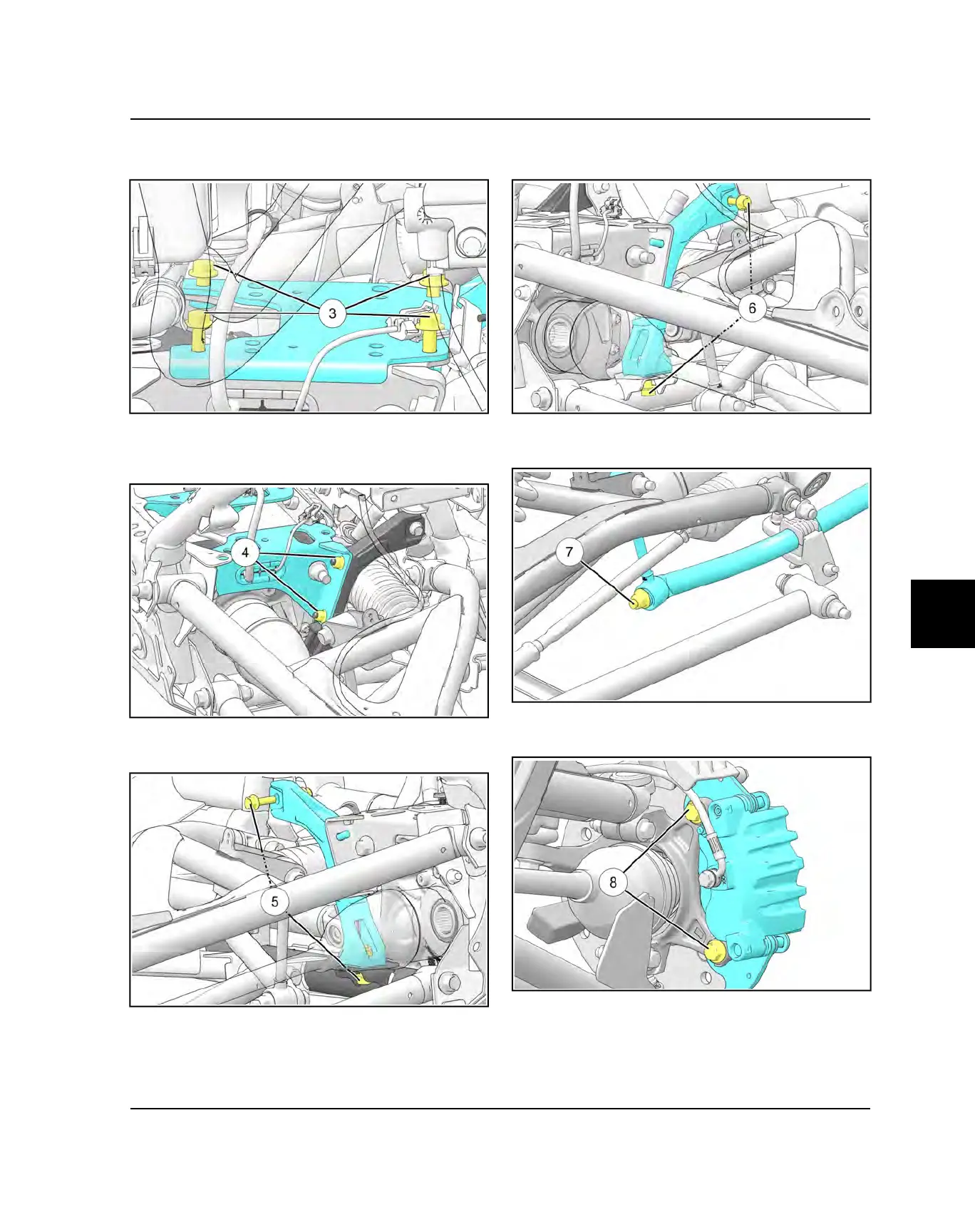

5. Remove four fasteners
e
securing winch plate to
gearcase bracket.
6. Remove two fasteners
r
securing gearcase bracket
to steering rack mounting cast. Repeat the procedure
for the opposite side of the vehicle.
7. Remove two mounting fasteners
t
from right side
steering rack mount. Remove the mount.
8. Remove two mounting fasteners
y
from left side
steering rack mount. Leave the mount in its position.
9. Remove fasteners
u
retaining lower stabilizer bar
link. Repeat step on opposite side of vehicle.
10.Remove two brake caliper fasteners
i
and remove
the brake caliper.
