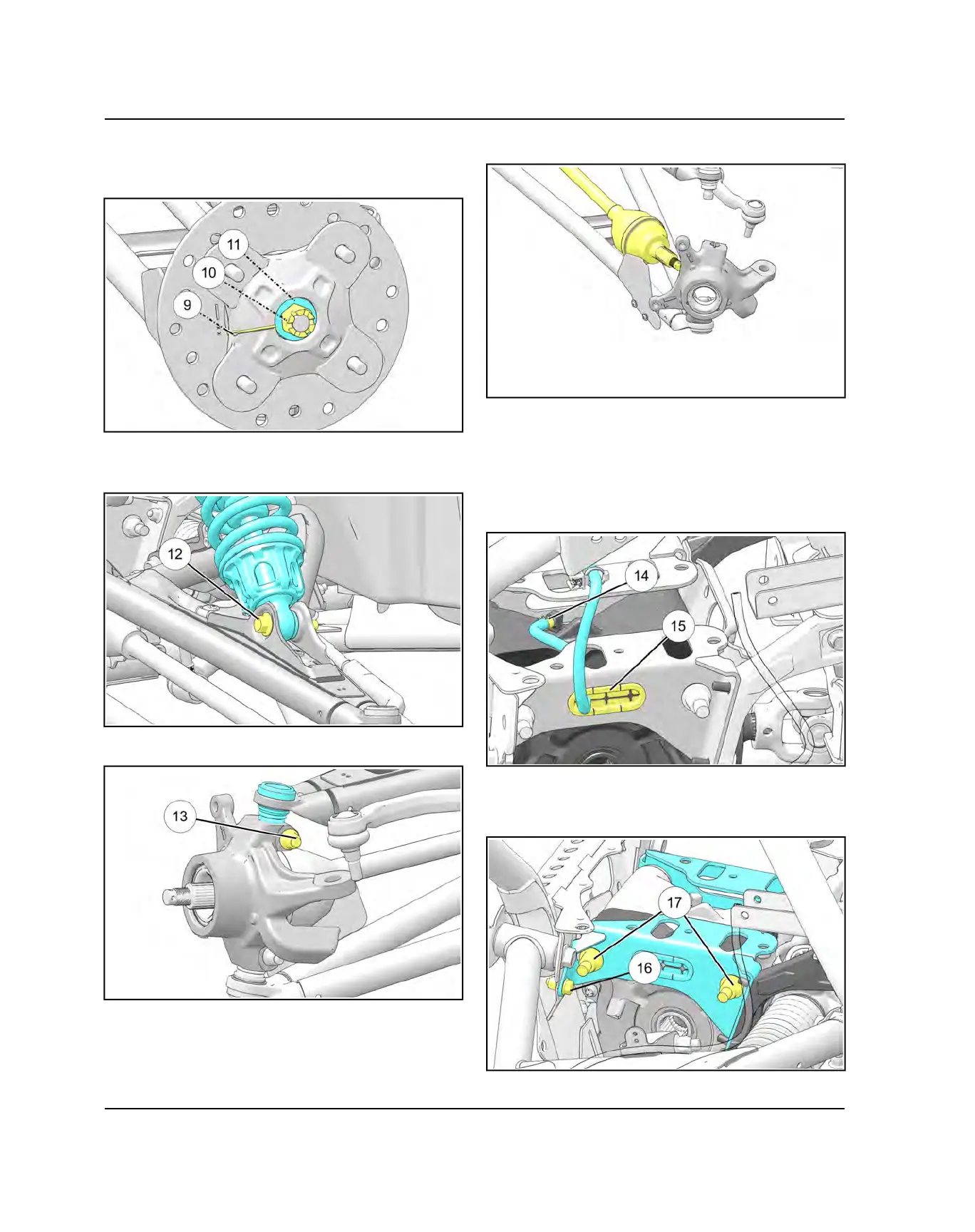

11. Remove the cotter pin
o
, loosen the hub castle nut
a
and remove the cone washer
s
. Discard the cotter
pin, nut, and washer.
12.Remove the hub assembly.
13.Remove the lower shock fastener
d
.
14.Remove upper control arm pinch bolt.
15.Using a soft face hammer, tap on bearing carrier to
loosen the upper A-arm ball joint end while lifting
upward on the upper A-arm. Completely remove the
ball joint end from the bearing carrier.
16.Remove driveshaft from bearing carrier.
17.With a short, sharp jerk, remove drive shaft from the
front gearcase.
18.Repeat steps 10– 17 for the opposite side of the
vehicle.
19.Remove the gearcase vent line
g
from the gearcase.
Route the vent line out of the routing grommet
h
.
20.Remove the fastener
j
securing the gearcase
mounting plate to the chassis. Repeat step for
opposite side of the vehicle.
