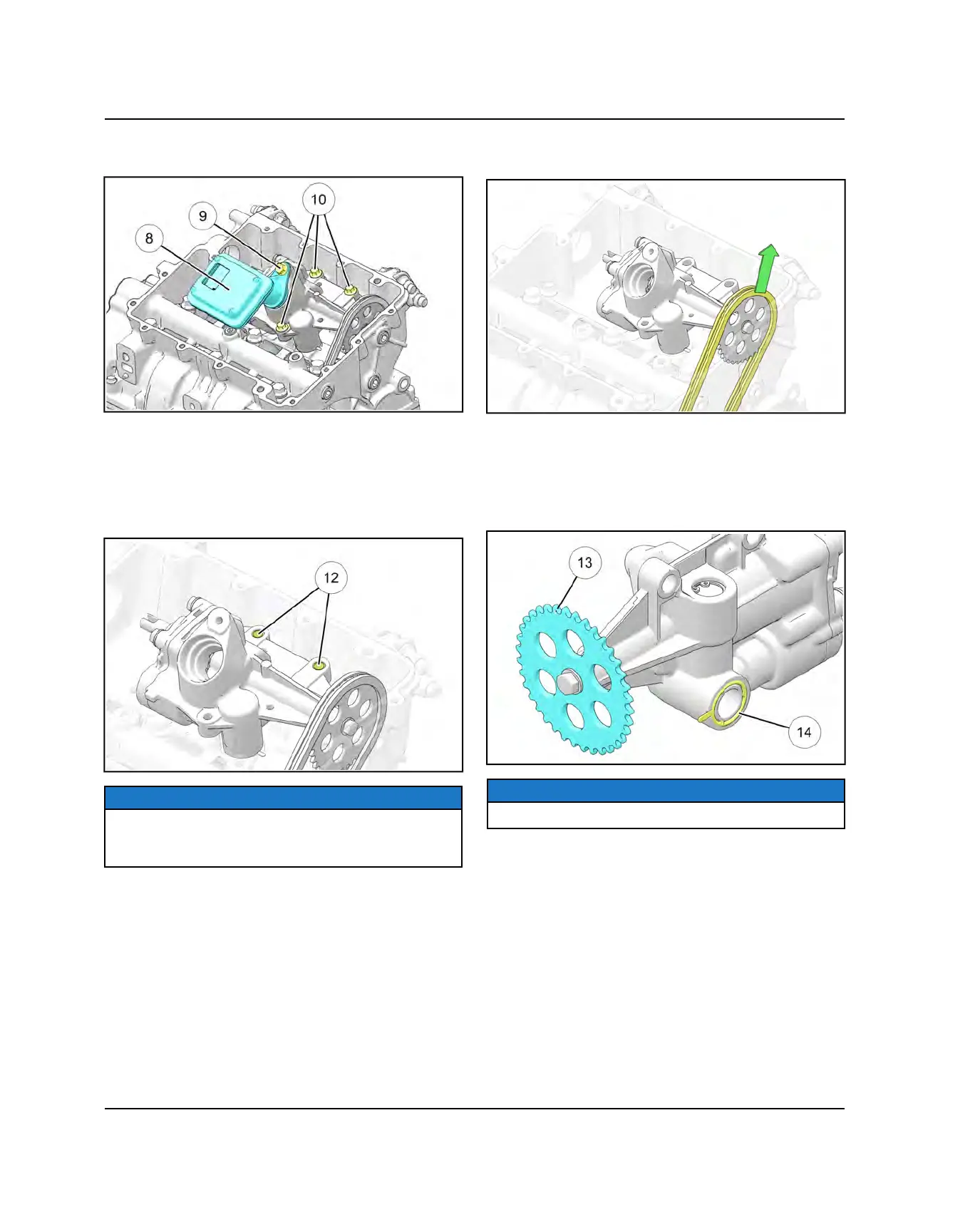

8. Remove and clean oil pump pick-up
i
by removing
the one bolt
o
.
9. Remove the three bolts
a
that retain the oil pump
s
to the crankcase.
10.Use one of the oil pump retaining bolts or a pen
magnet to extract the dowel pins
d
from the oil
pump. Doing so allows for oil pump removal without
having to remove the pump drive sprocket.
NOTE
If unable to extract the dowel pins from the oil pump,
the oil pump sprocket must be removed. Access the
sprocket bolt by removing the case plug.
11. Lift the oil pump drive chain off the sprocket and
remove the oil pump.
12.Visually inspect the oil pump and drive sprocket
f
for
wear or damage. Replace oil pump drive chain and
sprocket if worn or damaged. If any part of the oil
pump is damaged, the entire assembly must be
replaced. Replace the oil pump seal
g
during
crankcase assembly.
NOTE
Oil pump assembly is non-serviceable
13.Rotate the engine so the cylinder is facing up.
