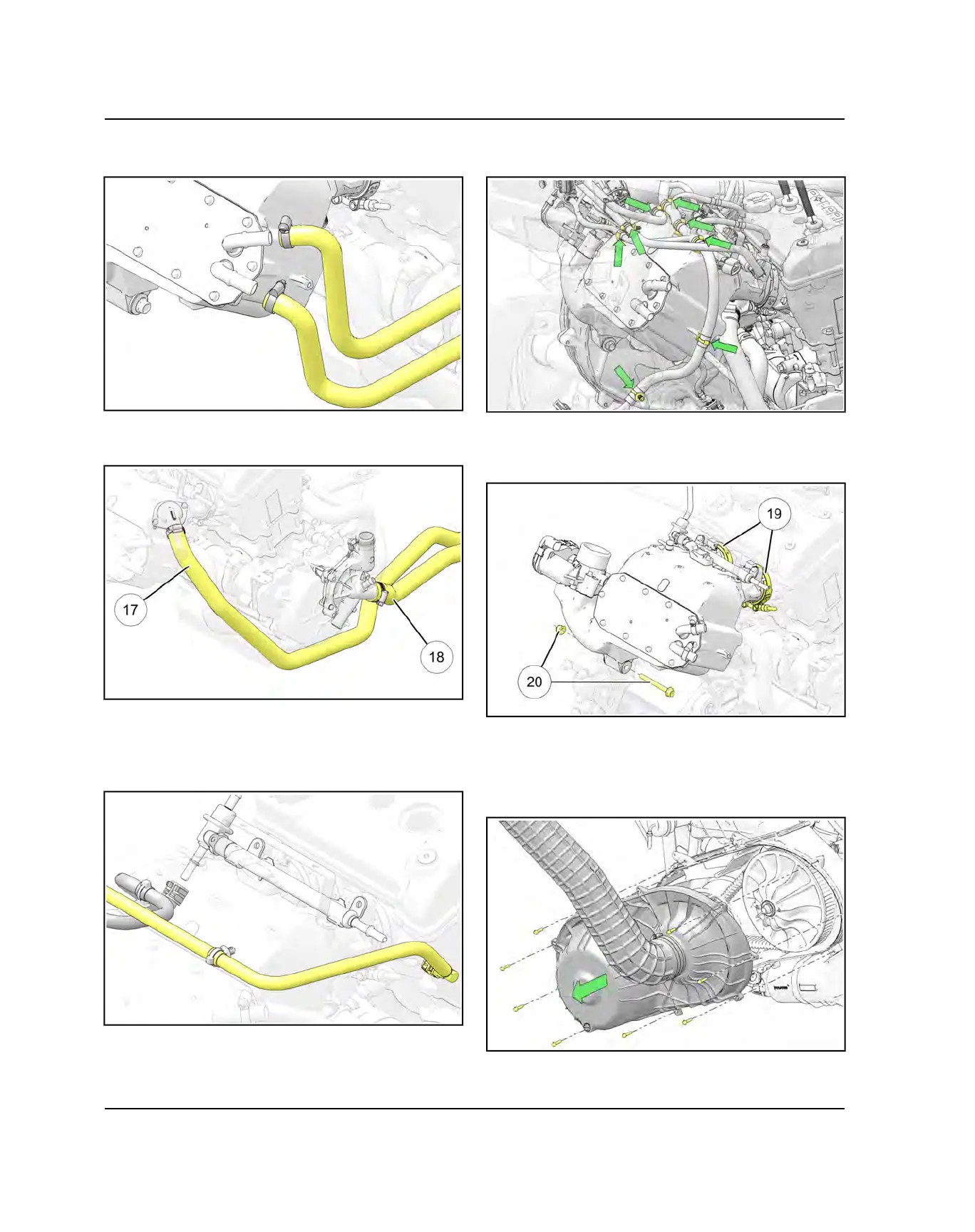

13.Remove two hoses going to the charge air cooler and
move the hoses towards the front of the vehicle.
14.Remove the thermostat housing hose
k
and the
water pump hose
l
.
15.Disconnect stator harness and disconnect the
harness retainer from the engine mount.
16.Disconnect the fuel supply and return hoses at the
fuel rail.
17.Disconnect TBAP, both TMAP sensors, CPS, coolant
temp sensor, Trans switch, speed sensor, injectors,
ETC.
18.Remove zip ties retaining fuel lines and harnesses to
intake manifold.
19.Loosen and remove clamps
1 (
retaining intake
manifold to engine. Remove lower manifold mounting
bolt
2)
(to trans mount bracket).
20.Remove intake manifold and throttle body as
assembly.
21.Disconnect the starter wiring.
22.Remove PVT hoses and outer cover.
TRANSMISSION
