6
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
6.7

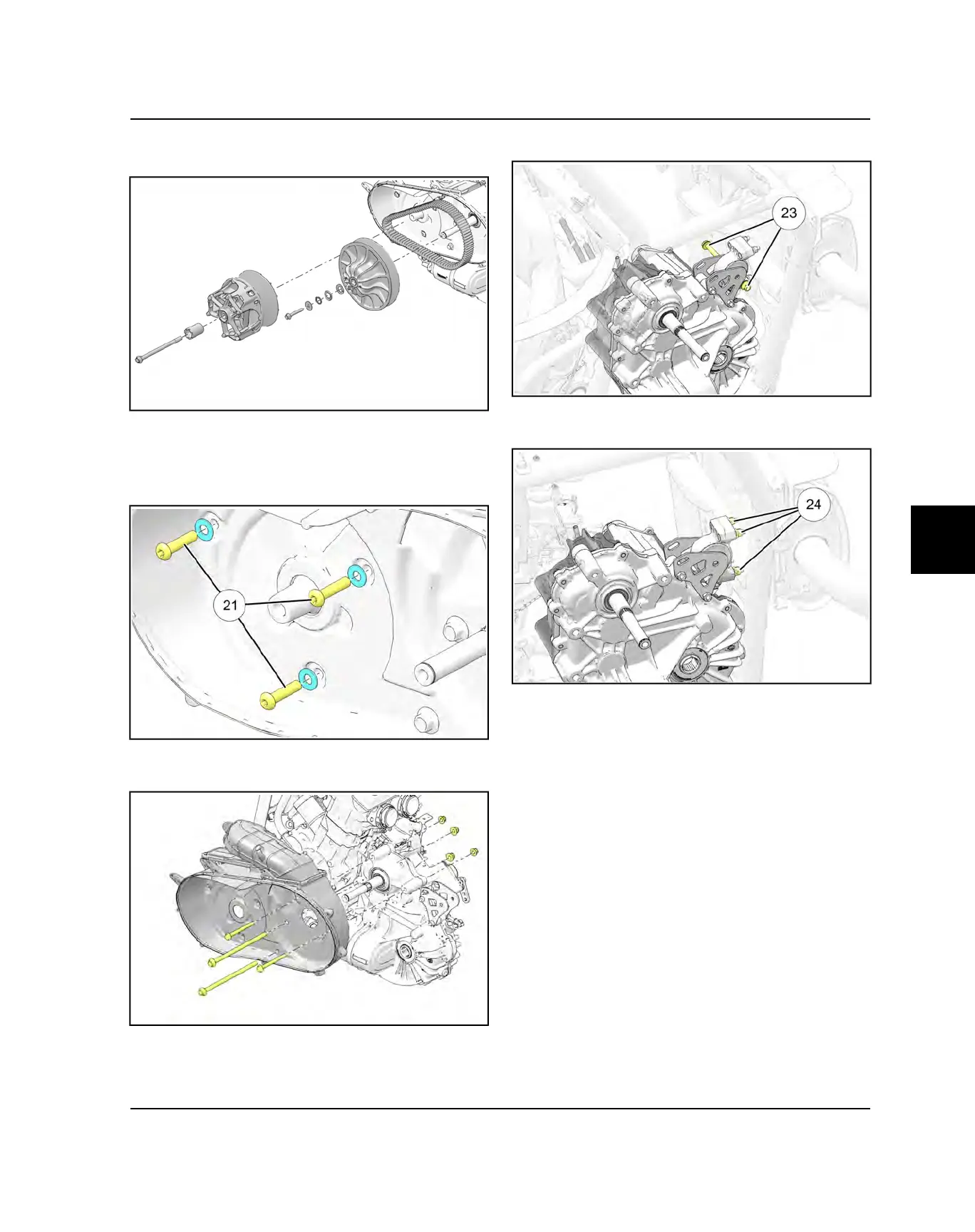

23.Remove the belt, secondary clutch, and primary
clutch.
24.Support the bottom side of the engine with wood
blocks or from the top side with an engine lift.
25.Remove three allen screws
2!
retaining inner cover to
engine.
26.Remove fasteners retaining inner cover to
transmission.
27.Remove fasteners retaining inner cover to engine/
trans joint. Discard PVT inner cover o-ring around the
crankshaft snout.
28.Remove the rear transmission isolator fasteners
2#
.
29.Remove the three fasteners
2 $
retaining the rear
isolator to the frame bracket.
30.Remove the transmission out the driver’s side of the
vehicle.
TRANSMISSION
