9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
3.25

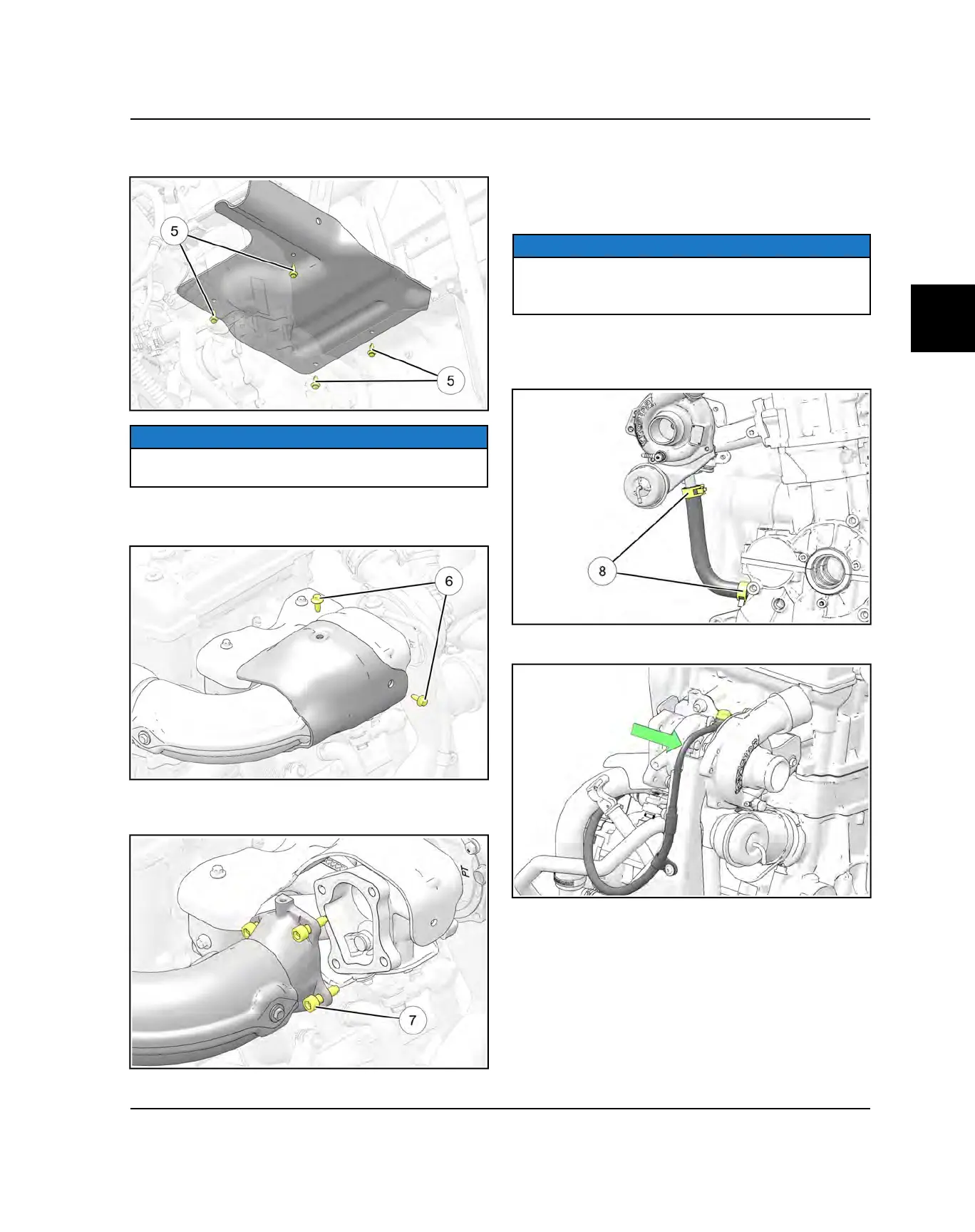

7. Remove the four fasteners
t
retaining the heat
shield above the valve cover.
NOTE
Front fasteners are plastic rivets and rear fasteners are
bolt/washer/nut.
8. Remove the two fasteners
y
retaining the heat shield
to the exhaust pipe / turbo joint.
9. Remove the four fasteners
u
retaining the exhaust
pipe to the turbocharger.
10.Remove the exhaust pipe from the chassis.
11. Remove turbocharger oil drain hose and inspect. If
the inner diameter has been deformed or obstructed,
or if any kinking or cracking is present, replace the
hose.
NOTICE
Ensure the oil drain hose located between the
turbocharger and oil pan is not kinked or obstructed in
any way.
12.Inspect for any oil seepage or leaking from either end
of the oil drain hose. Check tightness and condition of
both hose spring clamps
i
. Replace if necessary.
13.Inspect oil feed line for damage, or leaks.
ENGINE / COOLING SYSTEM
