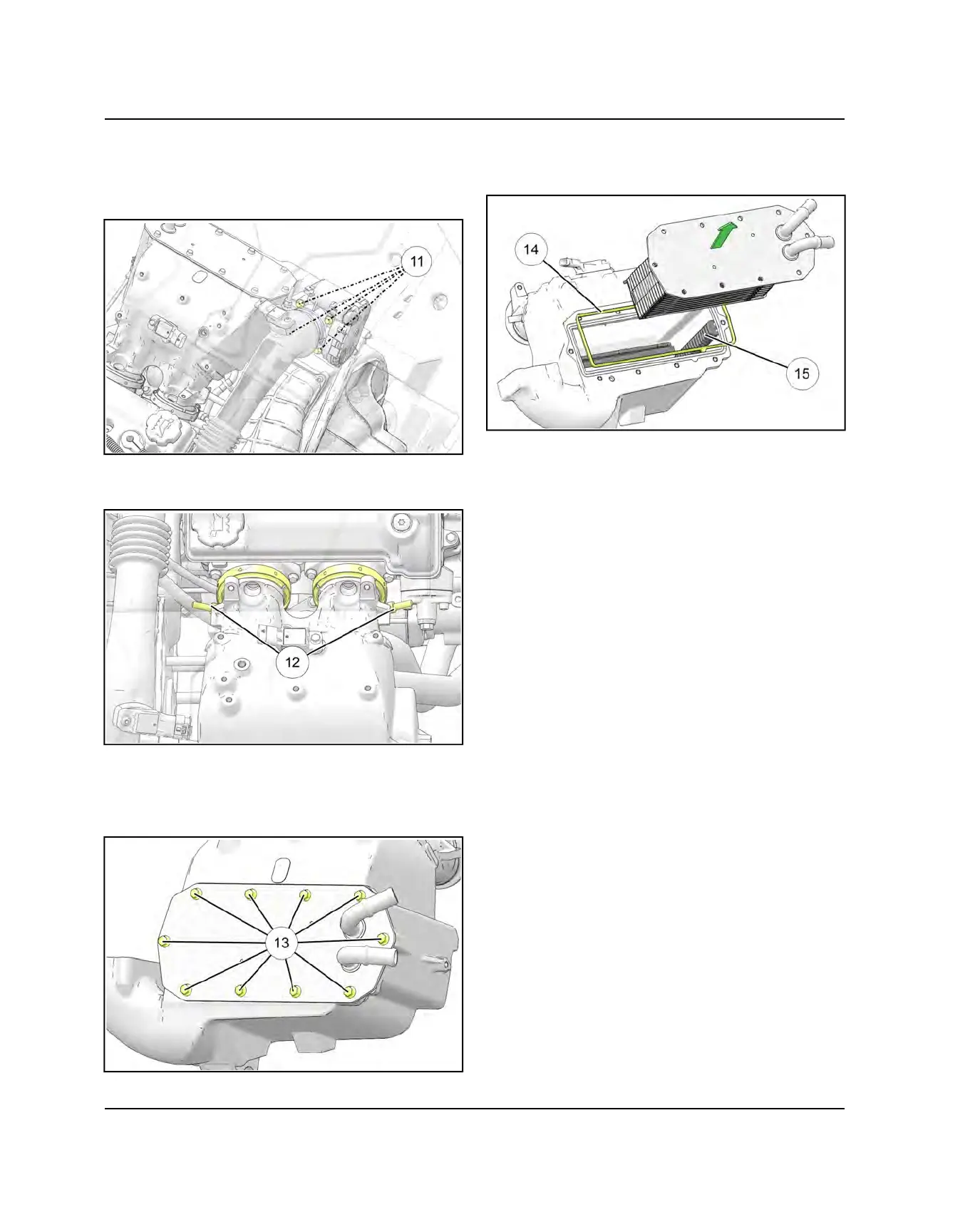

9. Remove the fastener
a
retaining the manifold air
pressure reference hose banjo fitting.
10.Remove the four fasteners
s
retaining the throttle
body/ETC to the intake manifold.
11. Loosen the clamps
d
retaining the intake manifold to
the engine.
12.Carefully remove the intake manifold out the
passenger side of the vehicle.
13.Remove the fasteners
f
retaining the charge air
cooler to the intake manifold.
14.Replace the seal
g
any time the charge air cooler is
removed. Also inspect the side/bottom air dam
h
for
any damage.
