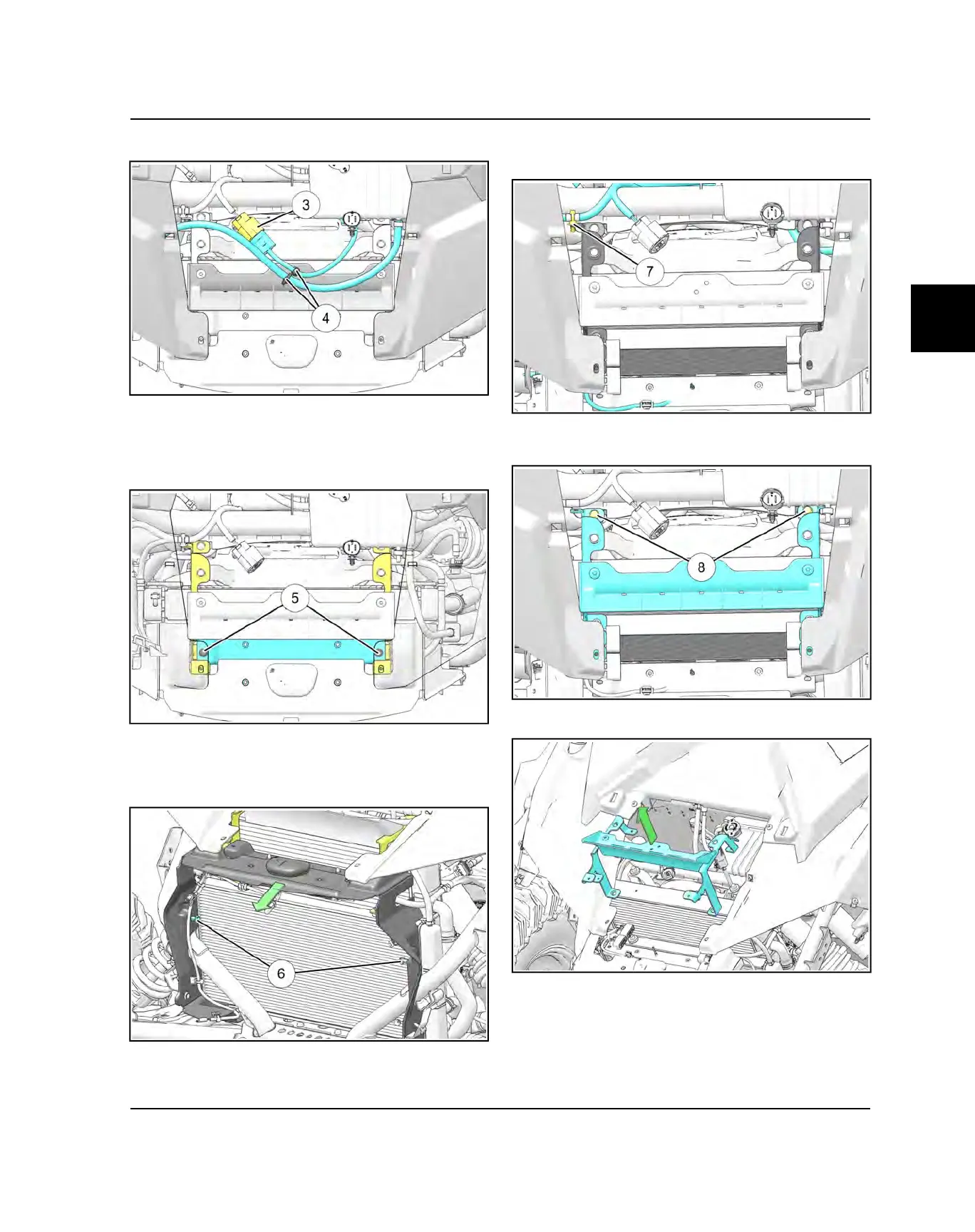

7. Disconnect radiator fan electrical connector
e
.
8. Remove two routing clips
r
retaining fan harness
and overflow tank hose to radiator shroud.
9. Remove two 10mm fasteners
t
securing voltage
regulator bracket.
10.Remove two push pins
y
allowing the top of the
radiator fan shroud and voltage regulator bracket to
be moved toward the front of the vehicle and off of the
radiator bracket.
11. Remove routing clip
u
securing main harness to
upper radiator bracket.
12.Remove two 10mm fasteners
i
securing upper
radiator bracket.
13.Remove upper radiator bracket.
