9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
3.61

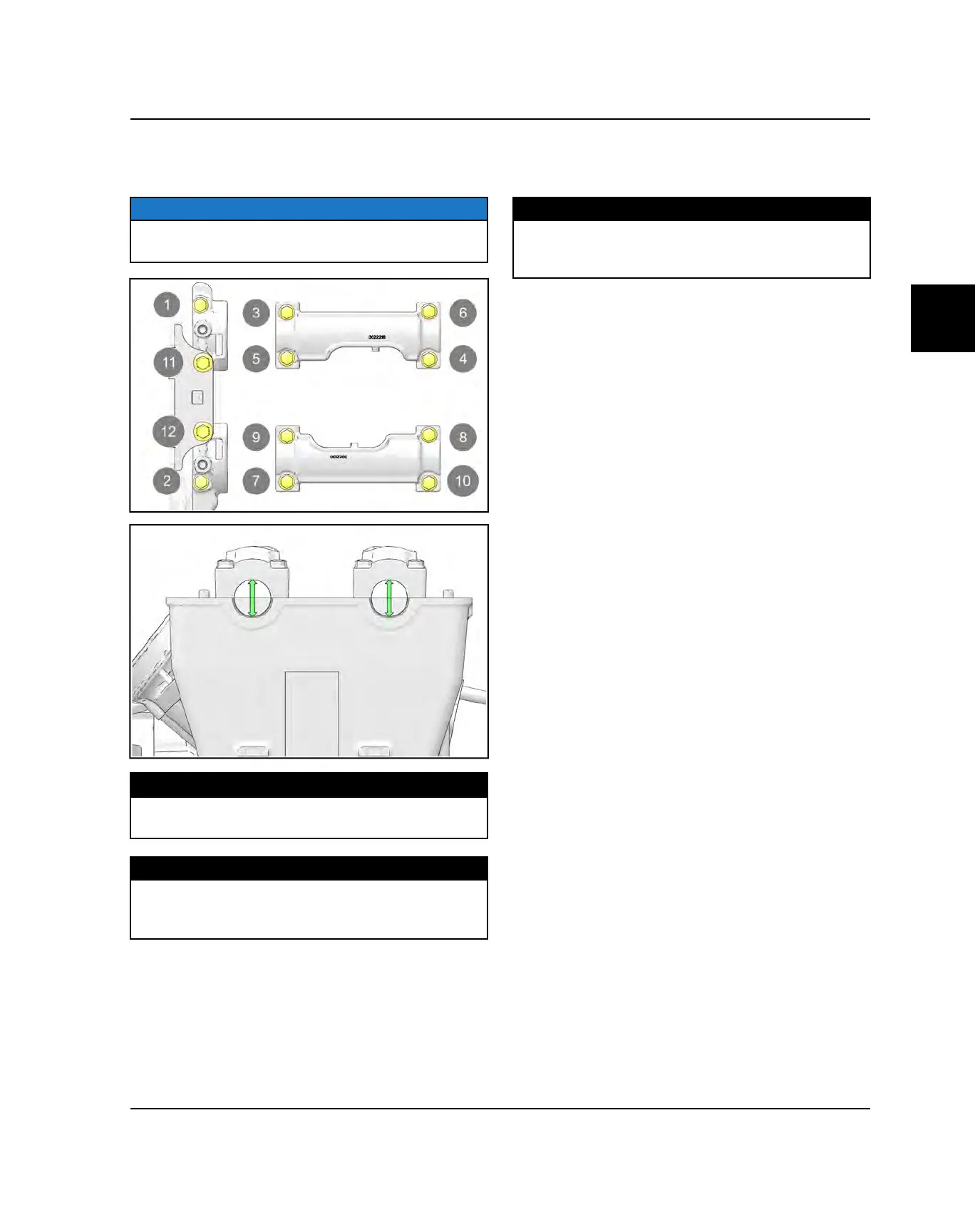

5. Temporarily install the camshaft carriers to measure
the camshaft bore. Torque bolts in sequence to
specification. Replace cylinder head if worn.
NOTE
Replace cylinder head if camshaft journal bores are
damaged or if worn past the service limit.
TORQUE
Camshaft Carrier Bolts:
7 ft-lb (10 Nm)
MEASUREMENT
Camshaft Carrier Bore I.D.:
.9055 - .9063" (23.000 - 23.021 mm)
Service Limit: .9072" (23.044 mm)
6. Calculate oil clearance by subtracting camshaft
journal O. D. s from camshaft carrier bore I. D. s.
Compare to specification.
MEASUREMENT
Calculated Camshaft Oil Clearance:
.0009 - .0026" (0.022 - 0.067 mm)Service Limit:
.0039" (0.1 mm)
ENGINE / COOLING SYSTEM
