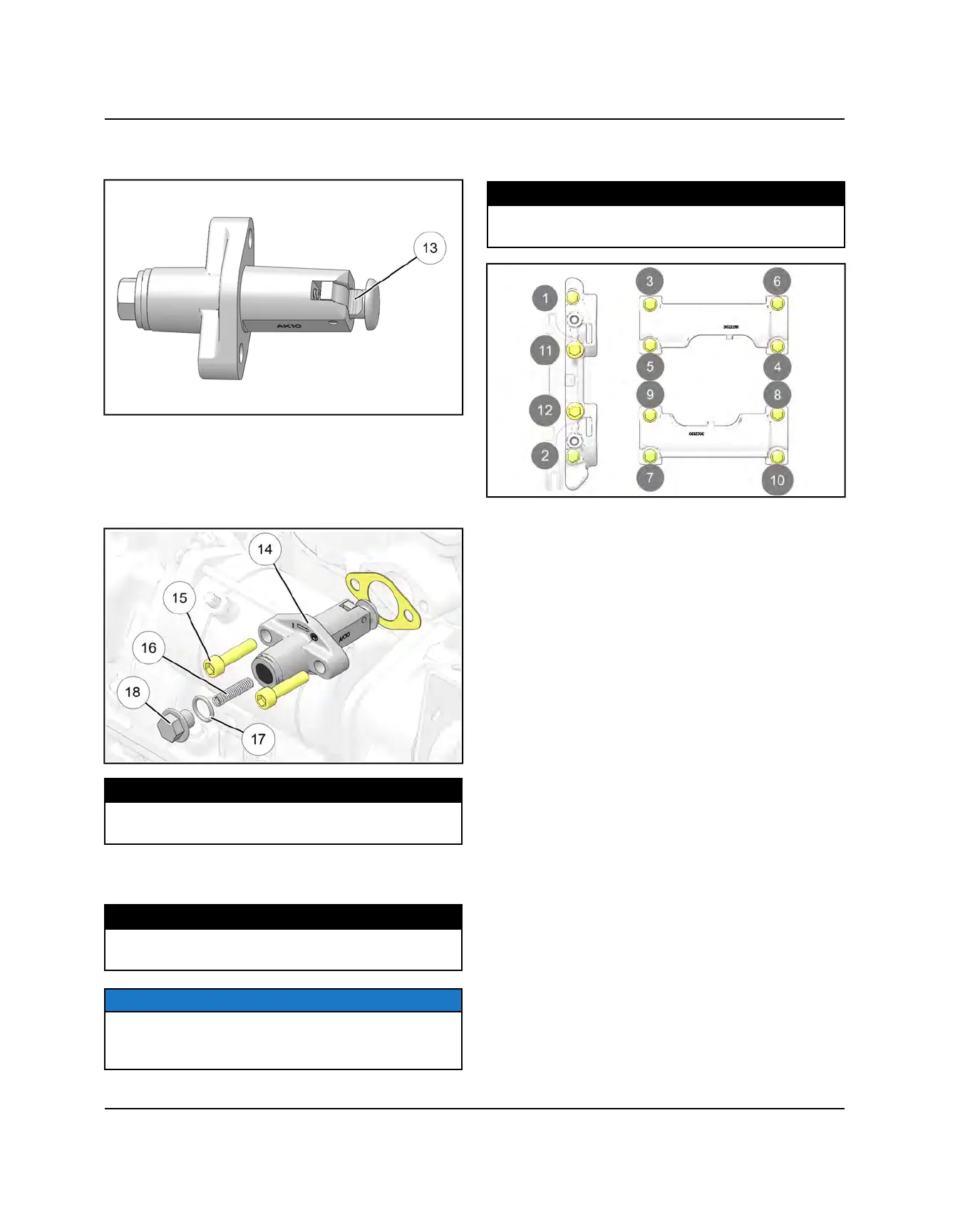

21.Lubricate the rack
f
on the tensioner with white
lithium grease.
22.Remove the spring retainer bolt and push the adjuster
all the way in.
23.Using a new gasket, install the cam chain tensioner
g
into the cylinder and torque mounting bolts
h
to
specification.
TORQUE
Cam Chain Tensioner:
7 ft-lb (10 Nm)
24.Install the tensioner spring
j
, washer
k
, and
retainer bolt
l
. Torque retainer bolt to specification.
TORQUE
Tensioner Spring Retainer:
12 ft-lb (16 Nm)
NOTE
The tensioner will automatically adjust to the proper
tension once the spring and retainer are installed. No
further adjustment is required.
25.Torque the camshaft carriers bolts in sequence to
specification.
TORQUE
Camshaft Carrier Bolts:
7 ft-lb (10 Nm)
26.Rotate crankshaft through two revolutions and verify
camshaft timing is correct.
