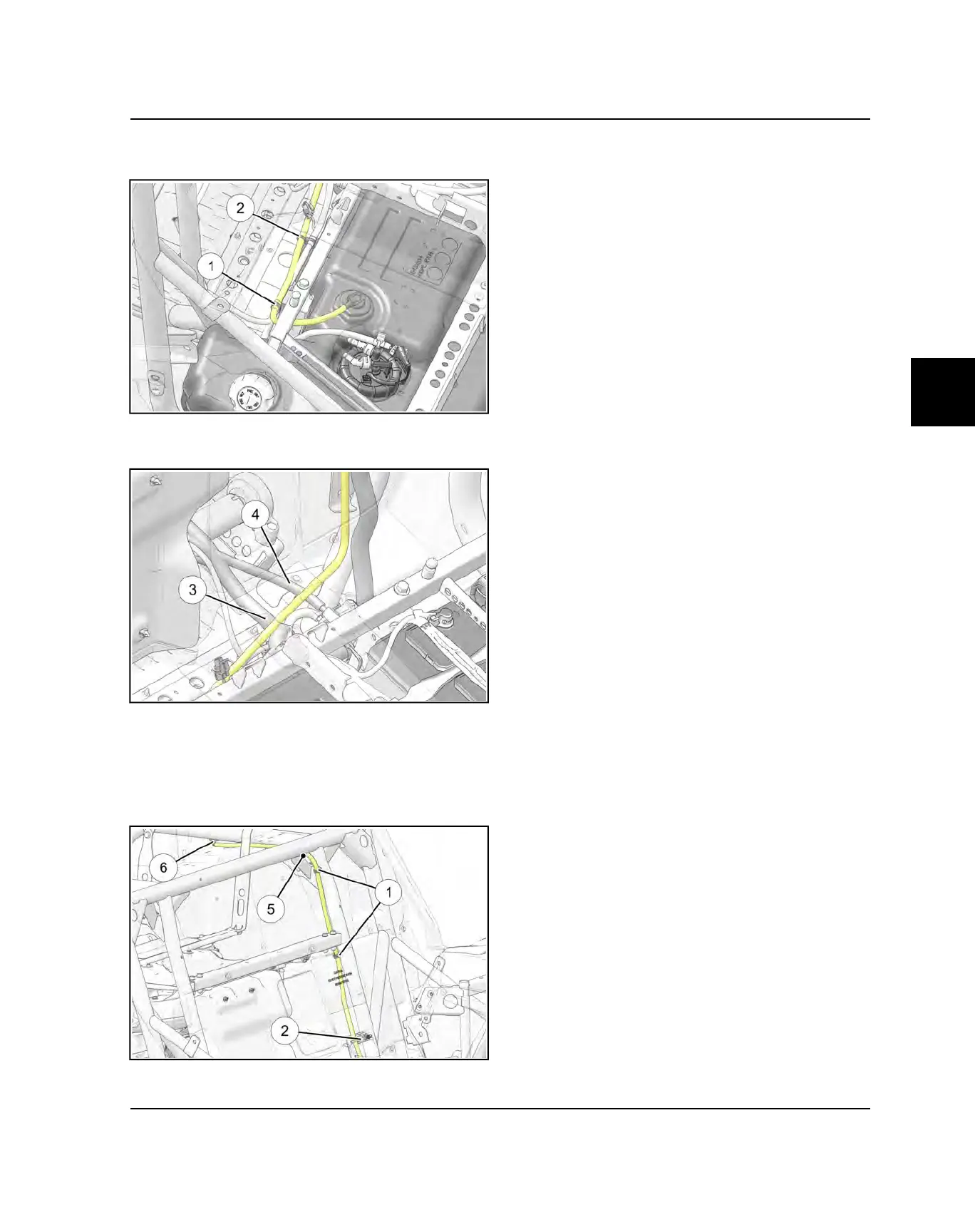

1. Retain the fuel vent line behind the fuel tank with a
hinge clip
q
and a panduit strap
w
.
2. Route the fuel vent line OVER the electrical harness
e
and OVER the starter solenoid cables
r
.
3. Route the fuel vent line through the panduit strap
w
to the right side of the access panel. Retain the vent
line in the two hinge clips
q
on the frame.
4. Feed the vent line through the shock mount bracket
opening
t
and attach the vent line to the fitting in the
frame
y
.
