9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
4.23

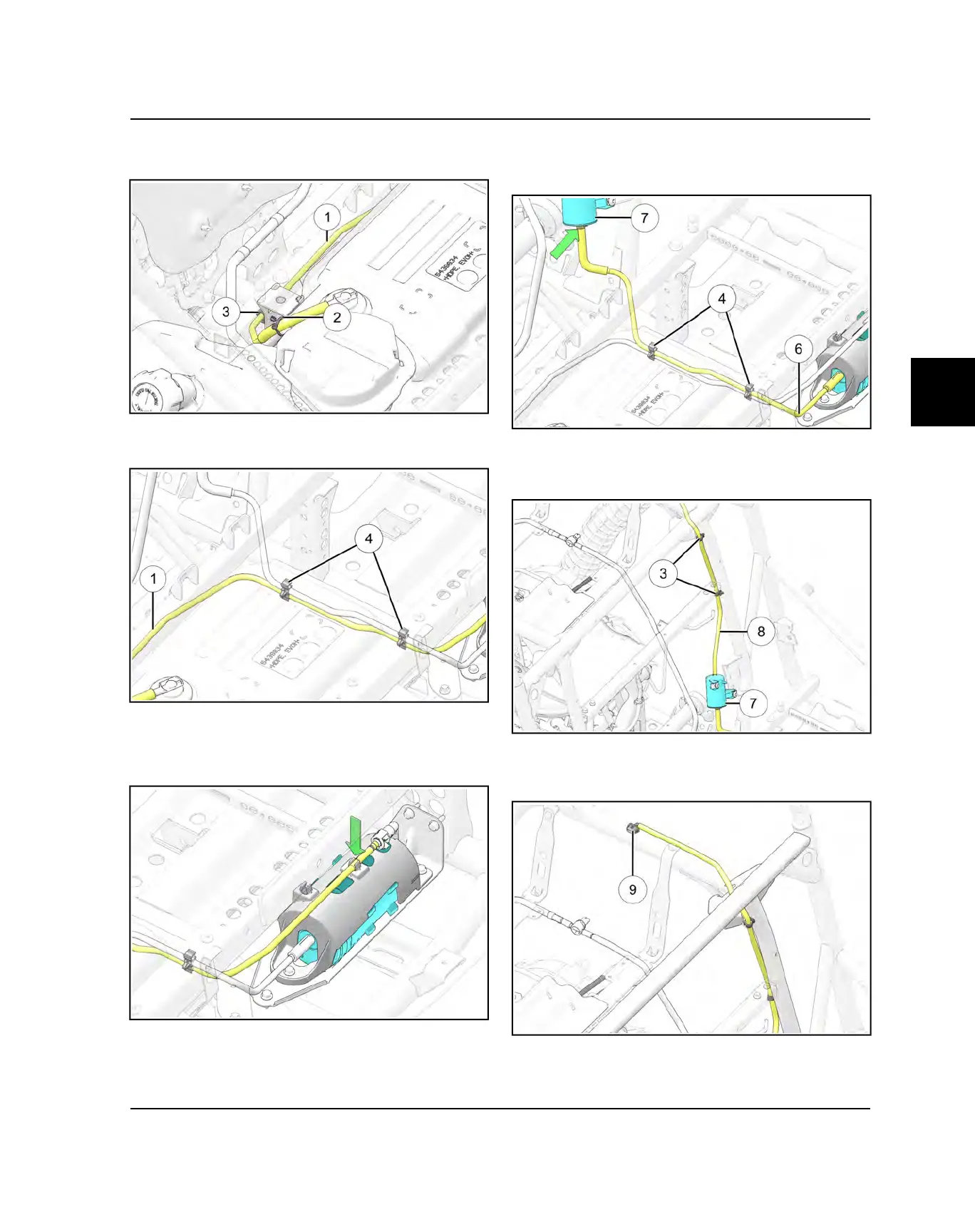

2. Retain the fuel vent line behind the fuel tank with a
hinge clip
e
.
3. Route the vent line UNDER the canister-to-filter line
and attach to the bottom fittings in two triple clips
r
.
4. Route the vent line OVER the canister cover, and
terminate line into the canister inlet fuel fitting. Press
vent line into the retaining clip on top of the canister
cover.
5. From the carbon canister, route the canister-to-filter
line
y
OVER the vent-to-canister line
q
, and attach
to the middle fittings in two triple clips
r
.
6. Attach canister-to-filter line into the bottom of the
canister filter. Retain the line to the filter with a hose
clamp.
7. From the canister filter, route the vent line
i
behind
the close-off panel, up the vertical shock support
tube, and retain with two hinge clips
e
.
8. Feed the vent line through the shock mount bracket
opening and attach the vent line to the fitting in the
frame
o
.
EFI / FUEL SYSTEM
