9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
4.27

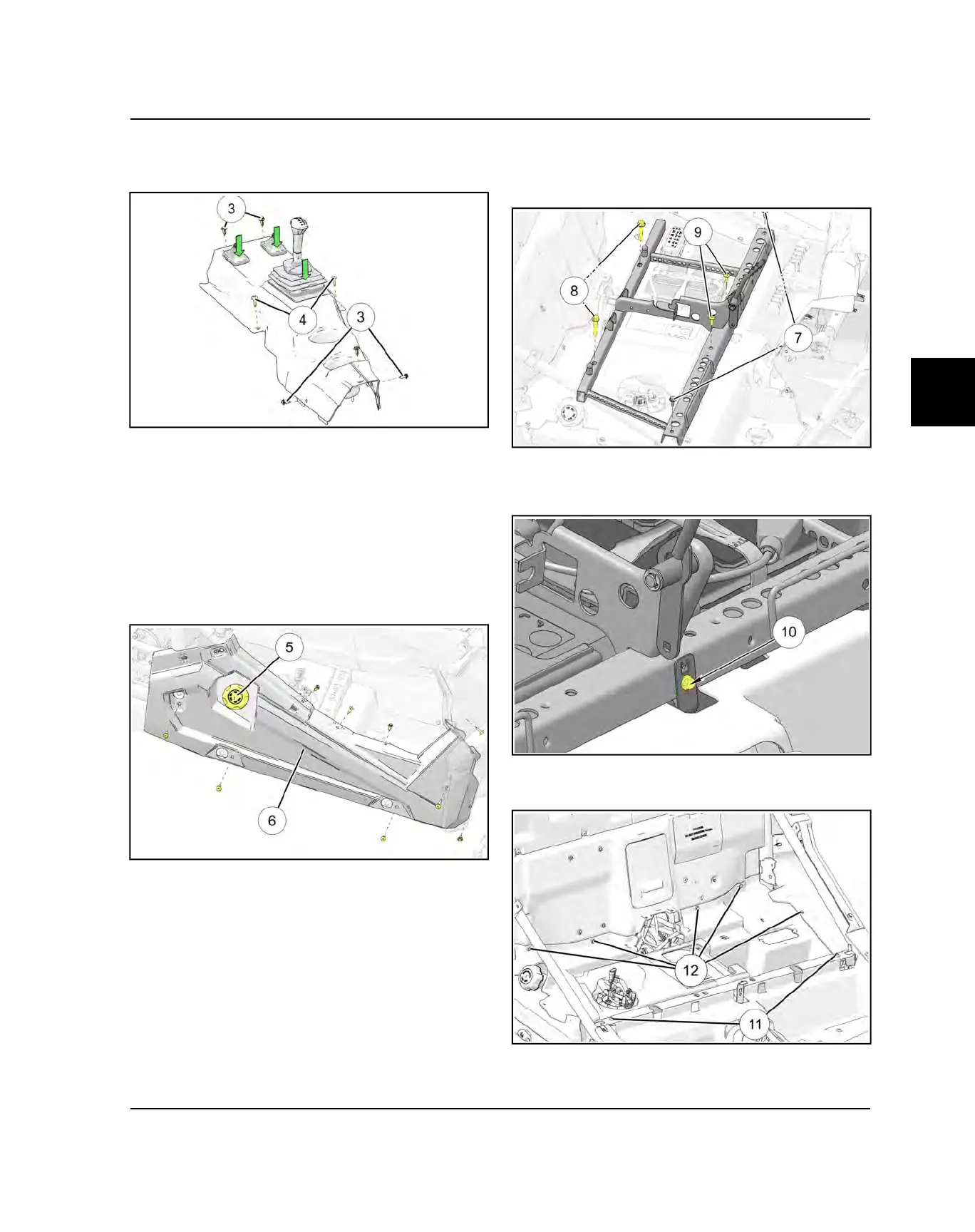

8. Remove the plastic rivets
e
and Torx screws
r
retaining the center console. Remove the console
from the vehicle.
9. Remove the shift linkage from the shifter. Loosen the
outer jam nut and remove the shift cable from the
bracket.
10.Remove the push rivets and Torx screws retaining the
rear fender flair and rear fender. Remove those
panels from the vehicle.
11. Remove the fuel cap
t
. Remove the push rivets and
Torx screws retaining the passenger side rocker
panel
y
. Remove the fender and rocker panel from
the vehicle. Install the fuel cap back on the fuel tank.
12.Remove the two bolts
u
and two T40 Torx screws
o
retaining the front of the seat base frame and two rear
bolts
i
. Remove the seat base assembly from the
vehicle.
13.Remove the T-40 Torx screw
a
retaining the fuel tank
strap to the seat base frame. The strap does not need
to be removed from the vehicle.
14.Remove the Torx screws
s
and plastic rivets
d
retaining the block-off panel using a T40 Torx driver.
EFI / FUEL SYSTEM
