9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
5.9

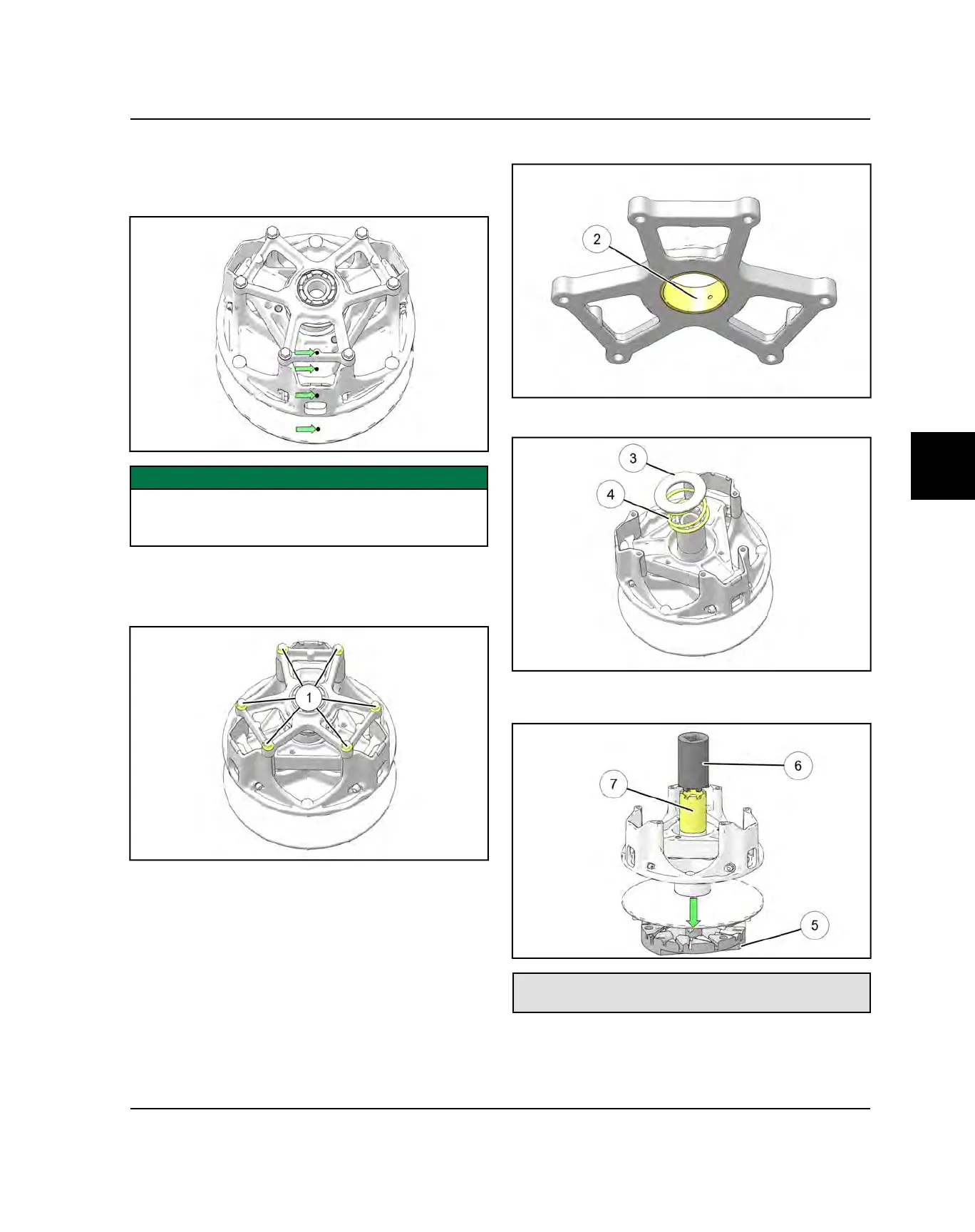

DRIVE CLUTCH DISASSEMBLY
1. Before taking the clutch apart, be sure to mark the
stationary sheave, moveable sheave, spider and
cover with a reference mark.
IMPORTANT
Failure to assemble the clutch exactly how it was taken
apart will cause the clutch to be out of balance and
require clutch replacement.
2. Place the drive clutch in a clutch compression tool.
3. Remove the six fasteners
q
retaining the drive clutch
cover.
4. Loosen and remove the clutch compression tool.
5. Inspect the cover bushing
w
for wear.
6. Remove the spring spacer
e
and the spring
r
.
7. Place the drive clutch holding tool
t
in a vise and
install the drive clutch on the tool.
Drive Clutch Holding Fixture:
2871358-B
PVT SYSTEM
