2. Install the driven clutch retaining bolt. Torque bolt to
specification.
TORQUE
Driven Clutch Retaining Bolt:
70 ft-lbs (95 Nm)

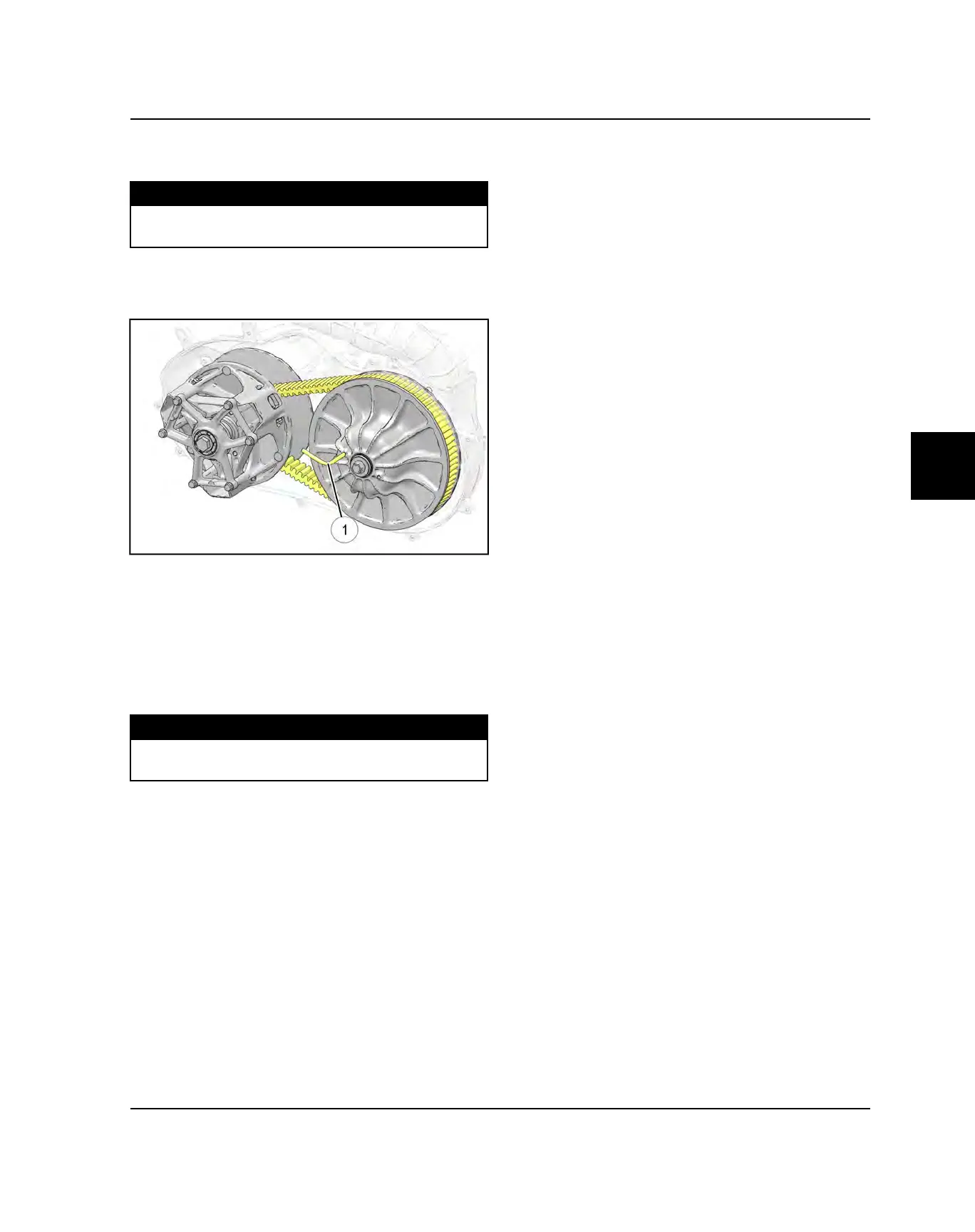

3. With the clutch spreader tool
q
installed , loop the
belt over the drive clutch and over part of the driven
clutch.
4. Rotate the driven clutch and walk the belt into the
clutch.
5. Remove the clutch spreader tool from driven clutch.
6. Rotate / spin the driven clutch and belt approximately
5-7 times to properly seat the belt in the driven clutch.
7. Install the outer clutch cover and screws. Torque
screws to specification.
TORQUE
PVT Cover Screws:
35 in-lb (3 Nm)
PVT SYSTEM
