7.22
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

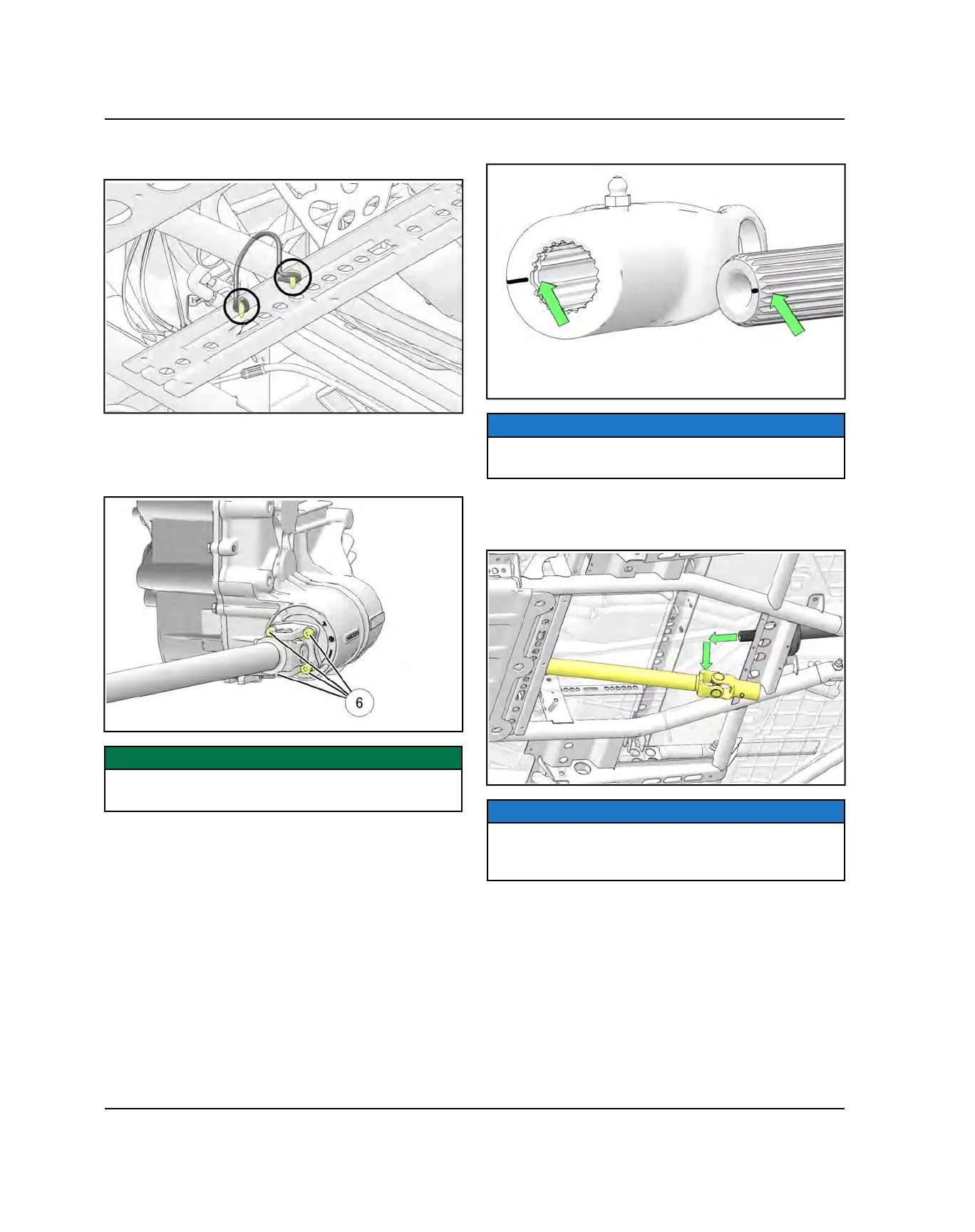

6. Remove the two fasteners retaining roll hoop to the
frame. Remove roll hoop.
7. Remove the four fasteners
y
retaining the rear prop
shaft to the transmission coupler. Discard the
fasteners. Move the prop shaft off the coupler
towards the outside of the vehicle.
IMPORTANT
The coupler fasteners have patch lock on the threads
and must be replaced any time they are removed.
8. Mark the front and rear prop shaft for reassembly.
NOTICE
The prop shafts have a master spline and will only go
on one way.
9. From under the vehicle, disengage the rear prop shaft
from the front prop shaft and remove the rear prop
shaft out the bottom of the vehicle.
NOTICE
Move the front prop shaft as far towards the front of the
vehicle as possible to allow the rear prop shaft yoke to
disengage from the splines on the front prop shaft.
10.Remove the front prop shaft and support bearing
isolator out the bottom of the vehicle, as an assembly.
FINAL DRIVE
