Bypass internal body assembly

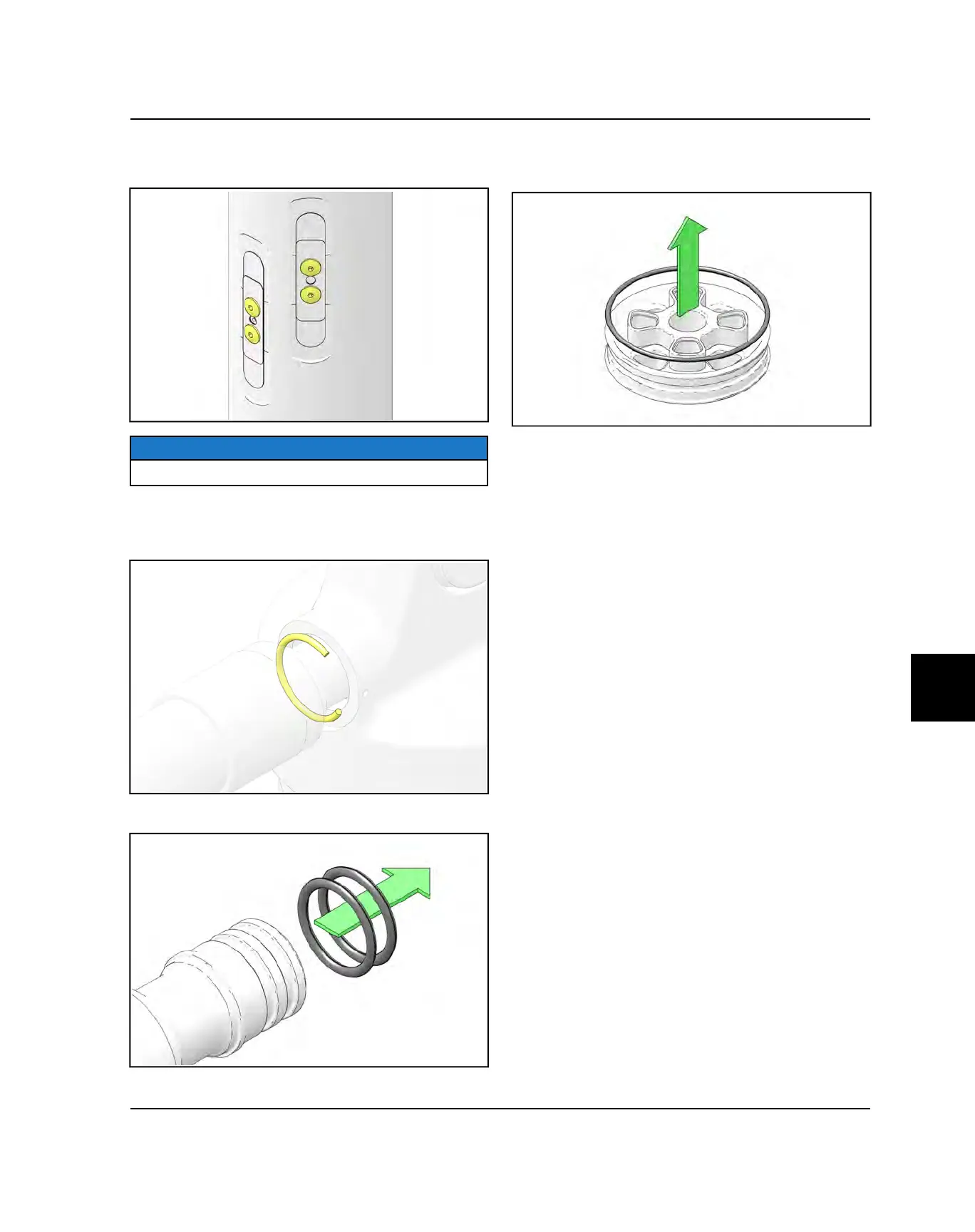

37.Remove screws using a 5/64" hex wrench.
NOTE
Observe location, size and thickness of bypass valves.
38.To remove the remote hose assembly, de-pressurize
reservoir, push hose in and remove retaining ring with
a small pick.
39.Remove hose o-rings.
40.Pistons are equipped with an energizing o-ring under
piston bearing. Clean the surface with contact
cleaner.
