11
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
11.27

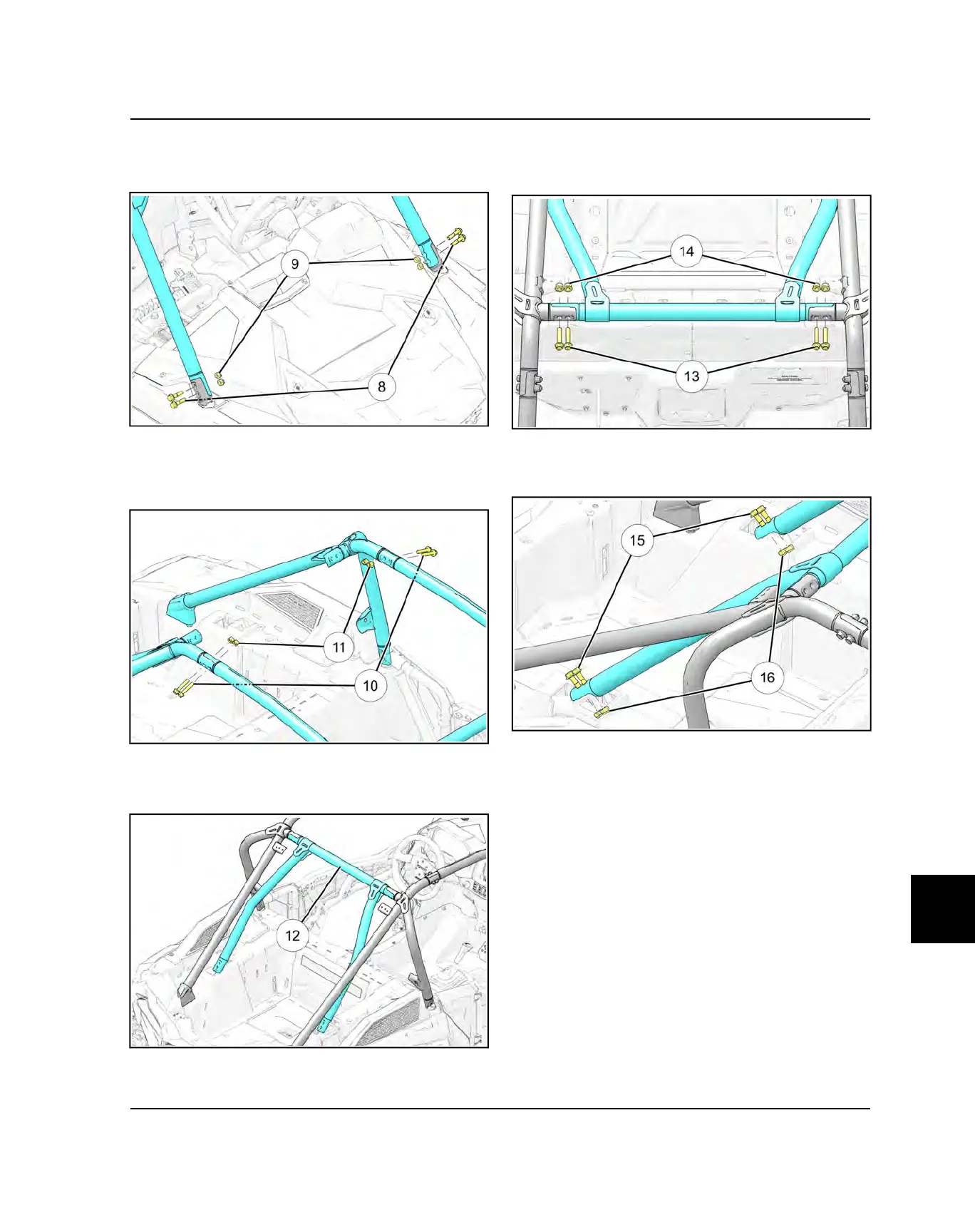

8. Loosely install M10 x 1.5 x 45 fasteners
i
(PN
7519906) and M10 x 1.5 Nyloc nuts
o
(PN 7547746)
into the A-Pillar mounts.
9. Loosely install M10 x 1.5 x 55 fasteners
a
(PN
7520212) and M10 x 1.5 flanged Nyloc nuts
s
(PN
7520117) to secure front ROPS assembly to rear
ROPS assemblies.
10.Install the rear ROPS assembly
d
onto the vehicle;
align with C-Pillar mounts and rear ROPS mounting
points.
11. Loosely install M10 x 1.5 x 55 fasteners
f
(PN
7520212) and M10 x 1.5 flanged Nyloc nuts
g
(PN
7520117) into the rear ROPS mounting points.
12.Loosely install M10 x 1.5 x 45 fasteners
h
(PN
7519906) and M10 x 1.5 Nyloc nuts
j
(PN 7547746)
into C-Pillar mounts.
BODY / FRAME
