12.32
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

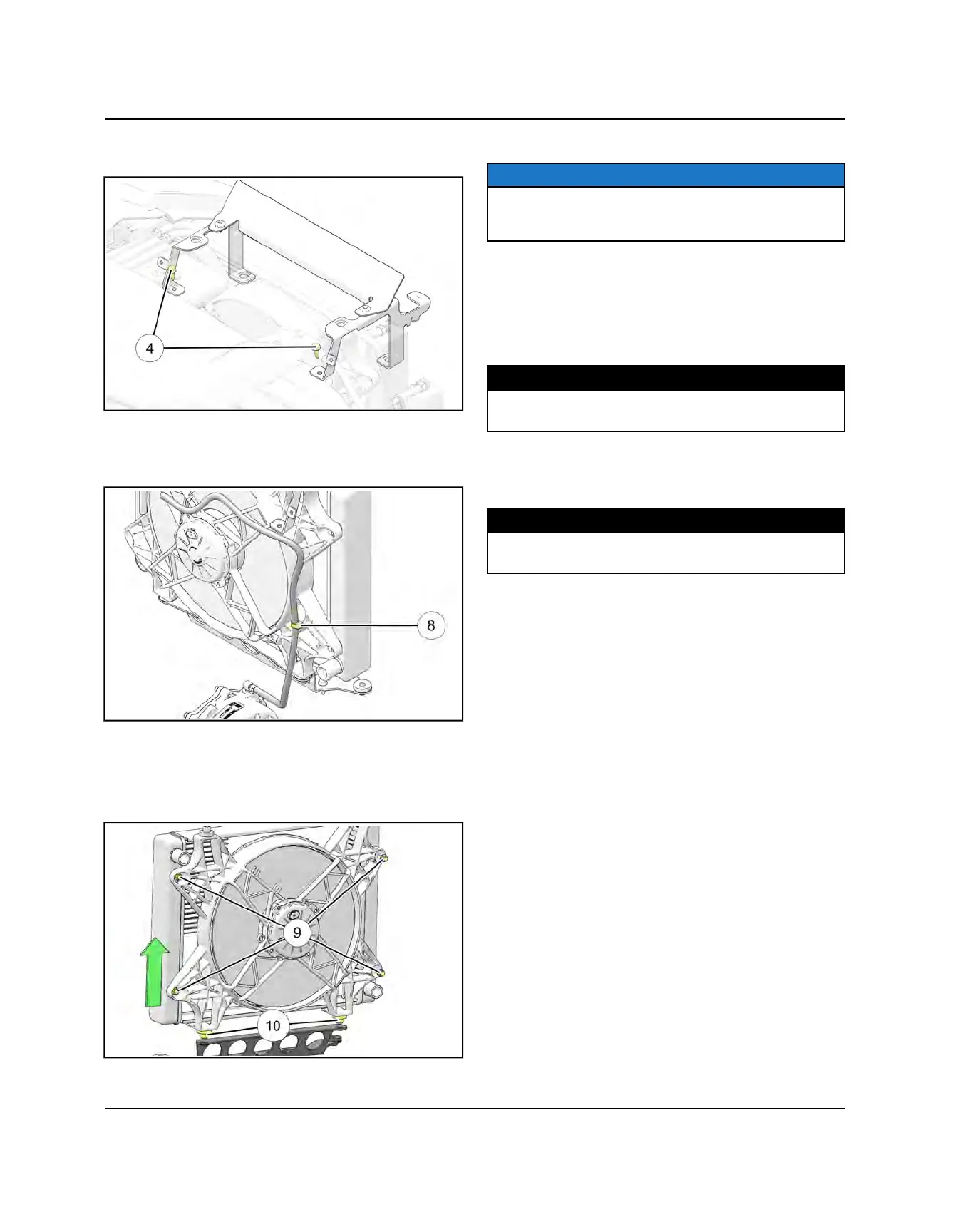

5. Remove the two fasteners
r
retaining the upper
radiator bracket.
6. Disconnect the fan harness.
7. Disconnect the front gearcase breather hose
i
from
the fan shroud.
8. Remove the four fasteners
o
retaining the fan to the
radiator. Lift the radiator up slightly to allow the fan
shroud to be removed from the lower bracket and the
bottom of the radiator. Remove the fan assembly out
the top of the vehicle.
9. Install the new fan into the chassis.
NOTE
The radiator should rest of the lower fan shroud mount
points and the lower mount grommets should be secure
in the lower bracket.
10.Connect the front gearcase breather hose to the fan
shroud.
11. Connect the fan harness.
12.Install the two fasteners retaining the upper radiator
bracket. Torque fasteners to specification.
TORQUE
Radiator Bracket Fasteners:
8 ft-lb (11 Nm)
13.Install the two fasteners retaining the voltage
regulator bracket to the chassis. Torque fasteners to
specification.
TORQUE
Voltage Regulator Bracket Fasteners:
8 ft-lb (11 Nm)
14.Install zip ties on both sides retaining the headlight
harnesses.
15.Connect the front headlight harnesses on both sides
and connect the two voltage regulator harness
connections.
16.Install the hood panel.
ELECTRICAL
