Understanding Barcodes 6-15
22 June 2004

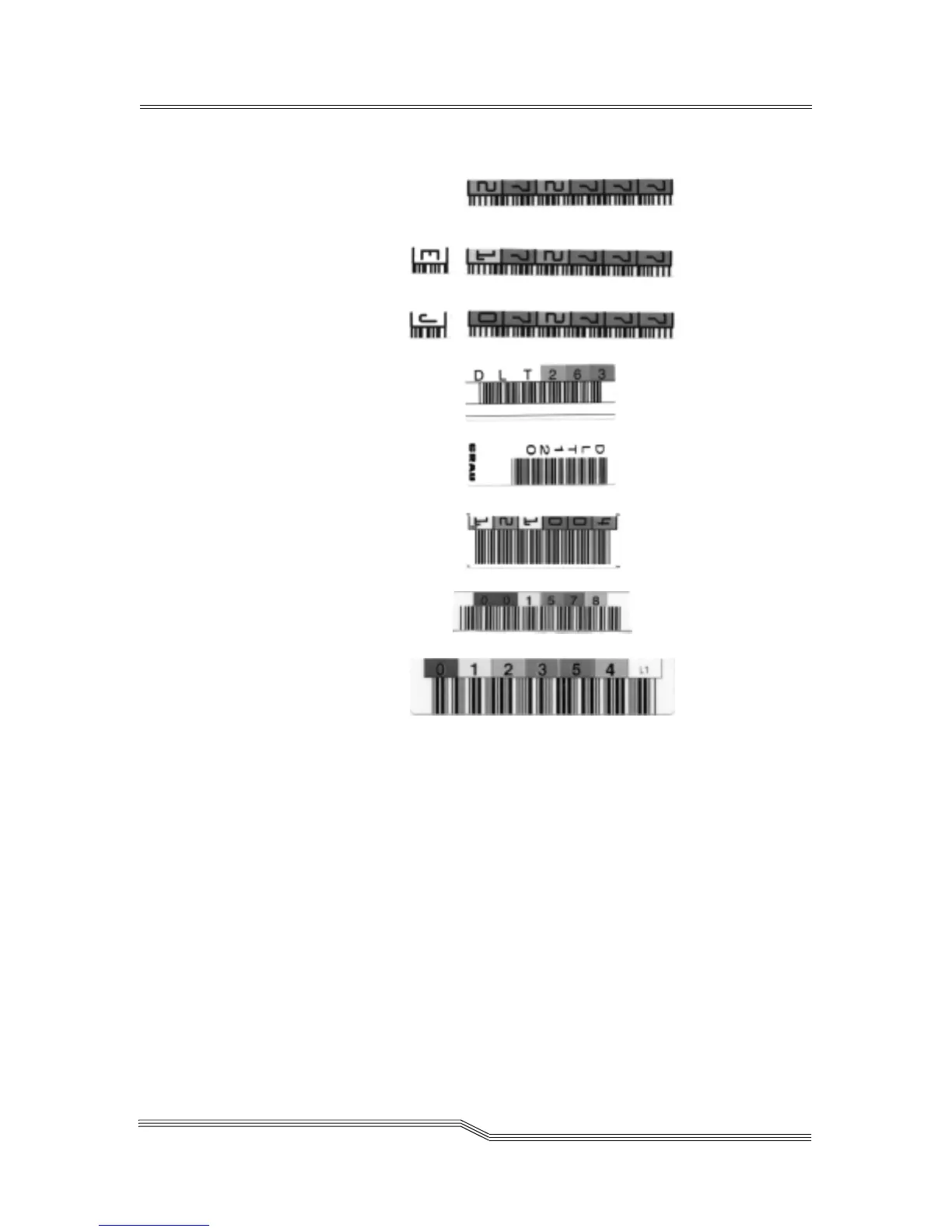

Figure 6-2 Barcode Label Examples
The numeric listing above each label type identifies the
restriction associated with the label.
1 This is a six character Tri-Optic
forward printed label for a
half-inch cartridge. This label
can be used only when media
ID is disabled.
1
2
3
4
5
6
7
8
Apply the label so that
the characters are on top and
the barcode is on the bottom.
