CALCulate<n>:LIMit<li>:ACPower:ACHannel[:RELative] on page 761
CALCulate<n>:LIMit<li>:ACPower:ALTernate<ch>:ABSolute:STATe
on page 763
CALCulate<n>:LIMit<li>:ACPower:ALTernate<ch>:ABSolute on page 763
CALCulate<n>:LIMit<li>:ACPower:ALTernate<ch>[:RELative]:STATe
on page 765
CALCulate<n>:LIMit<li>:ACPower:ALTernate<ch>[:RELative]
on page 764
CALCulate<n>:LIMit<li>:ACPower:ACHannel:RESult? on page 762
7.3.5.4 MSR Gap Channel Setup
Access: "Overview" > "Select Measurement" > "Channel Power ACLR" > "CP / ACLR
Standard" > "Standard" : "Multi-Standard Radio" > "CP / ACLR Config" > "Gap Chan-
nels" tab

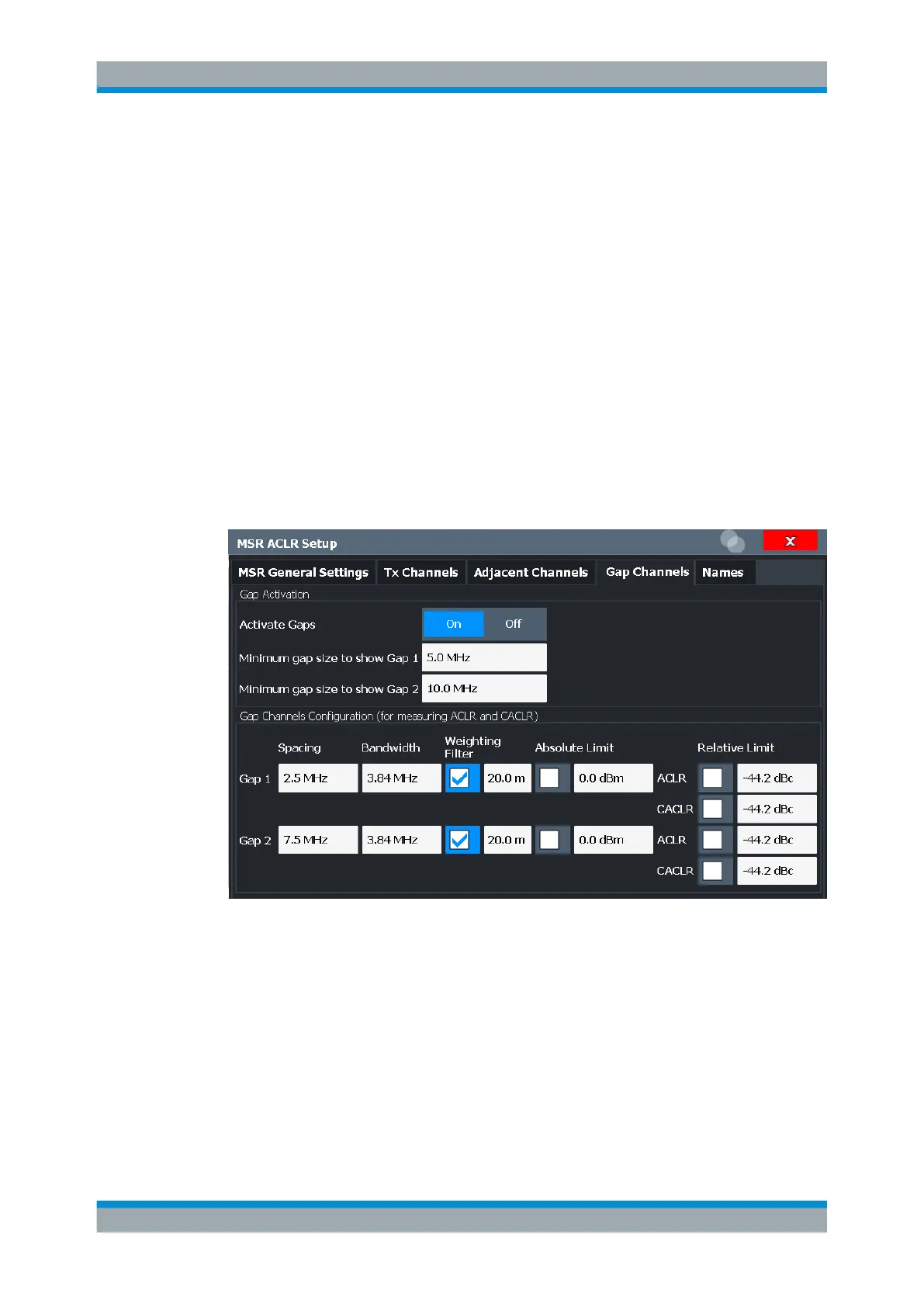

The "Gap Channels" tab provides all the channel settings to configure adjacent and
gap channels in MSR ACLR measurements.
For details on MSR signals, see Chapter 7.3.3.4, "Measurement on Multi-Standard
Radio (MSR) Signals", on page 153.
For details on setting up channels, see Chapter 7.3.6.3, "How to Configure an MSR
ACLR Measurement", on page 183.
Activate Gaps .............................................................................................................179
Minimum gap size to show Gap 1 / Minimum gap size to show Gap 2 ......................179
Gap Channel Definition ..............................................................................................179
└ Gap Channel Spacing ..................................................................................179
