R&S FSV3000 Series - Page 414

Common Analysis and Display Functions
R&S
®
FSVA3000/ R&S
®
FSV3000
414User Manual 1178.8520.02 ─ 01

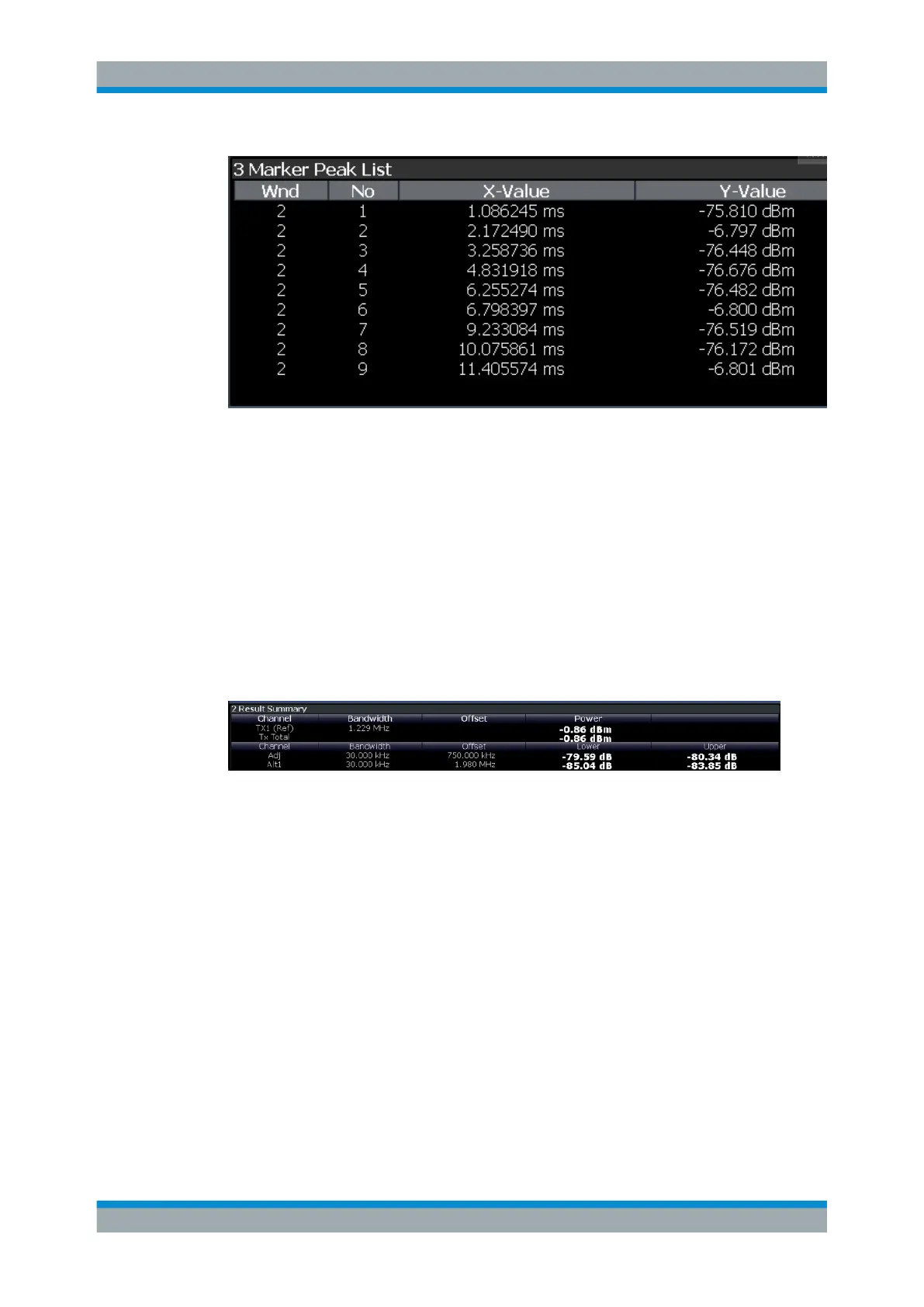

Tip: To navigate within long marker peak lists, simply scroll through the entries with
your finger on the touchscreen.
Remote command:
LAY:ADD? '1',RIGH, PEAK, see LAYout:ADD[:WINDow]? on page 876
Results:
CALCulate<n>:MARKer<m>:X on page 987
CALCulate<n>:MARKer<m>:Y on page 1000
Result Summary
Result summaries provide the results of specific measurement functions in a table for
numerical evaluation. The contents of the result summary vary depending on the
selected measurement function. See the description of the individual measurement
functions for details.
Remote command:
LAY:ADD? '1',RIGH, RSUM, see LAYout:ADD[:WINDow]? on page 876
Spectrogram
A spectrogram shows how the spectral density of a signal varies over time. The x-axis
shows the frequency or sweep time, the y-axis shows the measurement time. A third
dimension, the power level, is indicated by different colors. Thus you can see how the
strength of the signal varies over time for different frequencies.
The spectrogram display consists of two diagrams: the standard spectrum result dis-
play (upper diagram) and the spectrogram result display (lower diagram).
For details see Chapter 9.5.2.1, "Working with Spectrograms", on page 498.
Remote command:
LAY:ADD? '1',RIGH, SGR, see LAYout:ADD[:WINDow]? on page 876
Result Display Configuration
