R&S FSV3000 Series - Page 508

Common Analysis and Display Functions
R&S
®
FSVA3000/ R&S
®
FSV3000
508User Manual 1178.8520.02 ─ 01
State............................................................................................................................508
3D Spectrogram State.................................................................................................508
Select Frame...............................................................................................................509
History Depth ............................................................................................................. 509
3-D Display Depth.......................................................................................................509
Time Stamp ................................................................................................................509
Color Mapping ............................................................................................................509
Continuous Sweep / Run Cont ...................................................................................509
Single Sweep / Run Single .........................................................................................510
Clear Spectrogram .....................................................................................................510

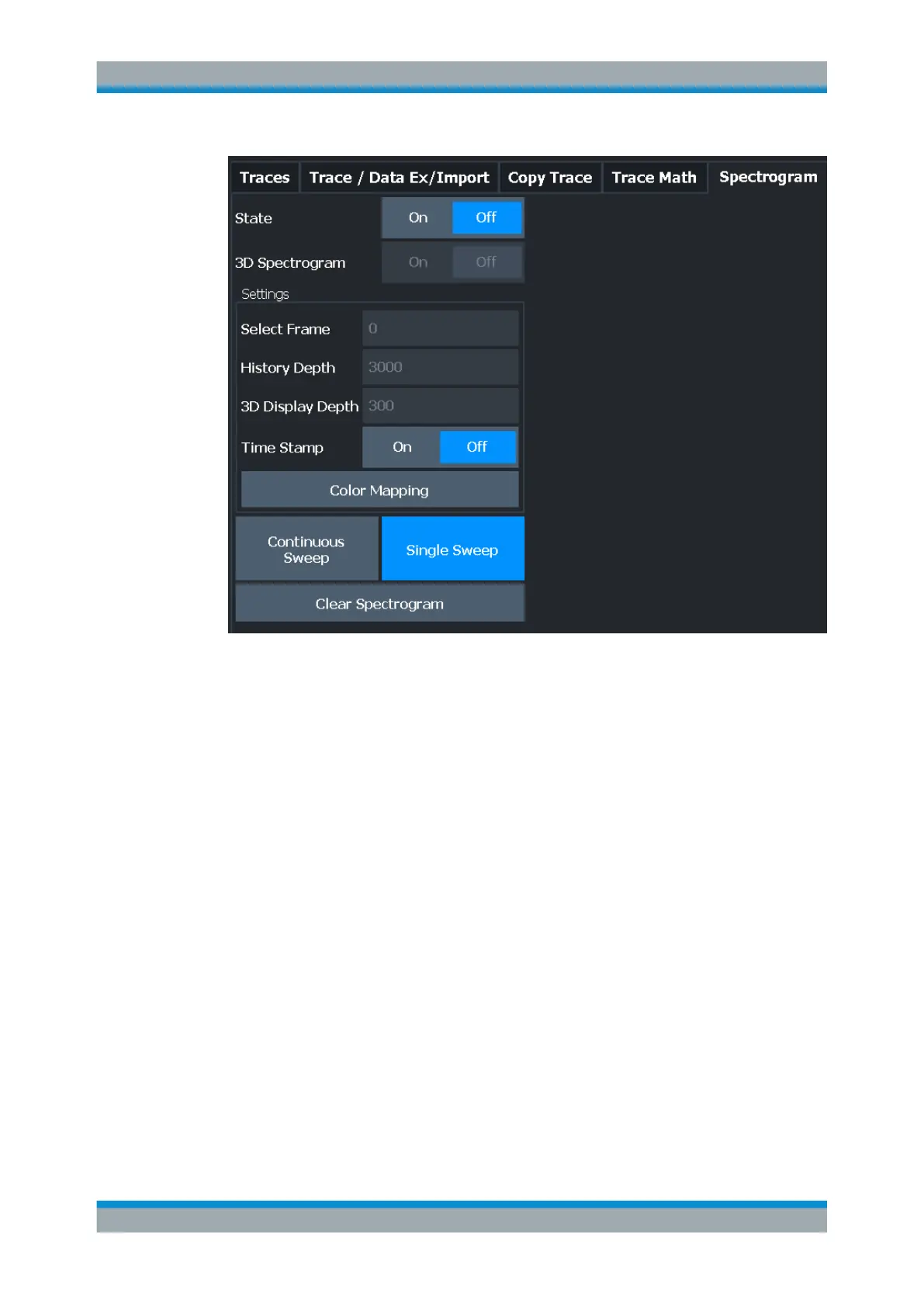

State
Activates and deactivates a Spectrogram subwindow.
"Off"
Closes the Spectrogram subwindow.
Remote command:
CALCulate<n>:SPECtrogram:LAYout on page 968
3D Spectrogram State
Activates and deactivates a 3-dimensional spectrogram. As opposed to the common 2-
dimensional spectrogram, the power is not only indicated by a color mapping, but also
in a third dimension, the z-axis.
For details see "Three-Dimensional Spectrograms" on page 502.
Trace Configuration
